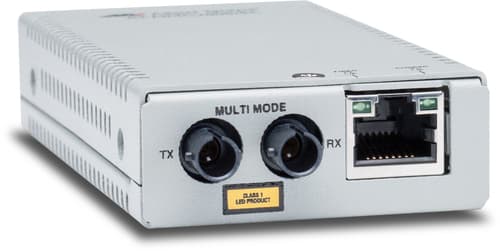

Allied Telesis AT MMC2000/ST - Fibre media converter - 1GbE - 1000Base-T, 100Base-TX, 10Base-T, 1000Base-SX - RJ-45 / ST multi-mode - up to 550 m - 850 nm - TAA Compliant
Thumbnail 0

Allied Telesis AT MMC2000/ST - Fibre media converter - 1GbE - 1000Base-T, 100Base-TX, 10Base-T, 1000Base-SX - RJ-45 / ST multi-mode - up to 550 m - 850 nm - TAA Compliant

Manuf P/N: AT-MMC2000/ST-960
APAXON#: 5542552
EAN: 767035218625
Allied Telesis AT MMC2000/ST - Fibre media converter - 1GbE - 1000Base-T, 100Base-TX, 10Base-T, 1000Base-SX - RJ-45 / ST multi-mode - up to 550 m - 850 nm - TAA Compliant
  • Wired
  • 1000 Mbit/s 500 m 850 nm
  • 1000BASE‑SX
  • Ethernet LAN (RJ-45) ports: 1 DC-in jack
  • Multi-mode Fiber ports quantity: 2 ST 50/125,62.5/125 µm
  • Grey
UK Stock0
ConditionNew
Price £ 130.96
Price inc. VAT
£ 157.15
Quantity
|

Sales & Technical Enquiries

Product Summary

Allied Telesis AT-MMC2000/ST-960 network media converter 1000 Mbit/s 850 nm Multi-mode Grey

Extended Specification

Network
Maximum data transfer rate
1000 Mbit/s
Converter input interface
10Base-T, 100Base-TX, 1000Base-T
Converter output interface
1000Base-SX
Networking standards
IEEE 802.1Q
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Fiber ethernet cabling technology
1000BASE‑SX
Jumbo frames support
Yes
Jumbo frames
10000
VLAN support
Yes
Auto MDI/MDI-X
Yes
Store-and-forward
Yes
Duplex system
Full
Performance
Maximum transfer distance
500 m
Wavelength
850 nm
Fiber mode structure
Multi-mode
Fiber cable diameters supported (core/cladding)
50/125,62.5/125 µm
Tx power (min)
-9.5 dBmW
Tx power (max)
4 dBmW
Rx power (min)
-17 dBmW
Rx power (max)
-3 dBmW
Features
Internal
No
LED indicators
LAN, Power, System
Product colour
Grey
Ports & interfaces
Fiber optic connector
ST
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
2
DC-in jack
Yes
Power
Input voltage
12 V
Input current
0.14 A
Output voltage
0.14 V
Power consumption (typical)
1.7 W
Power over Ethernet (PoE)
Yes
Weight & dimensions
Width
549 mm
Depth
101.6 mm
Height
21.8 mm
Weight
170 g
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-30 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3048 m
Packaging content
User guide
Yes
Manual
Yes
Quick installation guide
Yes
Certificates
Safety
FCC Class A, EN55022 Class A, CISPR 22 Class A, C-TICK, VCCI
Certification
CE, EN55024, EN61000-3-2, EN61000-3-3
Logistics data
Harmonized System (HS) code
85176990
