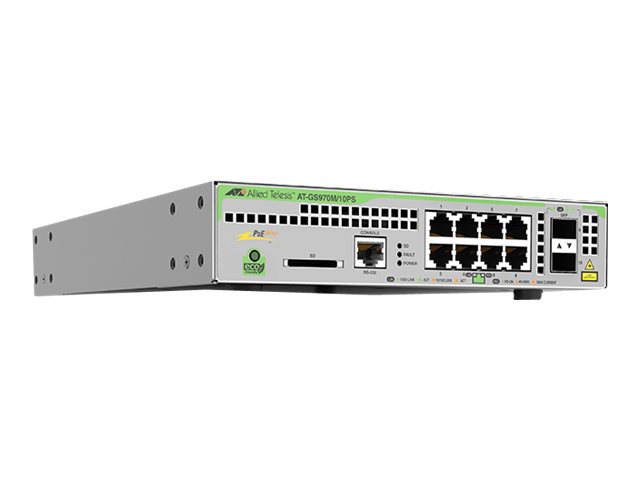

Allied Telesis CentreCOM AT-GS970M/10PS

Name: Allied Telesis CentreCOM AT-GS970M/10PS
Brand: ALLIED TELESIS
SKU: AT-GS970M/10PS-30
Price: 443.27 GBP
Availability: OutOfStock

Manuf P/N: AT-GS970M/10PS-30

APAXON#: 8986841

EAN: 767035211558

Allied Telesis CentreCOM AT-GS970M/10PS
Switch
L3
Managed
8 x 10/100/1000 (PoE+) + 2 x SFP (mini-GBIC) (uplink)
desktop
PoE+
Weight: 3.10 KG

Eco-friendly for reduced running costs
Network Access Control (NAC) for edge security
Ethernet Protection Switched Ring (EPSR) enables resilient high-speed ring-based networks
Static routing and RIP support Layer 3 environments

UK Stock0

ConditionNew

Price £ 443.27

Price inc. VAT

£ 531.92

Quantity

Notify me when available.

Sales & Technical Enquiries

Phone: 0161 464 9941Email: sales@apaxon.co.uk

Product Summary

The CentreCOM GS970M series of Layer 3 switches provide high performance with Gigabit to the desktop, the ability to connect and power endpoints, and lower management costs - a high value network edge solution from Allied Telesis.

Extended Specification

Management features

Switch type

Managed

Switch layer

Quality of Service (QoS) support

Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

10G Ethernet (100/1000/10000)

SFP module slots quantity

Network

Networking standards

IEEE 802.2, IEEE 802.3

10G support

Yes

Port mirroring

Yes

Full duplex

Yes

IP routing

Yes

Flow control support

Yes

Spanning tree protocol

Yes

VLAN support

Yes

Number of VLANs

2048

Data transmission

MAC address table

16000 entries

Switching capacity

20 Gbit/s

Latency (10-100 Mbps)

7.8 µs

Latency (1 Gbps)

3.4 µs

Jumbo frames support

Yes

Packet buffer memory

1.5 MB

Security

DHCP features

DHCP client

Access Control List (ACL)

Yes

IGMP snooping

Yes

SSH/SSL support

Yes

Loop protection

Yes

BPDU filtering/protection

Yes

Multicast features

Multicast support

Yes

Design

Rack mounting

Yes

Product colour

Grey

Performance

Internal memory

256 MB

Flash memory

64 MB

Noise level

33 dB

Power

Voltage Required

AC 120/230 V

AC input frequency

50 - 60 Hz

Power over Ethernet (PoE)

Yes

Power over Ethernet plus (PoE+) ports quantity

Total Power over Ethernet (PoE) budget

124 W

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-25 - 70 °C

Operating relative humidity (H-H)

5 - 90%

Storage relative humidity (H-H)

5 - 95%

Operating altitude

0 - 3000 m

Heat dissipation

55 BTU/h

Weight & dimensions

Width

210 mm

Depth

275 mm

Height

42.5 mm

Weight

2.1 kg

Packaging data

Package width

430 mm

Package depth

360 mm

Package height

150 mm

Package weight

3.45 kg

General

Enclosure Type

Desktop

Subtype

Gigabit Ethernet

Status Indicators

Status

Authentication Method

RADIUS, TACACS+, Extensible Authentication Protocol (EAP)

Device Type

Switch - 10 ports - L3 - Managed

Performance

Switching fabric bandwidth: 20 Gbps, Forwarding performance: 14.9 Mpps

Capacity

Priority queues: 8

Routing Protocol

RIP, RIP-2, IGMPv2, IGMP, IGMPv3, static IPv6 routing, MLDv2, MLD, CIDR

Remote Management Protocol

SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI, SNMP 6, SSH 6

Encryption Algorithm

DES, Triple DES, RSA, MD5, TLS, SHA-1, SSL 2.0, PEAP, TTLS, DSA, ECDSA, 128-bit AES, 192-bit AES, 256-bit AES, 256-bit SHA-2, 384-bit SHA-2, 512-bit SHA-2, RNG, 224-bit SHA-2

Built-in Devices

SD card reader, SDHC card reader

Ports

8 x 10/100/1000 (PoE+) + 2 x SFP (mini-GBIC) (uplink)

Features

Flow control, DHCP support, auto-negotiation, BOOTP support, ARP support, IGMP snooping, Syslog support, port mirroring, DiffServ support, full duplex mode, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, DAI, PVST+, STP Root Guard, UDLD, fanless, LLDP support, LACP, SNMP trap, Energy Efficient Ethernet, MIB, NAC, loop prevention, 802.1x authentication, 1.5MB packet buffer, IP source guard, EPSRing, BPDU, ICMP, CPP, SCP, AMF, DDM, NTP, AAA

Disclaimers

Product data is provided by CNET, we do not warrant the accuracy and completeness of the material contained in this data sheet
