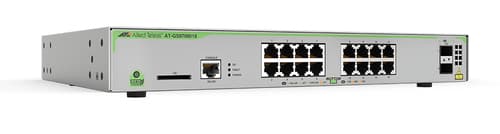

Allied Telesis CentreCOM AT-GS970M/18 - Switch - L3 - Managed - 16 x 10/100/1000 + 2 x SFP (mini-GBIC) (uplink) - desktop, rack-mountable
Manuf P/N: AT-GS970M/18-30
APAXON#: 8986842
EAN: 767035211404
Allied Telesis CentreCOM AT-GS970M/18 - Switch - L3 - Managed - 16 x 10/100/1000 + 2 x SFP (mini-GBIC) (uplink) - desktop, rack-mountable
- Managed L3 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 16 Console port: RS-232
- 10BASE-T, 100BASE-T, 1000BASE-T
- MAC address table: 16000 entries Switching capacity: 36 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting
UK Stock0
ConditionNew
Price £ 423.12
Price inc. VAT
£ 507.74
Quantity
|
Sales & Technical Enquiries
Phone: 0161 464 9941Email: sales@apaxon.co.uk
Similar Products
Allied Telesis CentreCOM AT-GS970M/18 - Switch - L3 - Managed - 16 x 10/100/1000 + 2 x SFP (mini-GBIC) (uplink) - desktop, rack-mountable
Your Choice
—
—
—
—
Stock0
£423.12
Product Summary
Allied Telesis AT-GS970M/18-30 network switch Managed L3 Gigabit Ethernet (10/100/1000) 1U Grey
Extended Specification
Management features
Switch type
Managed
Switch layer
L3
Quality of Service (QoS) support
Yes
Web-based management
Yes
Traffic classification
Yes
ARP inspection
Yes
System event log
Yes
MIB support
SNMP MIB
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Gigabit Ethernet (copper) ports quantity
16
Combo SFP ports quantity
2
Fiber optic connector
SFP
Console port
RS-232
Compatible memory cards
SD, SDHC
Network
Networking standards
IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
No
Copper ethernet cabling technology
10BASE-T, 100BASE-T, 1000BASE-T
Port mirroring
Yes
Full duplex
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Spanning tree protocol
Yes
Ethernet Ring Protection Switching (ERPS)
Yes
Fast leave
Yes
VLAN support
Yes
Virtual LAN features
Private VLAN, Voice VLAN, Tagged VLAN, Protocol-based VLAN, Port-based VLAN
Number of VLANs
4094
Optical fiber
Fiber ethernet cabling technology
100BASE-X, 1000BASE-X
Data transmission
MAC address table
16000 entries
Switching capacity
36 Gbit/s
Forwarding rate
26.8 Mpps
Latency (10-100 Mbps)
7.9 µs
Latency (1 Gbps)
3.4 µs
Static route
Yes
Jumbo frames support
Yes
Jumbo frames
10000
Packet buffer memory
1.5 MB
Security
DHCP features
DHCP snooping, DHCP client
Access Control List (ACL)
Yes
IGMP snooping
Yes
Security algorithms
3DES, AES, MD5, PEAP, RSA, SHA-1, SHA-2, SSH, SSH-2, SSL/TLS, TTLS
MAC address filtering
Yes
SSH/SSL support
Yes
Loop protection
Yes
BPDU filtering/protection
Yes
Authentication
MAC-based authentication, Port-based authentication, Web-based authentication
Root protection
Yes
Password protection
Yes
Authentication type
AAA, IEEE 802.1x, Network Access Control (NAC), RADIUS
Neighbor discovery snooping
Yes
Multicast features
Multicast support
Yes
Protocols
Routing protocols
RIP, RIP-2
Design
Rack mounting
Yes
Form factor
1U
Product colour
Grey
LED indicators
Yes
Wall mountable
Yes
Safety
EN60950-1 (TUV), UL 60950- 1(cULus), EN60825-1
Performance
Memory type
DDR-SDRAM
Internal memory
512 MB
Flash memory
64 MB
Noise level
29 dB
Telnet
Yes
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
2.4 A
Power consumption (max)
18 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-25 - 70 °C
Operating relative humidity (H-H)
5 - 90%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 4000 m
Heat dissipation
61 BTU/h
Weight & dimensions
Width
341 mm
Depth
231 mm
Height
44 mm
Weight
2.4 kg
Packaging data
Included power plug types
UK
Package width
430 mm
Package depth
360 mm
Package height
150 mm
Package weight
4 kg
Certificates
Certification
FCC Class A, EN55022 Class A, EN61000-3-2, EN61000-3-3, VCCI Class A, CISPR Class A
Logistics data
Country of origin
China
