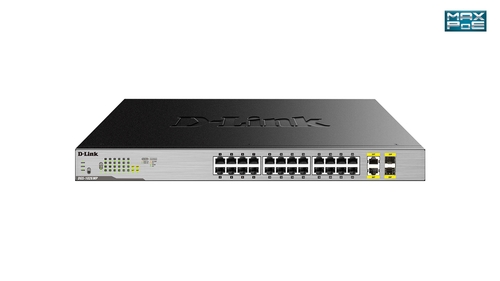

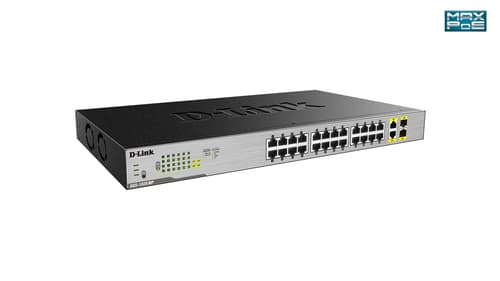

D-Link DGS 1026MP
Manuf P/N: DGS-1026MP
APAXON#: 3917352
EAN: 790069426667
D-Link DGS 1026MP
Switch
unmanaged
24 x 10/100/1000 (PoE) + 2 x combo Gigabit SFP
rack-mountable, desktop
PoE (370 W)
Weight: 4.48 KG
Switch
unmanaged
24 x 10/100/1000 (PoE) + 2 x combo Gigabit SFP
rack-mountable, desktop
PoE (370 W)
Weight: 4.48 KG
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity: 24
- MAC address table: 8192 entries Switching capacity: 52 Gbit/s
- Rack mounting
- AC Power supply included Power over Ethernet (PoE)
UK Stock0
ConditionNew
Price £ 261.76
Price inc. VAT
£ 314.11
Quantity
|
Sales & Technical Enquiries
Phone: 0161 464 9941Email: sales@apaxon.co.uk
Similar Products
Product Summary
The D-Link DGS-1026MP 26-Port Gigabit Max PoE Switch enables users to easily connect and power PoE-capable devices such as wireless access points (APs), IP cameras, and IP phones. Each of the 24 PoE ports can supply up to 30 W, with a total PoE budget of 370 W.
Extended Specification
Management features
Switch type
Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity
2
Network
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
No
Auto MDI/MDI-X
Yes
Data transmission
MAC address table
8192 entries
Switching capacity
52 Gbit/s
Throughput
38.69 Mpps
Forwarding rate
38.69 Mpps
Store-and-forward
Yes
Packet buffer memory
0.512 MB
MAC address table
8192 entries entries
Switching capacity
52 Gbit/s Gbit/s
Throughput
38.69 Mpps Mpps
Forwarding rate
38.69 Mpps Mpps
Packet buffer memory
0.512 MB MB
Design
Rack mounting
Yes
Product colour
Black, Grey
LED indicators
Activity, Link, PoE, Power, Power fail, Speed
Number of fans
2 fan(s)
Safety
UL/CSA 60950-1, EN 60950-1, IEC 60950-1
Number of fans
2 fan(s) fan(s)
Performance
Buffer size
512 KB
Mean time between failures (MTBF)
205975 h
Buffer size
512 KB KB
Mean time between failures (MTBF)
205975 h h
Power
Power source
AC
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (max)
444.1 W
AC input voltage
100 - 240 V V
AC input frequency
50/60 Hz Hz
Power consumption (max)
444.1 W W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
24
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
370 W
Total Power over Ethernet (PoE) budget
370 W W
Power over Ethernet (PoE) power per port
30 W W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
1515 BTU/h
Storage relative humidity (H-H)
5 - 90% %
Heat dissipation
1515 BTU/h BTU/h
Operating temperature (T-T)
0 - 50 °C °C
Storage temperature (T-T)
-40 - 70 °C °C
Operating relative humidity (H-H)
10 - 90% %
Weight & dimensions
Width
440 mm
Depth
250.4 mm
Height
44 mm
Weight
3.1 kg
Width
440 mm mm
Depth
250.4 mm mm
Height
44 mm mm
Weight
3.1 kg kg
Packaging data
Package width
388 mm
Package depth
506 mm
Package height
90 mm
Package weight
3.7 kg
Package depth
506 mm mm
Package height
90 mm mm
Package weight
3.7 kg kg
Package width
388 mm mm
Technical details
Shipping (inner) case height
41 cm
Shipping (inner) case width
20.5 cm
Shipping (inner) case length
52 cm
Shipping (inner) case net weight
8.39 kg
Products per shipping (inner) case
2 pc(s)
Pallet gross weight (air)
281.8 kg
Master (outer) cases per pallet (air)
30 pc(s)
Products per pallet (air)
60 pc(s)
Pallet gross length
110 cm
Pallet gross width
120 cm
Pallet height (air)
136.5 cm
Pallet gross weight (sea)
369.8 kg
Master (outer) cases per pallet (sea)
40 pc(s)
Products per pallet (sea)
80 pc(s)
Pallet height (sea)
177.5 cm
Shipping (inner) case gross weight
8.79 kg
Shipping (inner) case height
41 cm cm
Shipping (inner) case width
20.5 cm cm
Shipping (inner) case length
52 cm cm
Shipping (inner) case net weight
8.39 kg kg
Products per shipping (inner) case
2 pc(s) pc(s)
Pallet gross weight (air)
281.8 kg kg
Master (outer) cases per pallet (air)
30 pc(s) pc(s)
Products per pallet (air)
60 pc(s) pc(s)
Pallet gross length
110 cm cm
Pallet gross width
120 cm cm
Pallet height (air)
136.5 cm cm
Pallet gross weight (sea)
369.8 kg kg
Master (outer) cases per pallet (sea)
40 pc(s) pc(s)
Products per pallet (sea)
80 pc(s) pc(s)
Pallet height (sea)
177.5 cm cm
Shipping (inner) case gross weight
8.79 kg kg
Certificates
Compliance certificates
BSMI, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, VCCI
Certification
FCC Class A
CE
CCC
RoHS
VCCI
BSMI
RCM
Logistics data
Harmonized System (HS) code
85176990
General
Subtype
Gigabit Ethernet
MAC Address Table Size
8K entries
PoE Budget
370 W
Power Over Ethernet (PoE)
PoE
Device Type
Switch - 26 ports - unmanaged
Ports
24 x 10/100/1000 (PoE) + 2 x combo Gigabit SFP
Performance
Switching capacity: 52 Gbps Forwarding performance (64-byte packet size): 38.69 Mpps
Enclosure Type
Rack-mountable, desktop 1U
Features
Flow control, Energy Efficient Ethernet, auto-uplink (auto MDI/MDI-X), store and forward
Status Indicators
Fail, link/activity, PoE, port transmission speed, power
