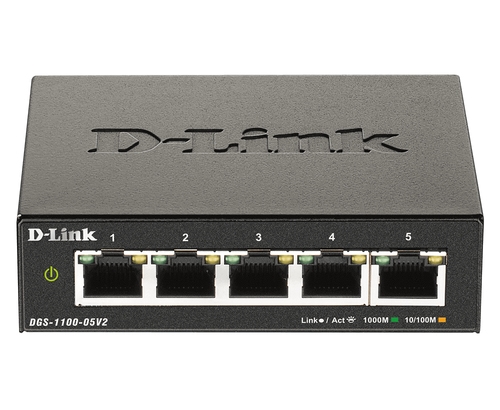

D-Link DGS 1100-05V2

Name: D-Link DGS 1100-05V2
Brand: D-Link
SKU: DGS-1100-05V2/B
Price: 28.16 GBP
Availability: OutOfStock

Manuf P/N: DGS-1100-05V2/B

APAXON#: 6277995

EAN: 790069453281

D-Link DGS 1100-05V2
Switch
smart
5 x 10/100/1000
desktop
AC 100/240 V
Weight: 0.56 KG

Managed L2 Web-based management
Quality of Service (QoS) support
Basic switching RJ-45 Ethernet ports quantity: 5
Fanless design for silent operation
Innovative D-Link Green energy saving features
Complete web interface for comprehensive switch management

UK Stock0

ConditionNew

Price £ 28.16

Price inc. VAT

£ 33.79

Quantity

Notify me when available.

Sales & Technical Enquiries

Phone: 0161 464 9941Email: sales@apaxon.co.uk

Product Summary

The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation (desktop models utilize Static Trunk). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities.

Extended Specification

Management features

Switch type

Managed

Switch layer

Quality of Service (QoS) support

Yes

Web-based management

Yes

Cloud-managed

Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Installed SFP modules quantity

Installed SFP+ modules quantity

Network

Copper ethernet cabling technology

1000BASE-T

Auto MDI/MDI-X

Yes

10G support

Data transmission

Switching capacity

10 Gbit/s

Forwarding rate

7.4 Mpps

Packet buffer memory

0.125 MB

MAC address table

2000 entries entries

Switching capacity

10 Gbit/s Gbit/s

Forwarding rate

7.4 Mpps Mpps

Jumbo frames support

Yes

Jumbo frames

9216

Packet buffer memory

1 MB MB

Design

Rack mounting

Product colour

Black

Reset button

Yes

Number of fans

0 fan(s)

Number of fans

0 fan(s) fan(s)

Performance

Noise level

0 dB

Fanless

Yes

Noise level

0 dB dB

Power

AC input voltage

100 - 240 V

DC input voltage

5 V

Input current

1 A

Power consumption (max)

3.42 W

Power source

AC input voltage

100 - 240 V V

AC input frequency

50/60 Hz Hz

DC input voltage

5 V V

Input current

1 A A

Power consumption (max)

3.42 W W

Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

0 - 90%

Storage relative humidity (H-H)

0 - 95%

Operating altitude

0 - 2000 m

Storage temperature (T-T)

-40 - 70 °C °C

Operating relative humidity (H-H)

0 - 90% %

Storage relative humidity (H-H)

0 - 95% %

Operating temperature (T-T)

0 - 40 °C °C

Operating altitude

0 - 2000 m m

Weight & dimensions

Width

100.5 mm

Depth

28 mm

Height

82 mm

Weight

230 g

Width

100.5 mm mm

Depth

28 mm mm

Height

82 mm mm

Weight

230 g g

Logistics data

Harmonized System (HS) code

85176990

General

Enclosure Type

Desktop

Flash Memory

2 MB

Subtype

Gigabit Ethernet

Encryption Algorithm

SSL

MAC Address Table Size

2K entries

Routing Protocol

IGMPv2, IGMP, IGMPv3

Ports

5 x 10/100/1000

Device Type

Switch - 5 ports - smart

Performance

Switching capacity: 10 Gbps Forwarding performance: 7.44 Mpps

Status Indicators

Power, status, link/activity/speed

Capacity

VLAN groups: 128 VLAN IDs: 4094 IGMP groups: 128

Remote Management Protocol

SNMP 2, ICMP

Features

Flow control, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, STP support, RSTP support, QoS, Cable Diagnostics Function, bandwidth control, fanless, LLDP support, Port Security, DHCP client, tagged VLAN, DSCP support, 1Mbit packet buffer, IGMP querier, Voice VLAN, VLAN management, VLAN group, EEE, WRR, HOL Blocking Prevention, loopback detection, port-based VLAN, port-based QoS, Unknown Storm Control, DNA support, Asymmetric VLAN
