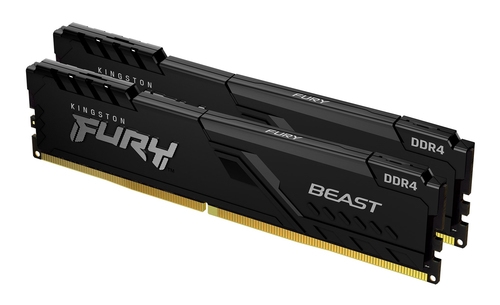

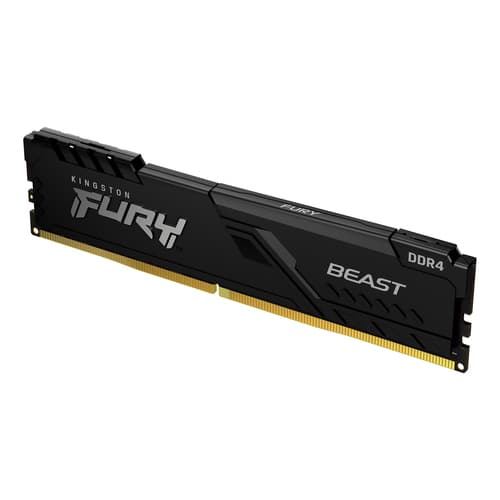

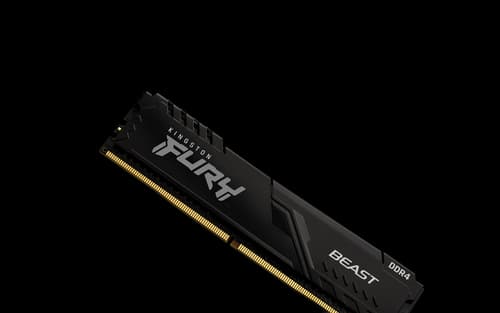

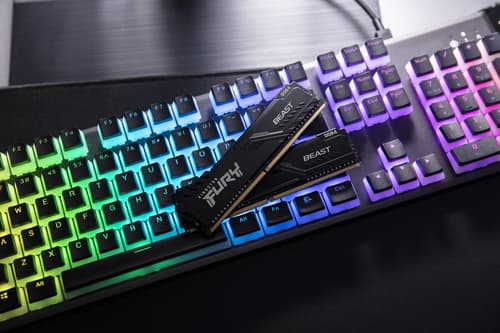

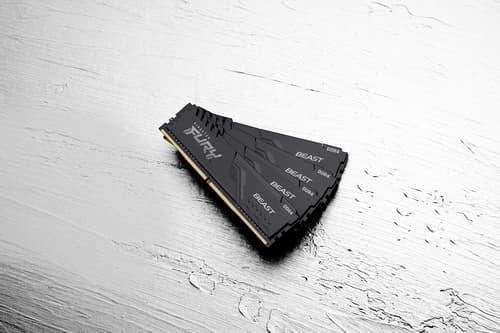

Kingston FURY Beast - DDR4 - kit - 16 GB: 2 x 8 GB - DIMM 288-pin
Thumbnail 0
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 5
Thumbnail 6
Thumbnail 7
Thumbnail 8
Thumbnail 9
Thumbnail 10
Thumbnail 11
Thumbnail 12
Thumbnail 13

Kingston FURY Beast - DDR4 - kit - 16 GB: 2 x 8 GB - DIMM 288-pin

Manuf P/N: KF432C16BBK2/16
APAXON#: 6783093
EAN: 740617319903
Kingston FURY Beast
DDR4
kit
16 GB: 2 x 8 GB
DIMM 288-pin
3200 MT/s / PC4-25600
CL16
1.35 V
unbuffered
non-ECC
black
Weight: 0.10 KG
  • Intel Extreme Memory Profile (XMP) 2.0
  • Cost-efficient, high-performance DDR4 upgrade
  • Intel® XMP Ready and XMP Certified
  • Speeds of up to 3600MT/s and kit capacity of up to 128GB
  • Ready for AMD Ryzen™
  • Low-profile heat spreader design
UK Stock0
ConditionNew
Price £ 88.24
Price inc. VAT
£ 105.89
Quantity
|

Sales & Technical Enquiries

Product Summary

Kingston FURY KF432C16BBK2/16 is a kit of two 1G x 64-bit (8 GB) DDR4-3200 CL16 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 1G x 8-bit FBGA components per module. Each module kit supports Intel Extreme Memory Profiles (Intel XMP) 2.0. Total kit capacity is 16 GB. Each module has been tested to run at DDR4-3200 at a low latency timing of 16-18-18 at 1.35 V. The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2 V. Each 288-pin DIMM uses gold contact fingers.

Extended Specification

General
Capacity
16 GB
Features
Memory layout (modules x size)
2 x 8 GB
Memory data transfer rate
3200 MT/s
Component for
PC
ECC
No
CAS latency
16
Memory voltage
1.2 V
Module configuration
1024M x 64
Row cycle time
45.75 ns
Refresh row cycle time
350 ns
Row active time
32 ns
Intel Extreme Memory Profile (XMP)
Yes
Intel Extreme Memory Profile (XMP) version
2.0
Programming power voltage (VPP)
2.5 V
Country of origin
China, Taiwan
Cooling type
Heatsink
Lead plating
Gold
Internal memory
16 GB GB
Memory layout (modules x size)
2 x 8 GB GB
Memory data transfer rate
3200 MT/s MT/s
Memory voltage
1.2 V V
Row cycle time
45.75 ns ns
Refresh row cycle time
350 ns ns
Row active time
32 ns ns
Programming power voltage (VPP)
2.5 V V
Memory
Technology
DDR4 SDRAM
Form Factor
288-pin DIMM
Speed
3200 MT/s (PC4-25600)
Operational conditions
Operating temperature (T-T)
0 - 85 °C
Storage temperature (T-T)
-55 - 100 °C
Operating temperature (T-T)
0 - 85 °C °C
Storage temperature (T-T)
-55 - 100 °C °C
Weight & dimensions
Width
7.2 mm
Depth
133.3 mm
Height
34.1 mm
Weight
68.34 g
Width
7.2 mm mm
Depth
133.3 mm mm
Height
34.1 mm mm
Weight
68.34 g g
Packaging data
Package width
95.2 mm
Package depth
14 mm
Package height
171.4 mm
Package weight
96.69 g
Package width
95.2 mm mm
Package depth
14 mm mm
Package height
171.4 mm mm
Package weight
96.69 g g
Logistics data
Master (outer) case width
203.2 mm
Master (outer) case length
311.1 mm
Master (outer) case height
101.6 mm
Harmonized System (HS) code
84733020
Master (outer) case gross weight
2.63 kg
Products per master (outer) case
25 pc(s)
Master (outer) case width
203.2 mm mm
Master (outer) case length
311.1 mm mm
Master (outer) case height
101.6 mm mm
Master (outer) case gross weight
2.63 kg kg
Products per master (outer) case
25 pc(s) pc(s)
Kingston FURY Beast - DDR4 - kit - 16 GB: 2 x 8 GB - DIMM 288-pin

Disclaimers

  • Some legacy chipsets/processors from Intel prior to 8th Gen have not been updated to support memory modules featuring DDR4 16Gbit density DRAM. Check with your system or motherboard manufacturer for an updated BIOS to support 16Gbit DRAM.
