4 Port 8K USB 3.0 Dual Display KVMP Swit
- Up to 7680 × 4320 @ 60 Hz, 5120 × 2880 @ 60 Hz and 4096 × 2160 @ 120 Hz

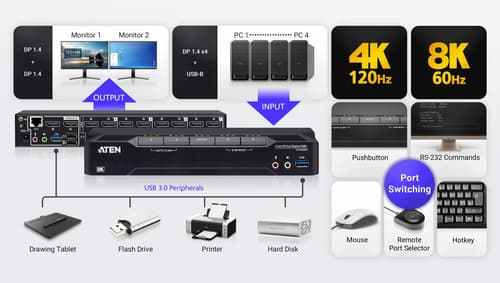

- Daisy-chainable quad-display control connecting two CS1944DPAs to manage up to four PCs and four displays with one keyboard and mouse

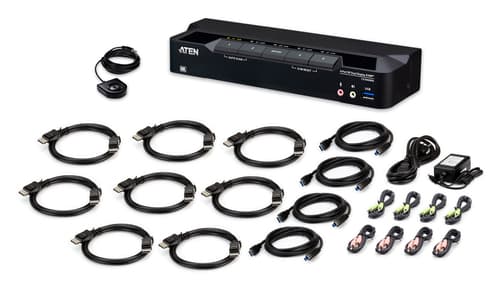

- All DisplayPort/USB cables and power adapter included for hassle-free installation Computer selection via pushbuttons, remote port selector, hotkeys, mouse, and RS-232 commands
Overview
ATEN 4-Port USB 3.0 8K DisplayPort Dual-Display KVMP™ Switch (Cables included), 7680 x 4320 pixels, 8K Ultra HD, 3.18 W, Black
Specifications
Design
- Rack mounting
- No
- LED indicators
- Yes
- Push button
- Yes
- Product colour
- Black
Power
- Input voltage
- 12 V V
- Power source
- DC
- Power consumption (typical)
- 3.18 W W
Ports & interfaces
- Keyboard port type
- USB
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
- 4
- Console USB ports quantity
- 2
- Console DisplayPorts ports quantity
- 1
- Number of microphone inputs
- 6
- Console ports
- 3.5mm headphone, DisplayPort, USB A
- DisplayPorts quantity
- 8
- Console RJ-45 ports quantity
- 1
- Number of computers controlled
- 4
- Mouse port type
- USB
- Video port type
- DisplayPort
- USB hub
- Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
- 4
- USB connector type
- USB Type-A, USB Type-B
- Headphone outputs
- 6
- DC-in jack
- Yes
Performance
- HD type
- 8K Ultra HD
- Maximum resolution
- 7680 x 4320 pixels pixels
- Scan interval
- 1,99 s s
- Maximum refresh rate
- 240 Hz Hz
- Video bandwidth
- 60 Hz Hz
Operational conditions
- Storage temperature (T-T)
- -20 - 60 °C °C
- Operating relative humidity (H-H)
- 0 - 80% %
- Storage relative humidity (H-H)
- 0 - 80% %
- Operating temperature (T-T)
- 0 - 50 °C °C
Weight & dimensions
- Width
- 71.8 mm mm
- Depth
- 260 mm mm
- Height
- 43 mm mm
- Weight
- 620 g g
Packaging content
- Quick installation guide
- Yes
Logistics data
- Country of origin
- Taiwan
- Harmonized System (HS) code
- 84718000
Display
- Built-in display
- No
