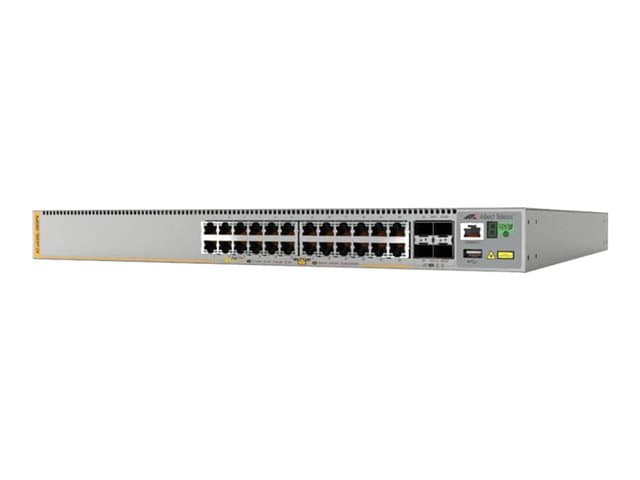

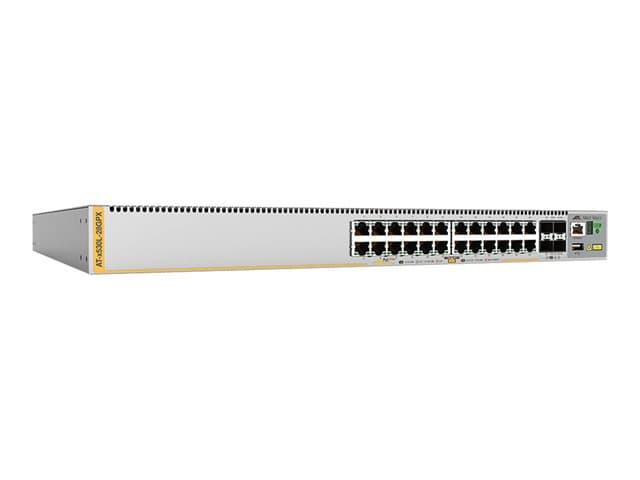

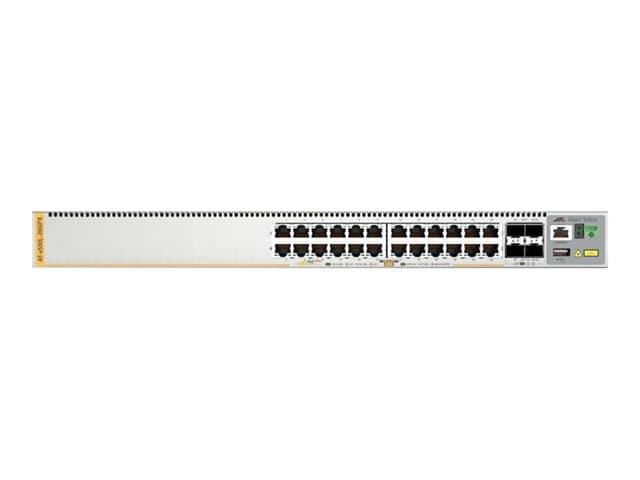

Allied Telesis AT x530L-28GPX

Name: Allied Telesis AT x530L-28GPX
Brand: ALLIED TELESIS
SKU: AT-X530L-28GPX-30
Price: 2462.25 GBP
Availability: OutOfStock

Manuf P/N: AT-X530L-28GPX-30

APAXON#: 8986991

EAN: 767035217086

Allied Telesis AT x530L-28GPX
Switch
L3
Managed
24 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
rack-mountable
PoE+ (740 W)
Weight: 8.78 KG

128 Gbps switching capacity for high-speed connectivity
Supports extensive Layer 3 routing protocols for advanced network configurations
24 PoE+ ports with a total PoE budget of 740 W to power connected devices
Stackable design with Virtual Chassis Stacking (VCStack) for scalability
Comprehensive security features including 802.1x authentication and encryption support

StockOut of Stock

ConditionNew

Quantity

Notify me when available

Sales & Technical

Phone: 0161 464 9941

Email: sales@apaxon.co.uk

Manufacturer Warranty

Manufacturer warranty applies. Warranty periods and service levels vary by brand and product type.

Apaxon® is an authorised reseller of ALLIED TELESIS. Warranty claims, repairs, replacements, and credits are fulfilled strictly in accordance with the manufacturer's terms and conditions.

Returns Policy

Business & Consumer Purchases

Orders placed for business use, resale, or onward supply are treated as Business-to-Business (B2B) transactions. B2B sales do not carry an automatic right of cancellation.

Nothing in this policy affects statutory consumer rights under UK law.

Consumer Cancellation (B2C Only)

Consumers may cancel within 14 days of delivery under the Consumer Contracts Regulations 2013.
Cancellation must be confirmed in writing within 14 days of delivery.
Goods must be returned within 14 days of cancellation.
Items must be unused beyond reasonable inspection and in resaleable condition.
Return shipping costs are the customer's responsibility.
Prepaid return labels are not provided for change-of-mind returns.
Refunds are processed after inspection and issued to the original payment method.

Faults & Delivery Issues

Transit damage or shortages must be reported within 48 hours of delivery.
Visible defects must be reported within 7 days of delivery.
Hidden faults must be reported within 7 days of discovery.
Returns require prior authorisation and a valid RMA reference.
Failure to report within these timeframes may affect eligibility for return or claim.

Business Returns (B2B)

Business customers do not have an automatic right to return non-faulty goods.

Supply chain authorisation
Restocking fees (typically 15–25%)
Inspection approval
Non-refundable outbound carriage

Return shipping is the responsibility of the buyer unless agreed otherwise.

Non-Returnable Items

Software, licences, activation keys, and digital products
Special-order or non-standard procurement items
Opened consumables
Items not in resaleable condition

Overview

The Allied Telesis x530L series are a high-performing and feature-rich choice for today's networks. AMF secure mode increases network security with management traffic encryption, authorization and monitoring. A secure network environment is guaranteed. The x530L series offers powerful control over network traffic types, secure management options, loop guard to protect against cabling mistakes, and tri-authentication for comprehensive access control. The x530L series was designed with reliability in mind, and guarantees continual delivery of essential services.

Main Specifications

Product Description: Allied Telesis AT x530L-28GPX - switch - 28 ports - Managed - rack-mountable
Device Type: Switch - 28 ports - L3 - Managed - stackable
Enclosure Type: Rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 24 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE): PoE+
PoE Budget: 740 W
Performance: Switching capacity: 128 Gbps ¦ Forwarding rate: 95.2 Mpps ¦ Stacking bandwidth: 40 Gbps ¦ Latency (10 Mbps): 29.91 ¦ Latency (100 Mbps): 6.06 ¦ Latency (1 Gbps): 3.98 ¦ Latency (10 Gbps): 1.63
Capacity: Virtual interfaces (VLANs): 4094 ¦ Packet buffer size: 3 MB ¦ OpenFlow flows: up to 1250
MAC Address Table Size: 16K entries
Jumbo Frame Support: 10KB
Routing Protocol: OSPF, RIP, BGP-4, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, IGMPv3, OSPF for IPv6, OSPFv3, PIM-SSM, ECMP, policy-based routing (PBR), RIPng, MLDv2, MLD, VRRPv3, CIDR, MSTP, RSTP
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, SLP, SCP, SNMP 6, SSH 6, SFTP, SMTP, NTP, ICMP, DHCP, IPv6, RSTP, TACACS+, RADIUS
Features: DHCP support, BOOTP support, ARP support, OCSP support, Syslog support, DoS attack prevention, DiffServ support, SNTP support, sFlow, DHCP snooping, ACL support, QoS, MLD snooping, DAI, PVST+, STP Root Guard, UDLD, LACP support, LLDP support, DHCP relay, RSPAN, DNS relay, DHCP client, Energy Efficient Ethernet, MIB, NAC, GVRP, 802.1x authentication, ERPS, MLD proxy, IP source guard, EPSRing, VCStack, BPDU, ICMP, black hole routing, CPP, AMF, BIST, Cable fault locator (TDR), DDM, AAA, Loop Guard, VLAN mirroring, DNS client, NTP client, CFM, LLDP-MED, storm protection, UDP, proxy ARP, EEE, VACM, router advertisement guard, PPP
Compliant Standards: IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, X.509, IEEE 802.1ad, IEEE 802.1v, ANSI/TIA-1057, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, ITU-T G.8032
Power: AC 120/230 V (50/60 Hz)
Dimensions (WxDxH): 44.1 cm x 42.1 cm x 4.4 cm
Weight: 6.2 kg
Localisation: United Kingdom

Associated Documents

APAXON Product Data Sheet - Allied Telesis AT x530L-28GPX(AT-X530L-28GPX-30).pdfPDF

Product Features

Robust performance

With a switching capacity of 128 Gbps and a forwarding rate of 95. 2 Mpps, the Allied Telesis AT x530L-28GPX ensures efficient data flow and high-speed connectivity, making it ideal for demanding network environments.

Enhanced security

This switch comes equipped with a comprehensive suite of security features including 802. 1x authentication, Dynamic ARP Inspection (DAI), and support for various encryption algorithms like DES, RSA, and SSL, ensuring a secure network infrastructure.

Advanced networking capabilities

Featuring Layer 3 advanced switching, support for multiple routing protocols including OSPF, BGP, and RIP, and Virtual Chassis Stacking (VCStack) capability, the device offers flexibility and scalability for growing network demands.

Power over Ethernet Plus (PoE+) support

With 24 PoE+ ports providing up to 30 W per port and a total PoE budget of 740 W, this switch can power a wide range of PoE devices, simplifying deployment and reducing cabling complexity.

Comprehensive management and monitoring

Manageable via CLI, SNMP, and RMON, with support for sFlow and remote management protocols, this switch offers extensive monitoring and management capabilities for efficient network operation.

Specifications

Dimensions & Weight (Shipping)

Shipping Width: 57.7 cm
Shipping Depth: 54.8 cm
Shipping Weight: 8.4 kg
Shipping Height: 15.3 cm

Connections & Expansion

Interfaces: 24 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W 4 x 1000Base-X/10GBase-X SFP+ uplink 2 x network stack device

General

Encryption Algorithm: DES, Triple DES, RSA, MD5, TLS, SHA-1, SSL 3.0, SSL 2.0, PEAP, TTLS, SHA-2, TLS 1.2, CRL
Routing Protocol: OSPF, RIP, BGP-4, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, IGMPv3, OSPF for IPv6, OSPFv3, PIM-SSM, ECMP, policy-based routing (PBR), RIPng, MLDv2, MLD, VRRPv3, CIDR, MSTP, RSTP
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, SLP, SCP, SNMP 6, SSH 6, SFTP, SMTP, NTP, ICMP, DHCP, IPv6, RSTP, TACACS+, RADIUS
Compliant Standards: IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, X.509, IEEE 802.1ad, IEEE 802.1v, ANSI/TIA-1057, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, ITU-T G.8032
Performance: Switching capacity: 128 Gbps Forwarding rate: 95.2 Mpps Stacking bandwidth: 40 Gbps Latency (10 Mbps): 29.91 Latency (100 Mbps): 6.06 Latency (1 Gbps): 3.98 Latency (10 Gbps): 1.63
Capacity: Virtual interfaces (VLANs): 4094 Packet buffer size: 3 MB OpenFlow flows: up to 1250
Status Indicators: Status, fault
Features: DHCP support, BOOTP support, ARP support, OCSP support, Syslog support, DoS attack prevention, DiffServ support, SNTP support, sFlow, DHCP snooping, ACL support, QoS, MLD snooping, DAI, PVST+, STP Root Guard, UDLD, LACP support, LLDP support, DHCP relay, RSPAN, DNS relay, DHCP client, Energy Efficient Ethernet, MIB, NAC, GVRP, 802.1x authentication, ERPS, MLD proxy, IP source guard, EPSRing, VCStack, BPDU, ICMP, black hole routing, CPP, AMF, BIST, Cable fault locator (TDR), DDM, AAA, Loop Guard, VLAN mirroring, DNS client, NTP client, CFM, LLDP-MED, storm protection, UDP, proxy ARP, EEE, VACM, router advertisement guard, PPP
Flash Memory: 256 MB
Max Units In A Stack: 4
Subtype: Gigabit Ethernet
MAC Address Table Size: 16K entries
Enclosure Type: Rack-mountable 1U
PoE Budget: 740 W
Power Over Ethernet (PoE): PoE+
RAM: 1 GB DDR3 SDRAM
Device Type: Switch - 28 ports - L3 - Managed - stackable
Jumbo Frame Support: 10KB
Authentication Method: Secure Shell (SSH), RADIUS, X.509 certificates, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Ports: 24 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)

Miscellaneous

Localisation: United Kingdom
Compliant Standards: FCC Class A certified, UL, cUL, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, EN 60950-1, EN 60825-1, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A, China RoHS, EN 55032 Class A, EU RoHS
