This product is out of stock
We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

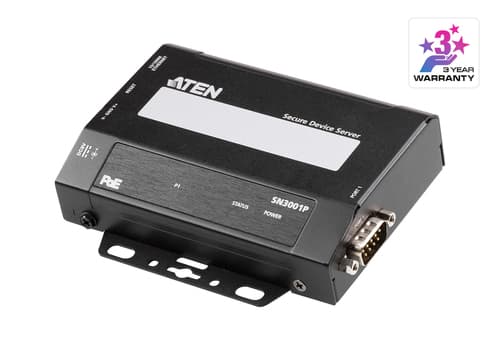

ATEN Altusen SN3000 series SN3001P - Device server - 100Mb LAN, RS-232
- Serial-to-Ethernet Connectivity
- Secured operation modes – Secure Real COM, Secure TCP Server / Client, Secure Serial Tunneling Server / Client, Console Management (SSH), and Console Management Direct (SSH)
- Supports baud rates of 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k bps
- Security
- Browser access with an intuitive GUI design
- System event logs will be saved to an internal memory or Syslog server
- SNMP agent (v1/v2c)
- Event notification – supports notification of SMTP email and SNMP Trap (v1/v2c)
- Standard operation modes – Real COM, TCP Server / Client, Serial Tunneling Server / Client, UDP, Console Management (Telnet), and Console Management Direct (Telnet)
- Convenient console management access via Java viewer (SSH/Telnet) or third-party clients such as PuTTY
- Easy console port access via Java viewer and Sun Solaris ready ("break-safe")
- Redundant power input (power jack and terminal block) for fail-safe power
- DIN-rail mounting, wall mounting, rack mounting, and desktop installation available
- Local and remote authentication and login
- Third-party authentication (e.g. RADIUS)
- Web-based quick setup wizard for fast configuration
- NTP for time server synchronization
- Multiple users can simultaneously access the same port – up to 16 connections per port
- IP address filter for security protection
- Terminal-based access with a menu-driven UI via Telnet / SSH
- Real COM, Real TTY, and Fixed TTY drivers for Windows, Linux, and UNIX
- Surge protection for serial, Ethernet, and power
- Backup / Restore system configuration and upgradeable firmware
- 64 KB port buffer prevents data loss when the network is down
- IEEE 802.3af-compliant PoE PD (powered device) equipment
- Supports secured login from browsers with TLS 1.2 data encryption and RSA 2048-bit certificates
- Configurable user permissions for port access and control
- System Management
- Online / Offline detection of connected serial devices (including terminal blocks) – automatically sending event notifications when the devices are offline (e.g. power failure) for device status monitoring
- Hardware
- Port logs will be saved to an internal memory or Syslog server
- 1 RS-232 serial port for secured serial data over Ethernet transmission
- Multi-language web-based GUI
Overview
ATEN SN3001P, RS-232, 98 x 117 x 26 mm, 210 g, DC, 0 - 60 °C, -40 - 75 °C
Specifications
Ports & interfaces
- Console port
- RS-232
- Serial ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
Weight & dimensions
- Dimensions (WxDxH)
- 98 x 117 x 26 mm
- Weight
- 210 g
Power
- Power source type
- DC
Operational conditions
- Operating temperature (T-T)
- 0 - 60 °C
- Storage temperature (T-T)
- -40 - 75 °C
- Operating relative humidity (H-H)
- 5 - 95%
- Storage relative humidity (H-H)
- 5 - 95%
Certificates
- Certification
- IEC 61000-4-8 PFMF IEC 61000-4-11 DIPs UL 60950-1, UL 62368-1 RoHS
