This product is out of stock
We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

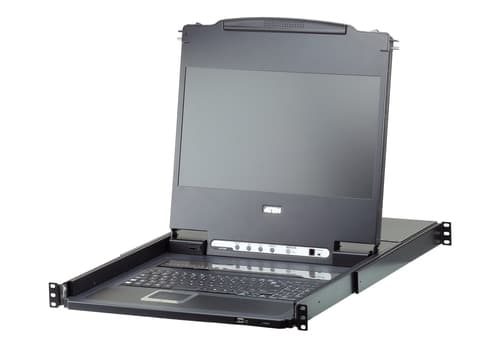

ATEN CL6708MW - KVM console with KVM switch - 8 ports - USB - 17.3" - rack-mountable - 1920 x 1080 Full HD (1080p) @ 60 Hz - DVI-I - 1U
- 43.9 cm (17.3") TFT 1920 x 1080 pixels 250 cd/m² 800:1
- Rack mounting 1U
- On Screen Display (OSD)
- Keyboard port type: USB Mouse port type: USB
- Keyboard layout: QWERTY
- Metal, Plastic
- Black
Overview
ATEN 8-Port 17.3" DVI Full HD LCD KVM Switch (USB)
Specifications
Technical details
- Rack mounting
- Yes
- Material
- Metal, Plastic
- Product colour
- Black
- Hot-Plug support
- Yes
- Operating relative humidity (H-H)
- 0 - 80%
- Built-in KVM switch
- Yes
- Maximum resolution
- 1920 x 1200 pixels
- Number of computers controlled
- 64
- On/off switch
- Yes
- LED indicators
- Yes
- Push button
- Yes
- Compliance certificates
- RoHS
- Rack capacity
- 1U
Display
- Display diagonal
- 43.9 cm (17.3")
- Display resolution
- 1920 x 1080 pixels
- Display
- LCD
- Display brightness
- 250 cd/m²
- Contrast ratio (typical)
- 800:1
- Viewing angle, horizontal
- 170°
- Viewing angle, vertical
- 170°
- On Screen Display (OSD)
- Yes
- Pixel pitch
- 0.1989 x 0.1989 mm
- Aspect ratio
- 16:9
- Display type
- TFT
- Response time
- 16 ms
- Supported resolutions
- up to 1920 x 1200 @ 60 Hz (all resolution @ 60 Hz only); 1920 x 1080 @ 60 Hz, DDC2B
Ports & interfaces
- 3.5 mm (1/8-inch) out
- Yes
- 3.5 mm (1/8-inch) in
- Yes
- DVI connector type
- DVI-I
- DVI input ports
- 1
- DVI output ports
- 8
- Keyboard port type
- USB
- Mouse port type
- USB
- USB 2.0 Type-A ports quantity
- 3
- USB 2.0 Type-B ports quantity
- 8
- I/O ports
- 1x RJ-11
Keyboard
- Built-in touchpad
- Yes
- Keyboard language
- US English
- Keyboard layout
- QWERTY
- Hot keys
- Yes
Power
- Power consumption (typical)
- 29.26 W
- AC adapter input voltage
- 100 - 240 V
- AC adapter frequency
- 50/60 Hz
- Input current
- 1 A
- AC (power) in
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
Group 14353
- Windows operating systems supported
- Yes
- Mac operating systems supported
- Yes
- Linux operating systems supported
- Yes
- Other operating systems supported
- Yes
Weight & dimensions
- Width
- 689.2 mm
- Height
- 44 mm
- Depth
- 480 mm
- Weight
- 12.7 kg
Group 8659
- Cables included
- AC, KVM
- Quick installation guide
- Yes
- Manual
- Yes
- AC adapter included
- Yes
- Rack mount kit
- Yes
