This product is out of stock
We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

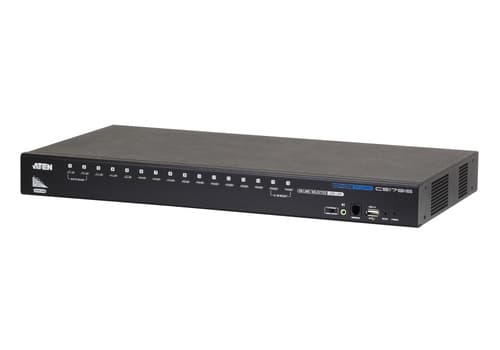

ATEN CS17916 - KVM / audio / USB switch - 16 x KVM / audio / USB - 1 local user - desktop, rack-mountable
- Rack mounting 1U Black
- Number of computers controlled: 256
- Keyboard port type: USB Mouse port type: USB Video port type: HDMI
- WUXGA 1920 x 1200 pixels
- Housing material: Metal
- Hot keys
- DC 12.2 W
Overview
ATEN CS17916 KVM switch Rack mounting Black
Specifications
Ports & interfaces
- Number of computers controlled
- 256
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- HDMI
- Console ports
- 3.5mm headphone, HDMI, USB A
- HDMI ports quantity
- 2
- Console USB ports quantity
- 2
- USB connector type
- USB Type-A
- Audio connections
- Yes
- DC-in jack
- Yes
Performance
- HD type
- WUXGA
- Maximum resolution
- 1920 x 1200 pixels
- Video bandwidth
- 60 Hz
- Scan interval
- 1,255 s
- HDCP
- Yes
- Hot-Plug support
- Yes
- Firmware upgradeable
- Yes
Design
- Rack mounting
- Yes
- Product colour
- Black
- Rack capacity
- 1U
- Housing material
- Metal
- Cascadable
- Yes
- LED indicators
- Yes
- Push button
- Yes
- Hot keys
- Yes
- Keyboard language
- Chinese Traditional, English, French, German, Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Swiss, UK English, US English
Display
- Built-in display
- No
- On Screen Display (OSD)
- Yes
Power
- Power source
- DC
- Input voltage
- 5 V
- Power consumption (typical)
- 12.2 W
System requirements
- Windows operating systems supported
- Yes
- Linux operating systems supported
- Yes
- Mac operating systems supported
- Yes
- Other operating systems supported
- Yes
Sustainability
- Compliance certificates
- RoHS
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
Weight & dimensions
- Width
- 432.4 mm
- Depth
- 257.2 mm
- Height
- 44 mm
- Weight
- 3.86 kg
Packaging content
- Cables included
- KVM
- Quick installation guide
- Yes
- Rack mount kit
- Yes
