Currently Unavailable

This product is out of stock

We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

ATEN PG series PG5308G - Power distribution unit (rack-mountable) - 30A/32A, metered, eco - AC 100-240 V - 7680 VA - Ethernet 10/100/1000 - input: IEC 60309 32A - output connectors: 8 (6 x IEC 60320 C13, 2 x IEC 60320 C19) - 1U - 3 m cord

Manuf P/N: PG5308G

APAXON#: 12971212

ATEN PG series PG5308G - Power distribution unit (rack-mountable) - 30A/32A, metered, eco - AC 100-240 V - 7680 VA - Ethernet 10/100/1000 - input: IEC 60309 32A - output connectors: 8 (6 x IEC 60320 C13, 2 x IEC 60320 C19) - 1U - 3 m cord

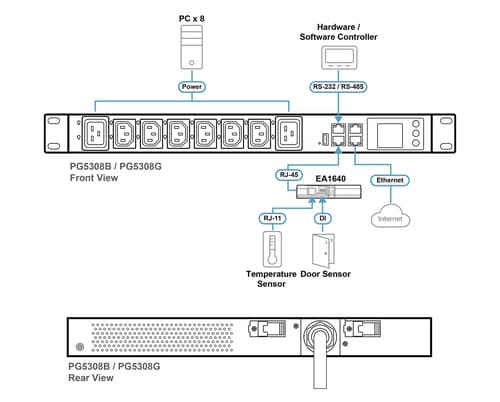

  • Dual 1G Ethernet ports support cascading up to 64 PDUs
  • Environment sensor port enables RJ-45 connectivity to connect or daisy-chain up to 8 ATEN EA1640 environment sensors for monitoring and management of temperature, humidity, airflow, differential air pressure, and leaks, featuring alerts for potential threats (sold separately)
  • Precise kWh metering (+/-1% ) for better power consumption habits, baselines, and initiative tracking
  • With an ARM Cortex-A8 processor, these PDUs provide advanced control options through USB, COM, environmental sensors, and dual Gigabit LAN ports

ATEN 32A 8-Outlet 1U Metered PDU + Free Eco PDU Manager Software, Metered, 1U, Black, LCD, 8 AC outlet(s), C13 coupler, C19 coupler

Ports & interfaces

Power plug
IEC 60309
AC outlets quantity
8 AC outlet(s) AC outlet(s)
AC outlet types
C13 coupler, C19 coupler
Ethernet LAN (RJ-45) ports
2
USB ports quantity
1

Operational conditions

Operating relative humidity (H-H)
0 - 80% %
Operating temperature (T-T)
0 - 60 °C °C
Storage temperature (T-T)
-20 - 60 °C °C

Weight & dimensions

Width
210 mm mm
Depth
432.4 mm mm
Height
44 mm mm
Weight
3.99 kg kg

Design

PDU types
Metered
Rack capacity
1U
Product colour
Black
Display
LCD

Features

Reset button
Yes
LED indicators
Yes
Cable length
3 m m

Management features

Monitoring
Current, Voltage

Power

Nominal input voltage
100 - 240 V V
Maximum current
32 A A
AC input frequency
50-60 Hz Hz
Output voltage
100 - 240 V V
Load capacity
7680 VA VA

Certificates

Certification
CE, UKCA

Logistics data

Country of origin
Taiwan
ATEN PG series PG5308G - Power distribution unit (rack-mountable) - 30A/32A, metered, eco - AC 100-240 V - 7680 VA - Ethernet 10/100/1000 - input: IEC 60309 32A - output connectors: 8 (6 x IEC 60320 C13, 2 x IEC 60320 C19) - 1U - 3 m cord — image 1
