This product is out of stock
We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

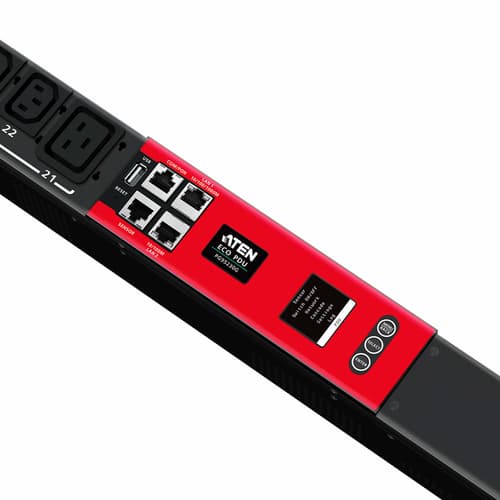

ATEN PG series PG95230G - Power distribution unit (rack-mountable) - 16A, metered - AC 230-400 V - 11084 VA - 3-phase - Ethernet 100/1000 - input: IEC 60309 3P+N+PE - output connectors: 30 (6 x IEC 60320 C19, 24 x IEC 60320 C13) - 0U - 3 m cord
- Precise kWh metering (+/-1% ) for better power consumption habits, baselines, and initiative tracking
- 1 Gbps and 100 Mbps Ethernet ports
- Allows for connecting up to 64 PDU units with cascading
- ARM Cortex-A8 processor for flexible control methods via LAN / COM / USB / environmental sensor ports and enhanced monitoring via LCD console
Overview
ATEN 16A 30-Outlet 3Phase Metered PDU + Free Eco PDU Manager Software, Metered, 0U, Three-phase, Black, LCD, 30 AC outlet(s)
Specifications
Design
- PDU types
- Metered
- Display
- LCD
- Type
- Three-phase
- Rack capacity
- 0U
- Product colour
- Black
Packaging data
- Package width
- 229 mm mm
- Package depth
- 1945 mm mm
- Package height
- 179 mm mm
- Package volume
- 79853.5074 cm³ cm³
- Package weight
- 9.72 kg kg
Ports & interfaces
- Power plug
- IEC309
- USB ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 4
- AC outlets quantity
- 30 AC outlet(s) AC outlet(s)
- AC outlet types
- C13 coupler, C19 coupler
Power
- Nominal input voltage
- 400 V V
- Maximum current
- 16 A A
- Nominal output voltage
- 230 V V
- AC input frequency
- 50 - 60 Hz Hz
- Load capacity
- 11084 VA VA
- Number of phases
- 3
- Circuit breaker
- No
Logistics data
- Master (outer) case width
- 229 mm mm
- Master (outer) case height
- 179 mm mm
- Master (outer) case net weight
- 7.5 kg kg
- Master (outer) case length
- 1945 mm mm
- Master (outer) case gross weight
- 10.1 kg kg
- Master (outer) case volume
- 79853.5074 cm³ cm³
Features
- Daisy chain
- Yes
- Security algorithms
- TLS
- Reset button
- Yes
- Cable length
- 3 m m
Management features
- Supported network protocols
- IPv6, SMS
- Management protocols
- TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, ARP, NTP, DNS, Auto Sense, Ping, SNMP V1&V2&V3, Telnet, Modbus
- Monitoring
- Current, Humidity, Power, Temperature, Voltage
Sustainability
- Sustainability compliance
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 60 °C °C
- Storage temperature (T-T)
- -20 - 60 °C °C
- Operating relative humidity (H-H)
- 0 - 80% %
- Storage relative humidity (H-H)
- 0 - 80% %
Packaging content
- Manual
- Yes
- Rack mount kit
- Yes
Certificates
- Compliance certificates
- CE
Weight & dimensions
- Width
- 56 mm mm
- Depth
- 1790 mm mm
- Height
- 68 mm mm
- Weight
- 7.34 kg kg
