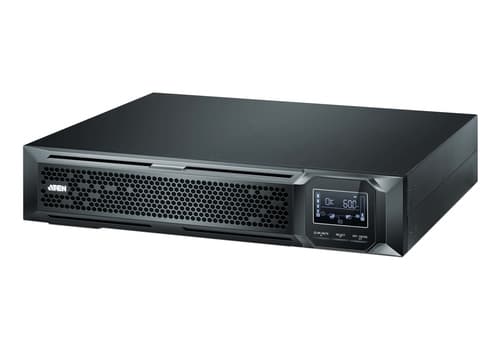

ATEN Professional OL1500HV - UPS (rack-mountable / external) - AC 220/230/240 V - 1500 Watt - 1500 VA - 9 Ah - RS-232, USB - output connectors: 8 - 2U
Manuf P/N: OL1500HV
APAXON#: 11494511
EAN: 4719264647970
ATEN Professional OL1500HV - UPS (rack-mountable / external) - AC 220/230/240 V - 1500 Watt - 1500 VA - 9 Ah - RS-232, USB - output connectors: 8 - 2U
- Double-conversion (Online)
- 1.5 kVA 1500 W
- Waveform: Sine
- 8 AC outlet(s)
- Sealed Lead Acid (VRLA) 12 V 9 Ah
- Rackmount/Tower Black
Stock0
Price £546.12
Quantity
|
Similar Products

ATEN Professional OL1500HV - UPS (rack-mountable / external) - AC 220/230/240 V - 1500 Watt - 1500 VA - 9 Ah - RS-232, USB - output connectors: 8 - 2U
Your Choice
—
—
—
—
Stock0
£546.12

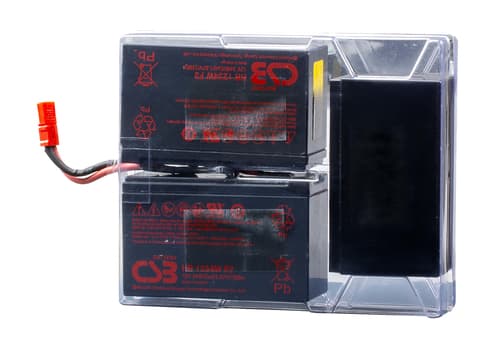

ATEN - UPS battery (internal) - pack - 2 x battery - Lead Acid - 9 Ah - black
Cheaper
—
—
—
—
Stock0
£110.87

ATEN - UPS battery (internal) - pack - 3 x battery - Lead Acid - 9 Ah - black
Cheaper
—
—
—
—
Stock0
£132.18

ATEN - UPS battery (internal) - pack - 4 x battery - Lead Acid - 9 Ah - black - for Professional OL2000HV, OL2000LV
Cheaper
—
—
—
—
Stock0
£186.40

ATEN - UPS battery (internal) - pack - 6 x battery - Lead Acid - 9 Ah - black
Cheaper
—
—
—
—
Stock0
£248.46
Product Summary
ATEN OL1500HV uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1500 W 8 AC outlet(s)
Extended Specification
Group 14328
UPS topology
Double-conversion (Online)
Output power capacity
1.5 kVA
Output power
1500 W
Waveform
Sine
Input operation voltage (min)
110 V
Input operation voltage (max)
300 V
Input frequency
40/70 Hz
Output frequency
50/60 Hz
Output voltage regulation
1%
Maximum current
7.2 A
Response time
0 ms
Efficiency
97%
Input power factor
0.99
Output power factor
1
Crest factor
3:1
ECO mode
Yes
Emergency Power Off (EPO)
Yes
Noise level
50 dB
Group 2452
AC outlet types
C14 coupler, IEC 320
Power plug
C13 coupler
AC outlets quantity
8 AC outlet(s)
USB port
Yes
Serial interface
Yes
Serial interface type
RS-232
Emergency Power Off (EPO) connector
Yes
Group 6389
Battery technology
Sealed Lead Acid (VRLA)
Battery capacity
9 Ah
Battery voltage
12 V
Number of batteries supported
3
Typical backup time at full load
2.96 min
Typical backup time at half load
10.3 min
Charging current
12 A
Hot-swap battery
Yes
Cold start
Yes
Replacement battery cartridge
1
Group 11117
Form factor
Rackmount/Tower
Product colour
Black
Rack capacity
2U
Cable length
1.8 m
Cooling type
Active
Built-in fan
Yes
Display type
LCD
LED indicators
Yes
Group 886
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 50 °C
Operating relative humidity (H-H)
20 - 90%
Storage relative humidity (H-H)
10 - 95%
Group 41213
Compliance certificates
RoHS
Certification
CE
Group 48990
Rack mount kit
Yes
Cables included
Power load cable, RS-232, USB cable
Manual
Yes
Group 885
Width
880 mm
Depth
438 mm
Height
410 mm
Weight
14.3 kg
Group 19554
Harmonized System (HS) code
85078000
