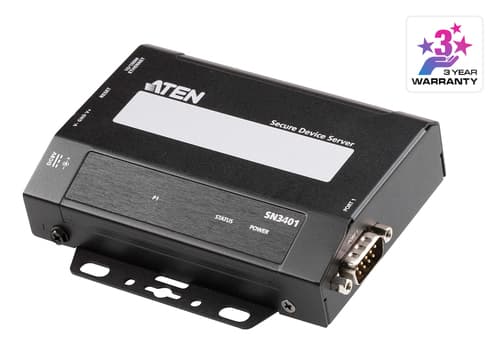

ATEN SN3401 - Device server - 1 ports - 100Mb LAN, RS-232, RS-422, RS-485 - desktop / wall / DIN rail mountable
Overview
ATEN SN3401 serial server RS-232/422/485
Specifications
Group 5685
- Serial ports quantity
- 1
- Serial interface type
- RS-232/422/485
- Isolation
- 1.5 kV
- Surge protection voltage
- 2 kV
- Ethernet LAN data rates
- 10,100 Mbit/s
- Electrostatic Discharge (ESD) protection
- 8 kV
- Data transfer rate
- 100 Mbit/s
- Flow control support
- Yes
- Baud rate
- 921.6 Kbit/s
- RS-232 signals
- CTS, DCD, DSR, DTR, GND, RTS, RXD, TXD
- RS-422 signals
- GND, RxD+, RxD-, TxD+, TxD-
- RS-485 signals
- Data+, Data-, GND, RxD+, RxD-, TxD+, TxD-
- Data bits
- 5, 6, 7, 8
- Flow Control type
- DTR/DSR, RTS/CTS, XON/XOFF
- Parity bit
- Even, Mark, No, Odd, Space
- Stop bits
- 1, 1.5, 2
- Compliance certificates
- RoHS
Group 5686
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Terminal block port
- Yes
Group 5687
- Power source type
- DC
- Power consumption (max)
- 1.3 W
- Power consumption (typical)
- 1.18 W
- Input voltage
- 100 - 240 V
- Input frequency
- 50 - 60 Hz
- Output voltage
- 9 - 48 V
Group 5691
- LED indicators
- Power, Status
Group 5693
- Width
- 117 mm
- Depth
- 98 mm
- Height
- 26 mm
- Weight
- 200 g
- Package width
- 59 mm
- Package depth
- 239 mm
- Package height
- 160 mm
- Package weight
- 470 g
Group 5694
- Operating temperature (T-T)
- 0 - 60 °C
- Storage temperature (T-T)
- -40 - 75 °C
- Operating relative humidity (H-H)
- 5 - 95%
Group 13154
- Product colour
- Black
- Housing material
- Metal
- Reset button
- Yes
- DIN rail mounting
- Yes
- Safety
- UL 60950-1, UL 62368-1
Group 13155
- DIN rail kit included
- Yes
- Terminal block included
- Yes
- Number of foot pads
- 4 pc(s)
- User guide
- Yes
Group 35792
- Country of origin
- Taiwan
Group 75511
- Sustainability certificates
- UL ECOLOGO
- Sustainability compliance
- Yes
