ATEN UH3238 Travel Dock - Docking station - USB-C 3.2 Gen 1 / Thunderbolt 3 - HDMI
Thumbnail 0
Thumbnail 1
Thumbnail 2

ATEN UH3238 Travel Dock - Docking station - USB-C 3.2 Gen 1 / Thunderbolt 3 - HDMI

Manuf P/N: UH3238
APAXON#: 11495028
EAN: 4710469340635
ATEN UH3238 Travel Dock - Docking station - USB-C 3.2 Gen 1 / Thunderbolt 3 - HDMI

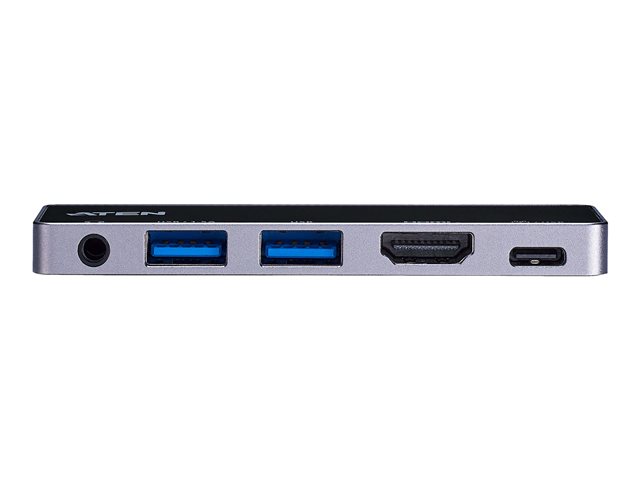

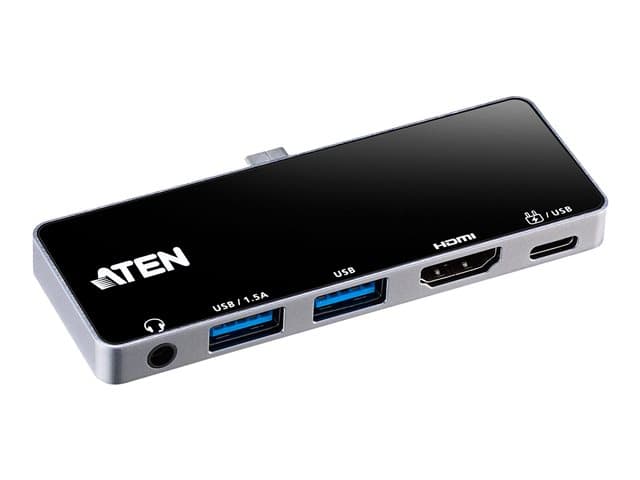

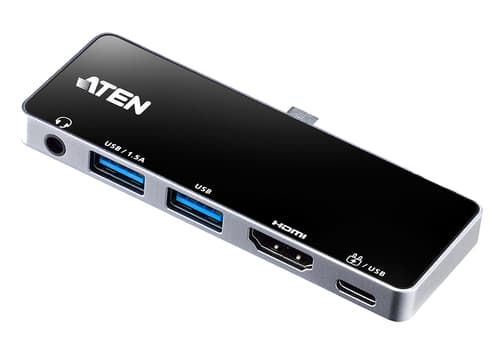

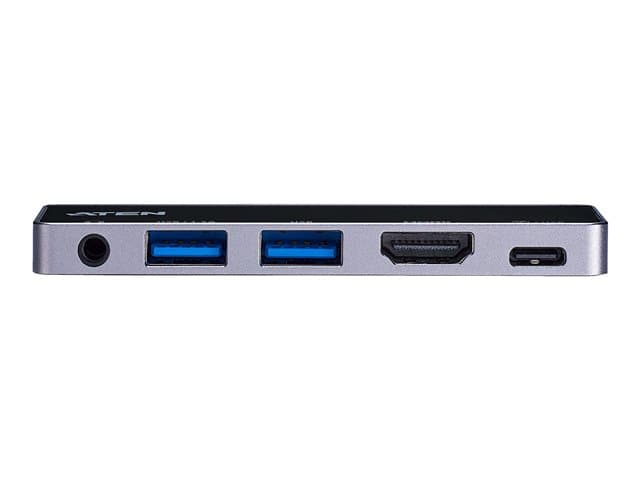

  • 5-in-1 travel dock that includes one audio port, two USB Type-A ports, one HDMI port, and one USB-C DC in port
  • Supports USB PD 3.0 for charging up to 92W via USB-C PD power adapter - power profiles include 5V, 9V, 15V, 20V
  • Supports DP 1.4 Alt mode with up to 4K (3840 x 2160) at 60Hz for superior video output
  • HDMI (3D, Deep Color, 4K)
  • HDCP 2.2 compliant
  • Plug and Play - no drivers needed
  • Works with all major operating systems
  • Compatible with Thunderbolt 3 (USB-C)
  • Compact, lightweight design for mobile workstation
Stock0
Price £28.49
Quantity
|

Product Summary

Designed and made to be a portable and versatile connectivity solution, the UH3238 USB-C Travel Dock with Power Pass-Through contains 5 essential ports - one audio port, two USB Type-A ports, one HDMI port, and one USB-C DC in port - to provide connectivity and power supply for users that travel and require mobile office scenarios. The Thunderbolt 3 and USB 3.2 Gen 1- compatible interface guarantees excellent data transmission speed up to 5 Gbps. With the support for up to 4K HDMI (3840 x 2160 at 60Hz), the device allows users to multitask at stunningly realistic Ultra HD resolution. The UH3238 boasts a plug-and-play design and is compatible with all major operating systems. Lightweight, it is a compact, yet competent, and ideal data and power transmission solution for every mobile workstation ecosystem.

Main Specifications

Product Description
ATEN UH3238 Travel Dock - docking station - USB-C 3.2 Gen 1 / Thunderbolt 3 - HDMI
Product Type
Docking station
Docking Interface
USB-C 3.2 Gen 1 / Thunderbolt 3
Video Interfaces
HDMI
Dimensions (WxDxH)
3.2 cm x 9 cm x 0.82 cm
Weight
50 g
5-in-1 ultra-portable travel dock

The ATEN UH3238 USB-C Travel Dock provides an uncompromising mobile experience, giving all your USB-C mobile devices portable access to multiple media devices. With its pocket size, you can travel lighter with this ultra-portable dock and make the most of your mobile devices.

Universal design, made for USB-C mobile devices

The Travel Dock is specifically designed for any USB-C device, such as an Android tablet, iPad Pro, smartphone, Windows laptop, and MacBook with universal compatibility.

Stunning 4K at 60Hz HDMI display

It extends your viewing workspace with a single monitor for crystal-clear resolution, up to 4K at 60Hz, for on-the-go presentations, conference calls, and video streaming.

Restores 3

5mm audio jack. The 3. 5mm audio jack restores wired headphones connectivity to your mobile devices. You can once again enjoy high-quality audio with your wired headphones.

Type-C 92W PD and 5Gbps data transfer

The USB-C port supports 92W power delivery providing full-speed pass-through charging for your Windows laptop, MacBook, Android tablet, iPad Pro, or smartphone, while also supporting standard 5Gbps data transfer.

Extended Specification

Ports & interfaces
Connectivity technology
Docking
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
HDMI ports quantity
1
Microphone in
No
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB Power Delivery (USB PD)
Yes
USB Power Delivery revision
3.0
USB Power Delivery up to
92 W
Combo headphone/mic port
Yes
Headphone connectivity
3.5 mm
HDCP
Yes
HDCP version
2.2
Network
Ethernet LAN
No
Performance
Product colour
Black, Silver
Card reader integrated
No
HD type
4K Ultra HD
Maximum digital resolution
3840 x 2160 pixels
Maximum refresh rate
60 Hz
Plug and Play
Yes
Housing material
Aluminium
Power
Power source type
USB
Power connector
USB Type-C
Software
Windows operating systems supported
Windows 10, Windows 11
Mac operating systems supported
Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Mobile operating systems supported
Android, iOS
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
32 mm
Depth
90 mm
Height
8.2 mm
Weight
44 g
Packaging data
Quantity per pack
1 pc(s)
Packaging content
Quick start guide
Yes
ATEN UH3238 Travel Dock - Docking station - USB-C 3.2 Gen 1 / Thunderbolt 3 - HDMI

Disclaimers

  • [1]Product data is provided by CNET, we do not warrant the accuracy and completeness of the material contained in this data sheet
