ATEN UH3239 - Mini-dock - USB-C 3.2 Gen 1 / Thunderbolt 3 - HDMI

Manuf P/N: UH3239
APAXON#: 11494934
EAN: 4710469340642
ATEN UH3239
Mini-dock
USB-C 3.2 Gen 1 / Thunderbolt 3
HDMI
  • 6-in-1 multi-function dock that includes 1x HDMI, 1x SD / micro SD card reader, 1x USB-C PD port and 2x USB 3.2 Gen 1 Type-A ports
  • Supports USB PD 2.0 for laptop charging up to 60W via USB-C PD power adapter - power profiles include 5V, 12V, 15V, 20V
  • Supports resolutions up to 4K (3840 x 2160 at 30Hz) for excellent video distribution
  • Plug-and-play - no drivers needed
  • Works with all major operating systems
  • Compatible with Thunderbolt 3 (USB-C)
Stock0
Price £28.49
Quantity
|

Product Summary

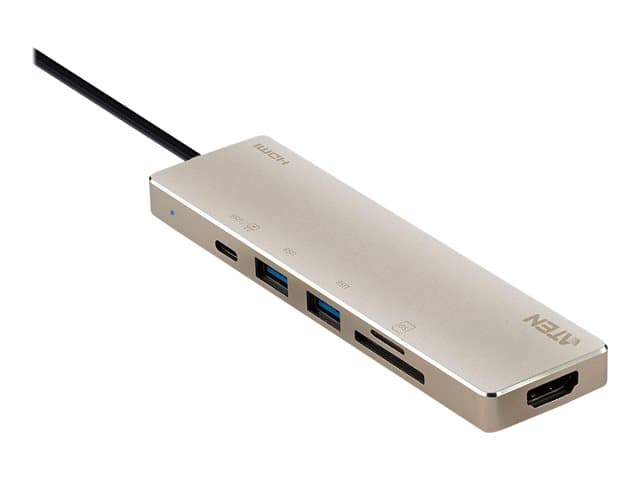

The UH3239 USB-C Multiport Mini Dock with Power Pass-Through is a portable, versatile and flexible 6-in-1 adapter for USB-C PCs or laptops. The durable aluminum enclosure ships with dual USB 3.2 Type-A ports, a USB-C PD port, an HDMI port along with an SD card and a microSD card slots. It covers users' peripheral connectivity demands while allowing power delivery to the connected USB-C device. It supports resolutions up to 4K HDMI (3840 x 2160 at 30Hz) to ensure that every detail of the video is displayed in the crisp and sharp Ultra HD resolution on the 4K graphics-supported laptop. Besides, its 2 USB 3.2 Gen 1 Type-A ports guarantee effective communication with peripherals at a decent 5 Gbps transmission speed. Thanks to the USB-C PD port, the UH3239 can provide power or charge the external devices, and hence, there will be no more tangled data cables on the desk. The UH3239 is a plug-and-play device compatible with all major operating systems. It is a compact, yet competent, data and power transmission solution for on-the-go professionals when it comes to building a mobile workstation ecosystem.

Extended Specification

Ports & interfaces
Connectivity technology
Wired
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
HDMI ports quantity
1
Microphone in
No
Headphone outputs
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB Power Delivery (USB PD)
Yes
USB Power Delivery revision
2.0
USB Power Delivery up to
60 W
Network
Ethernet LAN
No
Performance
Product colour
Aluminium
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC
HD type
4K Ultra HD
Maximum digital resolution
3840 x 2160 pixels
Maximum refresh rate
30 Hz
Plug and Play
Yes
Housing material
Aluminium
Power
Power source type
USB
Power connector
USB Type-C
Power consumption (typical)
15 W
Software
Windows operating systems supported
Windows 10, Windows 11
Mac operating systems supported
Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Mobile operating systems supported
iOS
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
36 mm
Depth
133 mm
Height
11 mm
Weight
70 g
Packaging data
Quantity per pack
1 pc(s)
Packaging content
Quick start guide
Yes
ATEN UH3239 - Mini-dock - USB-C 3.2 Gen 1 / Thunderbolt 3 - HDMI

Disclaimers

  • [1]Product data is provided by CNET, we do not warrant the accuracy and completeness of the material contained in this data sheet
