This product is out of stock
We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

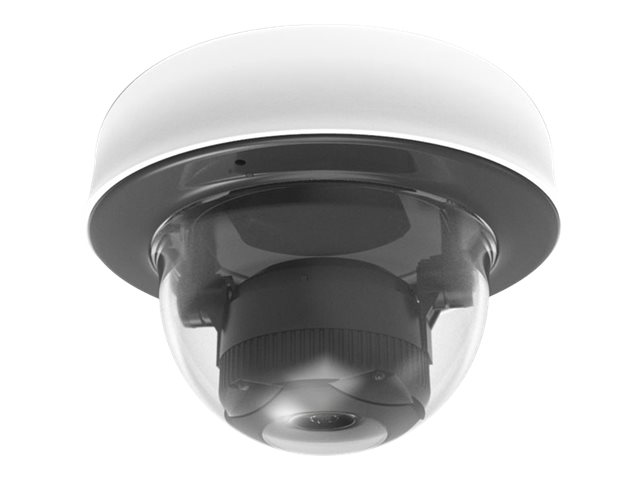

Cisco Meraki Narrow Angle MV12 Mini Dome HD Camera - network surveillance camera - dome
Network surveillance camera
dome
colour (Day&Night)
4 MP
2688 x 1520
1080p
fixed focal
audio
Wi-Fi
GbE
H.264
PoE
Weight: 0.68 KG
- 256GB integrated high-endurance solid state storage
- 1080p video recording with H.264 encoding
- 73° horizontal field of view (FOV)
- Wireless capable
- Microphone
- An industry-leading processor allows for advanced onboard analytics functionality
- Attractive and subtle design blends into any space
- Compact form factor with small installation footprint
- Control who can view live and historical footage
- Limit access to video exporting
- Grant viewing access to individual cameras or by device tags
- Network-wide visibility and control
- Stream local or remote - the cloud automatically routes the video stream
- Create and organize video walls
- Export video clips to a shareable link or download
Overview
Compact dome camera for indoor security: cloud management, reliable edge storage, and advanced analytics.
Main Specifications
- Product Description
- Cisco Meraki Narrow Angle MV12 Mini Dome HD Camera - network surveillance camera - dome
- Device Type
- Network surveillance camera - fixed - dome
- Audio
- Yes
- Camera Mount Type
- Wall mount
- Dimensions (WxDxH)
- 10.6 cm x 10.6 cm x 7.4 cm
- Weight
- 286 g
- Connectivity Technology
- Wired
- Camera
- Colour - Day&Night
- Max Resolution
- 2688 x 1520
- Video Modes
- 1080p
- Optical Sensor Type
- CMOS - 1/3" - 4 MP
- Focal Length Control
- Fixed focal
- Focal Length
- 3.8 mm
- Focus Adjustment
- Manual
- Lens Iris
- F/1.8
- Interfaces
- Ethernet 10Base-T/100Base-TX/1000Base-T
- Voltage
- PoE
- Features
- LED indicator, reset button, remote focus
- Manufacturer Warranty
- 3-year warranty
- Environmental Parameters (operating)
- 0 °C - 40 °C
Associated Documents
Product Features
Robust environmental adaptability
Designed to operate seamlessly in conditions ranging from 0°C to 40°C, the Narrow Angle MV12 Mini Dome HD Camera ensures reliable performance in a wide range of environmental settings. Its ability to withstand diverse temperatures makes it an ideal choice for various locations, enhancing its versatility and utility.
High-definition imaging
Equipped with a CMOS optical sensor and a lens aperture of f/1. 8, this camera captures high-quality images with a total pixel count of 4,000,000. The fixed focal lens, with a minimum focal length of 3. 8 mm, provides clear and detailed visuals, ensuring critical moments are captured with clarity.
Advanced connectivity options
Featuring Ethernet 10Base-T/100Base-TX/1000Base-T network interface and support for key network protocols like DSCP and TLS, alongside Wi-Fi connectivity, this camera offers flexible and secure options for integrating into existing networks. Its RJ-45 connector for LAN/power simplifies installation and maintenance.
Enhanced night vision capability
With infrared LEDs and a maximum infrared distance of 15 m, the camera provides exceptional night vision. This feature, combined with day and night functionality, ensures continuous surveillance and security, capturing high-quality footage around the clock.
Efficient power management
The camera's low voltage power requirement, supported by PoE (Power over Ethernet), along with an operational power consumption of just 12. 95 watts, makes it an energy-efficient choice for continuous surveillance operations. This feature not only reduces running costs but also supports a greener operation.
What's in the box
Cisco Meraki Narrow Angle MV12 Mini Dome HD Camera, Wall mount kit
Specifications
General
- Width
- 10.6 cm
- Depth
- 10.6 cm
- Height
- 7.4 cm
- Audio Support
- Yes
- Weight
- 286 g
- Connectivity Technology
- Wired
- Camera Mount Type
- Wall mount
- Form Factor
- Dome
- Device Type
- Network surveillance camera
Connections & Expansion
- Ports
- LAN/power - RJ-45
Manufacturer Warranty
- Service & Support
- Limited warranty - advance parts replacement - 3 years
Miscellaneous
- Included Accessories
- Wall mount kit
- Compliant Standards
- Plug and Play, IEEE 802.3af
Power
- Power Requirements
- PoE
- Power Device
- 12.95 Watt
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
Camera
- Infrared LEDs
- Yes
- Infrared Distance
- 15 m
- Flash Memory
- 256 GB
- Video Modes
- 1080p
- Type
- Colour - Day&Night - fixed
- Digital Video Format
- H.264
- Max Digital Video Resolution
- 2688 x 1520
- Exposure Range
- 1/30 sec - 1/32000 sec
- Features
- LED indicator, reset button, remote focus
- Digital Video Capture Resolution
- 1920 x 1080, 2688 x 1520
Lens Construction
- Lens Iris
- F/1.8
- Focus Adjustment
- Manual
- Vertical Field of View (degree)
- 44
- Horizontal Field of View (degree)
- 73
- Focal Length
- 3.8 mm
- Type
- Fixed focal
Image Sensor
- Type
- 4 MP CMOS 1/3"
Ports & interfaces
- Network Interface
- Ethernet 10Base-T/100Base-TX/1000Base-T
- Network Protocols
- TLS, DSCP
