Product Comparison

Technical Specifications

Only show the difference

Feature

Brand: ALLIED TELESIS|SKU: AT-IE220-6GHX-80

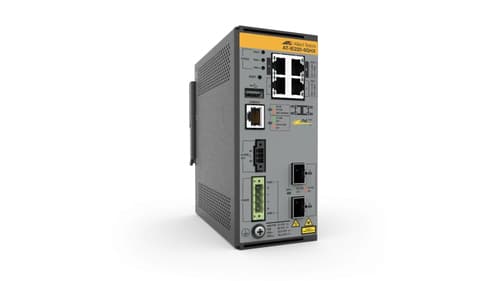

Allied Telesis AT IE220-6GHX - Switch - L2+ - Managed - 4 x 10/100/1000Base-T + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink) - DIN rail mountable, wall-mountable - PoE++ (180 W)

£662.00

Stock: 2

Brand: ALLIED TELESIS|SKU: AT-GS980MX/52PSM-30

Allied Telesis CentreCOM AT-GS980MX/52PSM - Switch - L3 - Managed - 40 x 10/100/1000 (PoE+) + 8 x 100/1000/2.5G/5G (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ - rack-mountable - PoE+ (370 W)

£2205.68

Stock: 3

Brand: ALLIED TELESIS|SKU: AT-X530L-28GTX-30

Allied Telesis AT X530L-28GTX

£1539.67

Stock: 2

Brand: ALLIED TELESIS|SKU: AT-X530L-52GPX-30

Allied Telesis AT x530L-52GPX - Switch - L3 - Managed - 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink) - rack-mountable - PoE+ (740 W)

£3311.04

Stock: 2

Brand: ALLIED TELESIS|SKU: AT-IE220-10GHX-80

Allied Telesis AT IE220-10GHX - Switch - L2+ - Managed - 8 x 10/100/1000Base-T + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink) - DIN rail mountable, wall-mountable - PoE++ (240 W)

£917.78

Stock: 2

General

Authentication Method

—

Secure Shell (SSH), RADIUS, X.509 certificates, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)

—

Capacity

—

Virtual interfaces (VLANs): 4094, Packet buffer size: 3 MB, OpenFlow flows: up to 1250

—

Compliant Standards

—

IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, X.509, IEEE 802.1ad, IEEE 802.1v, ANSI/TIA-1057, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, ITU-T G.8032

—

Device Type

—

Switch - 28 ports - L3 - Managed - stackable

—

Enclosure Type

—

Rack-mountable 1U

—

Encryption Algorithm

—

DES, Triple DES, RSA, MD5, TLS, SHA-1, SSL 3.0, SSL 2.0, PEAP, TTLS, SHA-2, TLS 1.2, CRL

—

Features

—

DHCP support, BOOTP support, ARP support, OCSP support, Syslog support, DoS attack prevention, DiffServ support, SNTP support, sFlow, DHCP snooping, ACL support, QoS, MLD snooping, DAI, PVST+, STP Root Guard, UDLD, LACP support, LLDP support, DHCP relay, RSPAN, DNS relay, DHCP client, Energy Efficient Ethernet, MIB, NAC, GVRP, 802.1x authentication, ERPS, MLD proxy, IP source guard, EPSRing, VCStack, BPDU, ICMP, black hole routing, CPP, AMF, BIST, Cable fault locator (TDR), DDM, AAA, Loop Guard, VLAN mirroring, DNS client, NTP client, CFM, LLDP-MED, storm protection, UDP, proxy ARP, EEE, VACM, router advertisement guard, PPP

—

Flash Memory

—

256 MB

—

Jumbo Frame Support

—

10KB

—

MAC Address Table Size

—

16K entries

—

Max Units In A Stack

—

Performance

—

Switching capacity: 128 Gbps, Forwarding rate: 95.2 Mpps, Stacking bandwidth: 40 Gbps, Latency (10 Mbps): 29.91, Latency (100 Mbps): 6.06, Latency (1 Gbps): 3.98, Latency (10 Gbps): 1.63

—

Ports

—

24 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)

—

RAM

—

1 GB DDR3 SDRAM

—

Remote Management Protocol

—

SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, SLP, SCP, SNMP 6, SSH 6, SFTP, SMTP, NTP, ICMP, DHCP, IPv6, RSTP, TACACS+, RADIUS

—

Routing Protocol

—

OSPF, RIP, BGP-4, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, IGMPv3, OSPF for IPv6, OSPFv3, PIM-SSM, ECMP, policy-based routing (PBR), RIPng, MLDv2, MLD, VRRPv3, CIDR, MSTP, RSTP

—

Status Indicators

—

Status, fault

—

Subtype

—

Gigabit Ethernet

—

Power

Input voltage

37 - 57 V

—

37 - 57 V

Installed Qty

—

Max Supported Qty

—

Power consumption (max)

17.4 W

—

18.5 W

Power Consumption Operational

—

39 Watt

—

Power Device

—

Internal power supply

—

Power source

DC/PoE

—

DC/PoE

Voltage Required

—

AC 120/230 V (50/60 Hz)

—

Network

10G support

—

Flow control support

Yes

—

Yes

Full duplex

Yes

—

Yes

Link aggregation

Yes

—

Yes

Networking standards

IEEE 802.3ac, IEEE 802.3bt, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1v, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x

—

IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.3bt

Number of VLANs

4094

—

4094

VLAN support

Yes

—

Yes

Miscellaneous

Compliant Standards

—

FCC Class A certified, UL, cUL, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, EN 60950-1, EN 60825-1, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A, China RoHS, EN 55032 Class A, EU RoHS

—

Localisation

—

United Kingdom

—

Security

Access Control List (ACL)

Yes

—

Yes

Authentication

MAC-based authentication, Port-based authentication

—

MAC-based authentication, Port-based authentication

BPDU filtering/protection

Yes

—

Yes

DHCP features

DHCP client, DHCP snooping

—

DHCP client, DHCP snooping

IGMP snooping

Yes

—

Yes

Security algorithms

802.1x RADIUS

—

802.1x RADIUS

Management features

ARP inspection

Yes

—

Yes

Configuring Location Settings (CLI)

Yes

—

Yes

Quality of Service (QoS) support

Yes

—

Yes

Switch layer

—

Switch type

Managed

—

Managed

System event log

Yes

—

Yes

Traffic classification

Yes

—

Yes

Traffic shaping

Yes

—

Yes

Web-based management

Yes

—

Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

—

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

—

Gigabit Ethernet (10/100/1000)

Combo SFP ports quantity

—

Gigabit Ethernet (copper) ports quantity

—

USB 2.0 ports quantity

—

Weight & dimensions

Depth

137 mm

—

137 mm

Height

155 mm

—

155 mm

Width

65 mm

—

65 mm

Weight & Dimensions

Depth

—

32.3 cm

—

Height

—

4.4 cm

—

Weight

—

4.4 kg

—

Width

—

44.1 cm

—

Design

DIN rail mounting

Yes

—

Yes

Housing material

Aluminium, Metal

—

Aluminium, Metal

International Protection (IP) code

IP30

—

IP30

Product colour

Grey

—

Grey

Rack mounting

—

Wall mountable

Yes

—

Yes

Performance

Export Control Classification Number (ECCN)

5A992C

—

5A992C

Flash memory

128 MB

—

128 MB

Internal memory

512 MB

—

512 MB

Logistics data

Harmonized System (HS) code

8517.62.0050

—

8517.62.0050

Environmental Parameters

Humidity Range Operating

—

5 - 90% (non-condensing)

—

Humidity Range Storage

—

5 - 95% (non-condensing)

—

Max Operating Temperature

—

50 °C

—

Max Storage Temperature

—

70 °C

—

Min Operating Temperature

—

0 °C

—

Min Storage Temperature

—

-25 °C

—

Connections & Expansion

Interfaces

—

24 x 10/100/1000 Base-T RJ-45, 4 x 1000Base-X/10GBase-X SFP+ uplink, 2 x network stack device

—

Data transmission

Jumbo frames support

Yes

—

Yes

MAC address table

16000 entries

—

16000 entries

Packet buffer memory

2 MB

—

2 MB

Switching capacity

48 Gbit/s

—

56 Gbit/s

Throughput

37.7 Mpps

—

41.7 Mpps

Protocols

Management protocols

SNMPv1/v2c/v3

—

SNMPv1/v2c/v3

Multicast features

Multicast support

Yes

—

Yes

Power over Ethernet (PoE)

Yes

—

Yes

Power over Ethernet 4PPoE (PoE++) ports quantity

—

Power over Ethernet plus (PoE+) ports quantity

—

Dimensions & Weight (Shipping)

Shipping Depth

—

44 cm

—

Shipping Height

—

15.3 cm

—

Shipping Weight

—

6.3 kg

—

Shipping Width

—

57.7 cm

—
