Product Comparison

Technical Specifications

Only show the difference

Feature

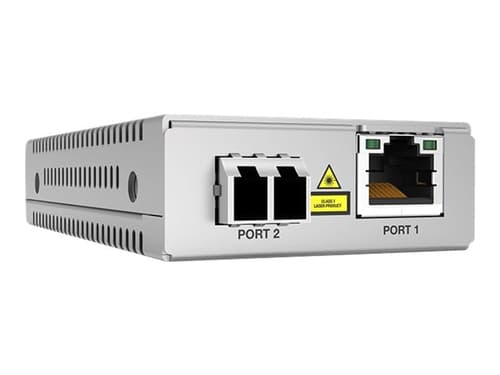

Allied Telesis AT MMC2000LX/LC - Fibre media converter - 1GbE - 10Base-T, 100Base-TX, 1000Base-T, 1000Base-LX, 1000Base-LC - RJ-45 / LC/LX single-mode - up to 20 km - 1310 nm - TAA Compliant

Brand: ALLIED TELESIS|SKU: AT-MMC2000LX/LC-960

Allied Telesis AT MMC2000LX/LC - Fibre media converter - 1GbE - 10Base-T, 100Base-TX, 1000Base-T, 1000Base-LX, 1000Base-LC - RJ-45 / LC/LX single-mode - up to 20 km - 1310 nm - TAA Compliant

£254.87

Stock: 2

Allied Telesis AT MMC200/ST - Fibre media converter - 100Mb LAN - 10Base-T, 100Base-FX, 100Base-TX - RJ-45 / ST multi-mode - up to 2 km - 1310 nm - TAA Compliant

Brand: ALLIED TELESIS|SKU: AT-MMC200/ST-960

Allied Telesis AT MMC200/ST - Fibre media converter - 100Mb LAN - 10Base-T, 100Base-FX, 100Base-TX - RJ-45 / ST multi-mode - up to 2 km - 1310 nm - TAA Compliant

£99.95

Stock: 6

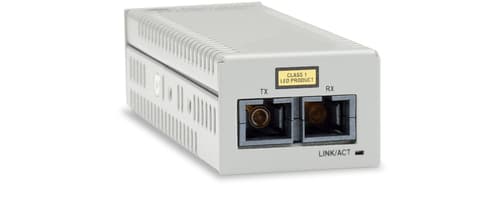

Allied Telesis AT DMC100/SC - Fibre media converter - 100Mb LAN - 100Base-FX, 100Base-TX - RJ-45 / SC multi-mode - up to 2 km - 1310 nm

Brand: ALLIED TELESIS|SKU: AT-DMC100/SC-30

Allied Telesis AT DMC100/SC - Fibre media converter - 100Mb LAN - 100Base-FX, 100Base-TX - RJ-45 / SC multi-mode - up to 2 km - 1310 nm

£99.95

Stock: 4

Power

Input current

0.14 A

0.14 A

—

Input voltage

12 V

12 V

—

Power consumption (typical)

—

1.7 W

1.5 W

Power over Ethernet (PoE)

—

Yes

—

Network

Auto MDI/MDI-X

—

Yes

Yes

Converter input interface

10Base-T, 100Base-T, 1000Base-T

10Base-T, 100Base-T, 1000Base-T

100Base-TX

Converter output interface

1000Base-LX

1000Base-SX

100Base-FX

Data transfer rate

—

—

100 Mbit/s

Duplex system

Full

Full

Full, Half

Ethernet interface type

Gigabit Ethernet

Fast Ethernet

Fast Ethernet

Ethernet LAN data rates

10,100,1000 Mbit/s

10,100 Mbit/s

—

Fiber ethernet cabling technology

1000BASE‑LX

1000BASE‑SX

—

Jumbo frames

—

10000

—

Jumbo frames support

Yes

Yes

—

Maximum data transfer rate

1000 Mbit/s

100 Mbit/s

100 Mbit/s

Networking standards

IEEE 802.1Q

IEEE 802.1Q

IEEE 802.1Q

Packet forwarding rate (1 Gbps)

—

—

1488000 pps

Packet forwarding rate (10 Mbps)

—

—

14880 pps

Packet forwarding rate (100 Mbps)

—

—

148800 pps

Store-and-forward

—

Yes

—

VLAN support

Yes

Yes

Yes

Certificates

Certification

UL60950-1 EN60950-1 FCC Class A EN55022 Class A CISPR 22 Class A C-TICK VCCI

CE, UL60950-1, EN60950-1, FCC Class A, EN55022 Class A, CISPR 22 Class A, C-TICK, VCCI

—

Safety

—

FCC Class A, EN55022 Class A, CISPR 22 Class A, C-TICK, VCCI

—

Ports & interfaces

Connectivity technology

Wired

Wired

Wired

Ethernet LAN (RJ-45) ports

1

1

—

Fiber optic connector

LC

ST

SC

Fiber ports quantity

2

2

—

Weight & dimensions

Depth

101.6 mm

101.6 mm

91.4 mm

Height

21.8 mm

21.8 mm

21.6 mm

Weight

170 g

170.097 g

113 g

Width

56 mm

56 mm

31.8 mm

Performance

Fiber cable diameters supported (core/cladding)

—

50/125,62.5/125 µm

50/125,62.5/125 µm

Fiber mode structure

Single-mode

Multi-mode

Multi-mode

Maximum transfer distance

10000 m

2000 m

2000 m

Rx power (max)

—

-3 dBmW

-34 dBmW

Rx power (min)

—

-17 dBmW

-32 dBmW

Tx power (max)

—

-4 dBmW

-14 dBmW

Tx power (min)

—

-9.5 dBmW

-22.5 dBmW

Wavelength

1310 nm

1310 nm

1310 nm

Logistics data

Harmonized System (HS) code

85176990

—

—

Features

Internal

No

No

No

LED indicators

—

LAN, Power, System

Yes

Product colour

Grey

Grey

Grey

Packaging content

Manual

—

Yes

—

Quick installation guide

—

Yes

—

User guide

—

Yes

—

Operational conditions

Operating altitude

0 - 3048 m

0 - 3048 m

0 - 3048 m

Operating relative humidity (H-H)

5 - 95%

5 - 95%

5 - 95%

Operating temperature (T-T)

0 - 50 °C

0 - 50 °C

0 - 40 °C

Storage relative humidity (H-H)

5 - 95%

5 - 95%

5 - 95%

Storage temperature (T-T)

-30 - 70 °C

-15 - 65 °C

-15 - 65 °C
