Product Comparison

Technical Specifications

Only show the difference

Feature

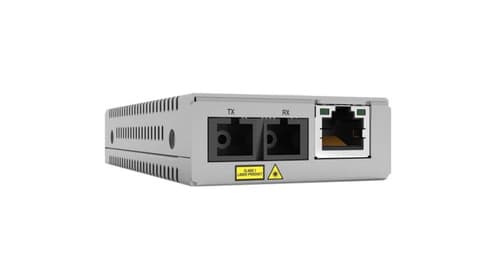

Allied Telesis AT MMC200LX/SC - Fibre media converter - 100Mb LAN - 10Base-T, 100Base-TX, 100Base-LX, 100Base-SC - RJ-45 / LX/SC single-mode - up to 15 km - 1310 nm - TAA Compliant

Brand: ALLIED TELESIS|SKU: AT-MMC200LX/SC-960

Allied Telesis AT MMC200LX/SC - Fibre media converter - 100Mb LAN - 10Base-T, 100Base-TX, 100Base-LX, 100Base-SC - RJ-45 / LX/SC single-mode - up to 15 km - 1310 nm - TAA Compliant

£191.41

Stock: 0

Allied Telesis AT MMC2000LX/LC - Fibre media converter - 1GbE - 10Base-T, 100Base-TX, 1000Base-T, 1000Base-LX, 1000Base-LC - RJ-45 / LC/LX single-mode - up to 20 km - 1310 nm - TAA Compliant

Brand: ALLIED TELESIS|SKU: AT-MMC2000LX/LC-960

Allied Telesis AT MMC2000LX/LC - Fibre media converter - 1GbE - 10Base-T, 100Base-TX, 1000Base-T, 1000Base-LX, 1000Base-LC - RJ-45 / LC/LX single-mode - up to 20 km - 1310 nm - TAA Compliant

£254.80

Stock: 2

Allied Telesis AT DMC100/SC - Fibre media converter - 100Mb LAN - 100Base-FX, 100Base-TX - RJ-45 / SC multi-mode - up to 2 km - 1310 nm

Brand: ALLIED TELESIS|SKU: AT-DMC100/SC-30

Allied Telesis AT DMC100/SC - Fibre media converter - 100Mb LAN - 100Base-FX, 100Base-TX - RJ-45 / SC multi-mode - up to 2 km - 1310 nm

£99.92

Stock: 4

Power

Input current

—

0.14 A

—

Input voltage

—

12 V

—

Power consumption (typical)

—

—

1.5 W

Network

Auto MDI/MDI-X

—

—

Yes

Converter input interface

—

10Base-T, 100Base-T, 1000Base-T

100Base-TX

Converter output interface

—

1000Base-LX

100Base-FX

Data transfer rate

—

—

100 Mbit/s

Duplex system

—

Full

Full, Half

Ethernet interface type

—

Gigabit Ethernet

Fast Ethernet

Ethernet LAN data rates

—

10,100,1000 Mbit/s

—

Fiber ethernet cabling technology

—

1000BASE‑LX

—

Jumbo frames support

—

Yes

—

Maximum data transfer rate

100 Mbit/s

1000 Mbit/s

100 Mbit/s

Networking standards

—

IEEE 802.1Q

IEEE 802.1Q

Packet forwarding rate (1 Gbps)

—

—

1488000 pps

Packet forwarding rate (10 Mbps)

—

—

14880 pps

Packet forwarding rate (100 Mbps)

—

—

148800 pps

VLAN support

—

Yes

Yes

Certificates

Certification

—

UL60950-1 EN60950-1 FCC Class A EN55022 Class A CISPR 22 Class A C-TICK VCCI

—

Ports & interfaces

Connectivity technology

—

Wired

Wired

Ethernet LAN (RJ-45) ports

1

1

—

Fiber optic connector

SC

LC

SC

Fiber ports quantity

—

2

—

Weight & dimensions

Depth

—

101.6 mm

91.4 mm

Height

—

21.8 mm

21.6 mm

Weight

—

170 g

113 g

Width

—

56 mm

31.8 mm

Performance

Fiber cable diameters supported (core/cladding)

—

—

50/125,62.5/125 µm

Fiber mode structure

—

Single-mode

Multi-mode

Maximum transfer distance

—

10000 m

2000 m

Rx power (max)

—

—

-34 dBmW

Rx power (min)

—

—

-32 dBmW

Tx power (max)

—

—

-14 dBmW

Tx power (min)

—

—

-22.5 dBmW

Wavelength

—

1310 nm

1310 nm

Logistics data

Harmonized System (HS) code

—

85176990

—

Features

Internal

No

No

No

LED indicators

—

—

Yes

Product colour

Grey

Grey

Grey

Operational conditions

Operating altitude

—

0 - 3048 m

0 - 3048 m

Operating relative humidity (H-H)

—

5 - 95%

5 - 95%

Operating temperature (T-T)

—

0 - 50 °C

0 - 40 °C

Storage relative humidity (H-H)

—

5 - 95%

5 - 95%

Storage temperature (T-T)

—

-30 - 70 °C

-15 - 65 °C
