Product Comparison

Technical Specifications

Only show the difference

Feature

Brand: ALLIED TELESIS|SKU: AT-GS970M/18-30

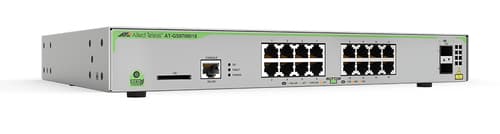

Allied Telesis CentreCOM AT-GS970M/18 - Switch - L3 - Managed - 16 x 10/100/1000 + 2 x SFP (mini-GBIC) (uplink) - desktop, rack-mountable

£423.12

Stock: 0

Brand: ALLIED TELESIS|SKU: AT-X530L-28GTX-30

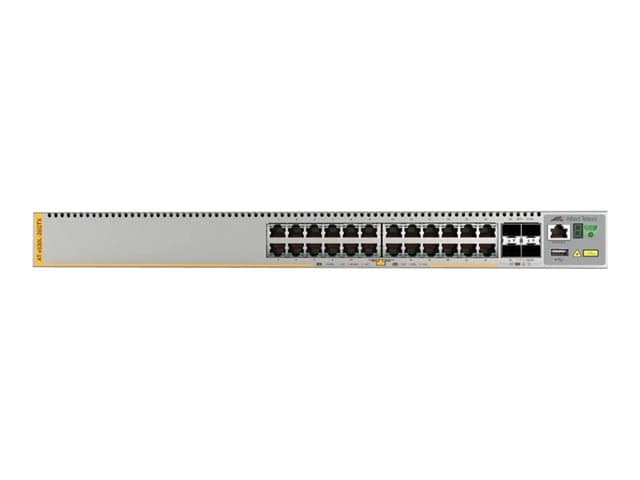

Allied Telesis AT X530L-28GTX

£1544.95

Stock: 2

Brand: ALLIED TELESIS|SKU: AT-X530L-28GPX-30

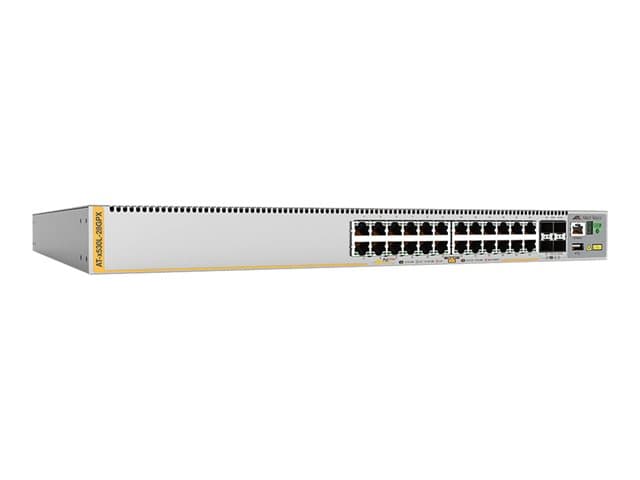

Allied Telesis AT x530L-28GPX

£2569.55

Stock: 2

Brand: ALLIED TELESIS|SKU: AT-X530L-52GPX-30

Allied Telesis AT x530L-52GPX - Switch - L3 - Managed - 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink) - rack-mountable - PoE+ (740 W)

£3322.39

Stock: 2

Brand: ALLIED TELESIS|SKU: AT-IE220-10GHX-80

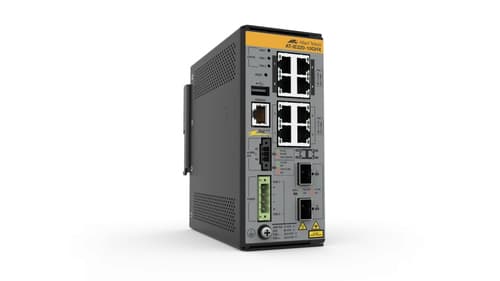

Allied Telesis AT IE220-10GHX - Switch - L2+ - Managed - 8 x 10/100/1000Base-T + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink) - DIN rail mountable, wall-mountable - PoE++ (240 W)

£920.93

Stock: 2

General

Authentication Method

—

Secure Shell (SSH), RADIUS, X.509 certificates, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)

—

Capacity

—

Virtual interfaces (VLANs): 4094, Packet buffer size: 3 MB, OpenFlow flows: up to 1250

Virtual interfaces (VLANs): 4094 Packet buffer size: 3 MB OpenFlow flows: up to 1250

—

Compliant Standards

—

IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, X.509, IEEE 802.1ad, IEEE 802.1v, ANSI/TIA-1057, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, ITU-T G.8032

—

Device Type

—

Switch - 28 ports - L3 - Managed - stackable

—

Enclosure Type

—

Rack-mountable 1U

—

Encryption Algorithm

—

DES, Triple DES, RSA, MD5, TLS, SHA-1, SSL 3.0, SSL 2.0, PEAP, TTLS, SHA-2, TLS 1.2, CRL

—

Features

—

DHCP support, BOOTP support, ARP support, OCSP support, Syslog support, DoS attack prevention, DiffServ support, SNTP support, sFlow, DHCP snooping, ACL support, QoS, MLD snooping, DAI, PVST+, STP Root Guard, UDLD, LACP support, LLDP support, DHCP relay, RSPAN, DNS relay, DHCP client, Energy Efficient Ethernet, MIB, NAC, GVRP, 802.1x authentication, ERPS, MLD proxy, IP source guard, EPSRing, VCStack, BPDU, ICMP, black hole routing, CPP, AMF, BIST, Cable fault locator (TDR), DDM, AAA, Loop Guard, VLAN mirroring, DNS client, NTP client, CFM, LLDP-MED, storm protection, UDP, proxy ARP, EEE, VACM, router advertisement guard, PPP

—

Flash Memory

—

256 MB

—

Jumbo Frame Support

—

10KB

—

MAC Address Table Size

—

16K entries

—

Max Units In A Stack

—

Performance

—

Switching capacity: 128 Gbps, Forwarding rate: 95.2 Mpps, Stacking bandwidth: 40 Gbps, Latency (10 Mbps): 29.91, Latency (100 Mbps): 6.06, Latency (1 Gbps): 3.98, Latency (10 Gbps): 1.63

Switching capacity: 128 Gbps Forwarding rate: 95.2 Mpps Stacking bandwidth: 40 Gbps Latency (10 Mbps): 29.91 Latency (100 Mbps): 6.06 Latency (1 Gbps): 3.98 Latency (10 Gbps): 1.63

—

PoE Budget

—

740 W

—

Ports

—

24 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)

—

Power Over Ethernet (PoE)

—

PoE+

—

RAM

—

1 GB DDR3 SDRAM

—

Remote Management Protocol

—

SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, SLP, SCP, SNMP 6, SSH 6, SFTP, SMTP, NTP, ICMP, DHCP, IPv6, RSTP, TACACS+, RADIUS

—

Routing Protocol

—

OSPF, RIP, BGP-4, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, IGMPv3, OSPF for IPv6, OSPFv3, PIM-SSM, ECMP, policy-based routing (PBR), RIPng, MLDv2, MLD, VRRPv3, CIDR, MSTP, RSTP

—

Status Indicators

—

Status, fault

—

Subtype

—

Gigabit Ethernet

—

Power

AC input frequency

50 - 60 Hz

—

AC input voltage

100 - 240 V

—

Input current

2.4 A

—

Input voltage

—

37 - 57 V

Installed Qty

—

Max Supported Qty

—

Power consumption (max)

18 W

—

18.5 W

Power Consumption Operational

—

39 Watt

890 Watt

—

Power Device

—

Internal power supply

—

Power source

—

DC/PoE

Voltage Required

—

AC 120/230 V (50/60 Hz)

—

Network

10G support

—

Broadcast storm control

Yes

—

Copper ethernet cabling technology

10BASE-T, 100BASE-T, 1000BASE-T

—

Ethernet Ring Protection Switching (ERPS)

Yes

—

Fast leave

Yes

—

Flow control support

Yes

—

Yes

Full duplex

Yes

—

Yes

Link aggregation

Yes

—

Yes

Networking standards

IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

—

IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.3bt

Number of VLANs

4094

—

4094

Port mirroring

Yes

—

Spanning tree protocol

Yes

—

Virtual LAN features

Private VLAN, Voice VLAN, Tagged VLAN, Protocol-based VLAN, Port-based VLAN

—

VLAN support

Yes

—

Yes

Miscellaneous

Compliant Standards

—

FCC Class A certified, UL, cUL, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, EN 60950-1, EN 60825-1, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A, China RoHS, EN 55032 Class A, EU RoHS

—

Localisation

—

United Kingdom

—

Security

Access Control List (ACL)

Yes

—

Yes

Authentication

MAC-based authentication, Port-based authentication, Web-based authentication

—

MAC-based authentication, Port-based authentication

Authentication type

AAA, IEEE 802.1x, Network Access Control (NAC), RADIUS

—

BPDU filtering/protection

Yes

—

Yes

DHCP features

DHCP snooping, DHCP client

—

DHCP client, DHCP snooping

IGMP snooping

Yes

—

Yes

Loop protection

Yes

—

MAC address filtering

Yes

—

Neighbor discovery snooping

Yes

—

Password protection

Yes

—

Root protection

Yes

—

Security algorithms

3DES, AES, MD5, PEAP, RSA, SHA-1, SHA-2, SSH, SSH-2, SSL/TLS, TTLS

—

802.1x RADIUS

SSH/SSL support

Yes

—

Management features

ARP inspection

Yes

—

Yes

Configuring Location Settings (CLI)

—

Yes

MIB support

SNMP MIB

—

Quality of Service (QoS) support

Yes

—

Yes

Switch layer

—

Switch type

Managed

—

Managed

System event log

Yes

—

Yes

Traffic classification

Yes

—

Yes

Traffic shaping

—

Yes

Web-based management

Yes

—

Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

—

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

—

Gigabit Ethernet (10/100/1000)

Combo SFP ports quantity

—

Compatible memory cards

SD, SDHC

—

Console port

RS-232

—

Fiber optic connector

SFP

—

Gigabit Ethernet (copper) ports quantity

—

Installed SFP modules quantity

—

Installed SFP+ modules quantity

—

USB 2.0 ports quantity

—

Certificates

Certification

FCC Class A, EN55022 Class A, EN61000-3-2, EN61000-3-3, VCCI Class A, CISPR Class A

—

Logistics data

Country of origin

China

—

Harmonized System (HS) code

—

8517.62.0050

Weight & dimensions

Depth

231 mm

—

137 mm

Height

44 mm

—

155 mm

Weight

2.4 kg

—

Width

341 mm

—

65 mm

Weight & Dimensions

Depth

—

32.3 cm

42.1 cm

—

Height

—

4.4 cm

—

Weight

—

4.4 kg

6.2 kg

—

Width

—

44.1 cm

—

Design

DIN rail mounting

—

Yes

Form factor

—

Housing material

—

Aluminium, Metal

International Protection (IP) code

—

IP30

LED indicators

Yes

—

Product colour

Grey

—

Grey

Rack mounting

Yes

—

Safety

EN60950-1 (TUV), UL 60950- 1(cULus), EN60825-1

—

Wall mountable

Yes

—

Yes

Performance

Export Control Classification Number (ECCN)

—

5A992C

Flash memory

64 MB

—

128 MB

Internal memory

512 MB

—

512 MB

Memory type

DDR-SDRAM

—

Noise level

29 dB

—

Telnet

Yes

—

Optical fiber

Fiber ethernet cabling technology

100BASE-X, 1000BASE-X

—

Data transmission

Forwarding rate

26.8 Mpps

—

Jumbo frames

10000

—

Jumbo frames support

Yes

—

Yes

Latency (1 Gbps)

3.4 µs

—

Latency (10-100 Mbps)

7.9 µs

—

MAC address table

16000 entries

—

16000 entries

Packet buffer memory

1.5 MB

—

2 MB

Static route

Yes

—

Switching capacity

36 Gbit/s

—

56 Gbit/s

Throughput

—

41.7 Mpps

Operational conditions

Heat dissipation

61 BTU/h

—

Non-operating altitude

0 - 4000 m

—

Operating altitude

0 - 3000 m

—

Operating relative humidity (H-H)

5 - 90%

—

Operating temperature (T-T)

0 - 50 °C

—

Storage relative humidity (H-H)

5 - 95%

—

Storage temperature (T-T)

-25 - 70 °C

—

Environmental Parameters

Humidity Range Operating

—

5 - 90% (non-condensing)

—

Humidity Range Storage

—

5 - 95% (non-condensing)

—

Max Operating Temperature

—

50 °C

—

Max Storage Temperature

—

70 °C

—

Min Operating Temperature

—

0 °C

—

Min Storage Temperature

—

-25 °C

—

Packaging data

Included power plug types

—

Package depth

360 mm

—

Package height

150 mm

—

Package weight

4 kg

—

Package width

430 mm

—

Connections & Expansion

Interfaces

—

24 x 10/100/1000 Base-T RJ-45, 4 x 1000Base-X/10GBase-X SFP+ uplink, 2 x network stack device

24 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W 4 x 1000Base-X/10GBase-X SFP+ uplink 2 x network stack device

—

Protocols

Management protocols

—

SNMPv1/v2c/v3

Routing protocols

RIP, RIP-2

—

Multicast features

Multicast support

Yes

—

Yes

Power over Ethernet (PoE)

—

Yes

Power over Ethernet 4PPoE (PoE++) ports quantity

—

Power over Ethernet plus (PoE+) ports quantity

—

Dimensions & Weight (Shipping)

Shipping Depth

—

44 cm

54.8 cm

—

Shipping Height

—

15.3 cm

—

Shipping Weight

—

6.3 kg

8.4 kg

—

Shipping Width

—

57.7 cm

—
