Compare Asus Motherboards
Comparing 5 products side-by-side — specifications, pricing and stock. Showing Asus products in the Motherboards category.
| Specification | Asus ASUS HYPER M.2 X16 CARD V2 - Interface adapter - M.2 - Expansion Slot to M.2 - M.2 Card - PCIe 3.0 x1690MC06P0-M0EAY0 £29.73 £35.68 inc VAT | ||||
|---|---|---|---|---|---|
| General | |||||

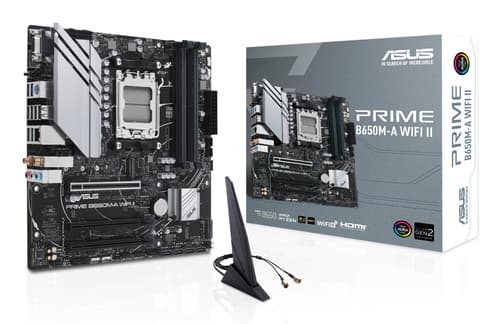

| Chipset Type | AMD B650 | — | — | — | — |
| Compatible Processors | Ryzen (supports Ryzen 7000 Series) | — | — | — | — |
| Max Processors Qty | 1 | — | — | — | — |
| Processor Socket | Socket AM5 | — | — | — | — |
| Product Type | Motherboard - micro ATX | — | — | — | — |
| Processor | |||||
| Compatible processor series | — | Intel Core Ultra (Series 2) | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold | Intel Core Ultra (Series 2) | — |
| Processor manufacturer | — | Intel | Intel | Intel | — |
| Processor socket | — | LGA 1851 (Socket V1) | LGA 1700 | LGA 1851 (Socket V1) | — |
| Supported processor sockets | — | — | LGA 1700 | — | — |
| Memory | |||||
| ECC сompatibility | — | Non-ECC | Non-ECC | Non-ECC | — |
| Maximum internal memory | — | 256 GB | 128 GB | 192 GB | — |
| Memory channels | — | — | Dual-channel | Dual-channel | — |
| Memory slots type | — | DIMM | DIMM | DIMM | — |
| Number of memory slots | — | 4 | 4 | 4 | — |
| Supported memory clock speed (max) | — | 8600 MHz | 5333 MHz | 8600 MHz | — |
| Supported memory clock speeds | — | — | 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4266,4400,4600,4800,5000,5066,5333 MHz | — | — |
| Supported memory types | — | DDR5-SDRAM | DDR4-SDRAM | DDR5-SDRAM | — |
| Unbuffered memory | — | Yes | Yes | Yes | — |
| Graphics | |||||
| Maximum resolution | — | — | 3840 x 2160 pixels | — | — |
| On-board graphics card | — | — | — | No | — |
| Parallel processing technology support | — | Not supported | Not supported | Not supported | — |
| Network | |||||
| Bluetooth | — | Yes | Yes | Yes | — |
| Bluetooth version | — | 5.4 | 5.2 | 5.4 | — |
| Ethernet interface type | — | 2.5 Gigabit Ethernet | 2.5 Gigabit Ethernet | 2.5 Gigabit Ethernet | — |
| Ethernet LAN | — | Yes | Yes | Yes | — |
| Top Wi-Fi standard | — | Wi-Fi 7 (802.11be) | Wi-Fi 6 (802.11ax) | Wi-Fi 7 (802.11be) | — |
| Wake-on-LAN ready | — | — | Yes | — | — |
| Wi-Fi | — | Yes | Yes | Yes | — |
| Wi-Fi standards | — | — | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) | — |
| Miscellaneous | |||||
| Cables Included | 2 x Serial ATA cable | — | — | — | — |
| Depth | 24.4 cm | — | — | — | — |
| Included Accessories | ASUS Wi-Fi moving aerial, IO shield, M.2 screw package | — | — | — | — |
| Software Included | Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 2+, ASUS AI Suite III, PC Cleaner, ASUS CPU-Z, MyAsus, Norton AntiVirus (Trial), ASUS TurboV EVO Utility, WinRAR | — | — | — | — |
| Width | 24.4 cm | — | — | — | — |
| Internal I/O | |||||
| 12V power connector | — | Yes | Yes | Yes | — |
| ATX Power connector (24-pin) | — | Yes | Yes | Yes | — |
| Chassis intrusion connector | — | — | — | Yes | — |
| CPU fan connector | — | Yes | Yes | Yes | — |
| EPS power connector (8-pin) | — | Yes | Yes | Yes | — |
| Front panel audio connector | — | Yes | Yes | Yes | — |
| Number of chassis fan connectors | — | 4 | 2 | 4 | — |
| Number of COM connectors | — | — | — | 1 | — |
| Number of CPU fan connectors | — | 1 | — | — | — |
| Number of SATA connectors | — | — | — | 0 | — |
| Number of SATA II connectors | — | — | — | 0 | — |
| Number of SATA III connectors | — | 4 | 4 | 4 | — |
| RGB LED pin header | — | — | Yes | Yes | — |
| S/PDIF out connector | — | — | Yes | — | — |
| Thunderbolt headers | — | 1 | — | 1 | — |
| TPM connector | — | — | Yes | — | — |
| USB 2.0 connectors | — | 1 | 3 | 2 | — |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | — | 1 | 3 | 2 | — |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | — | 1 | 0 | 1 | — |
| Packaging content | |||||
| Antenna included | — | — | Yes | — | — |
| Cables included | — | — | SATA | SATA | — |
| Screws included | — | — | Yes | — | — |
| Features | |||||
| Audio chip | — | Realtek ALC1220P | — | Realtek ALC1220P | — |
| Audio output channels | — | 7.1 channels | 7.1 channels | 7.1 channels | — |
| Bandwidth | — | — | — | — | 128 Gbit/s |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode | — | — | — | — |
| BIOS Type | AMI | — | — | — | — |
| Component for | — | PC | PC | PC | — |
| Cooling type | — | — | — | Passive | — |
| Hardware Features | ASUS EZ DIY, ASUS OptiMem II, BIOS FlashBack button, jack retasking, audio jack detect technology, ASUS 5X Protection III, ASUS DIGI+ VRM, LANGuard, ASUS Overvoltage Protection, ASUS SafeSlot Core+, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-DIMM, Q-Slot, VRM heatsink design, Q-LED Core, CrashFree BIOS 3, ASUS TurboV EVO, ASUS Aura Sync, DIY Friendly Design, Preboot eXecution Environment (PXE) | — | — | — | — |
| Motherboard chipset | — | Intel B860 | Intel B760 | Intel Z890 | — |
| Motherboard chipset family | — | Intel | Intel | Intel | — |
| Motherboard form factor | — | ATX | micro ATX | ATX | — |
| Power source type | — | — | — | ATX | — |
| Product colour | — | White | Black | Black | — |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME | — | — | — | — |
| Windows operating systems supported | — | Windows 11 | Windows 10 x64, Windows 11 x64 | Windows 11 | — |
| Other features | |||||
| Back-to-BIOS button | — | — | — | Yes | — |
| mSATA ports quantity | — | — | — | 0 | — |
| Quick installation guide | — | — | — | Yes | — |
| Weight | — | 1.4 kg | — | — | — |
| BIOS | |||||
| BIOS memory size | — | 256 Mbit | 128 Mbit | 256 Mbit | — |
| BIOS type | — | UEFI AMI | UEFI AMI | UEFI AMI | — |
| Clear CMOS button | — | Yes | — | — | — |
| Clear CMOS jumper | — | — | Yes | — | — |
| Supported RAM | |||||
| Bus Clock | 7200 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 6600 MHz (O.C.), 6400 MHz (O.C.), 6200 MHz (O.C.), 6000 MHz (O.C.), 5800 MHz (O.C.), 5600 MHz (O.C.), 5400 MHz (O.C.), 5200 MHz, 5000 MHz, 4800 MHz | — | — | — | — |
| Features | Dual channel memory architecture, AMD EXPO technology | — | — | — | — |
| Max Size | 192 GB | — | — | — | — |
| Registered or Buffered | Unbuffered | — | — | — | — |
| Supported RAM Integrity Check | Non-ECC, on-die ECC, ECC | — | — | — | — |
| Technology | DDR5 | — | — | — | — |
| Audio | |||||
| Compliant Standards | High Definition Audio | — | — | — | — |
| Type | HD Audio (8-channel) | — | — | — | — |
| Weight & dimensions | |||||
| Depth | — | 244 mm | 244 mm | 244 mm | 13 mm |
| Height | — | 50 mm | — | — | 96 mm |
| Width | — | 305 mm | 244 mm | 305 mm | 202 mm |
| Rear panel I/O ports | |||||
| DisplayPort version | — | — | 1.4 | 1.4 | — |
| DisplayPorts quantity | — | 1 | 1 | 1 | — |
| DVI-D ports quantity | — | 0 | 0 | 0 | — |
| Ethernet LAN (RJ-45) ports | — | 1 | 1 | 1 | — |
| HDMI ports quantity | — | 1 | 2 | 1 | — |
| HDMI version | — | — | 2.1 | 2.1 | — |
| Headphone outputs | — | — | 3 | 1 | — |
| Line-in | — | — | — | Yes | — |
| Microphone in | — | Yes | — | — | — |
| PS/2 ports quantity | — | — | 1 | — | — |
| S/PDIF out port | — | Yes | — | Yes | — |
| Thunderbolt ports quantity | — | — | — | 1 | — |
| USB 2.0 ports quantity | — | 4 | 4 | 0 | — |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | — | 2 | 0 | 3 | — |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | — | 0 | 0 | 0 | — |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | — | 2 | 2 | 3 | — |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | — | 1 | 0 | 1 | — |
| USB connector type | — | — | USB Type-A | — | — |
| USB4 Gen 2x2 ports quantity | — | 1 | — | — | — |
| VGA (D-Sub) ports quantity | — | 0 | 0 | 0 | — |
| WiFi-AP antenna jack | — | — | 1 | 2 | — |
| Ports & interfaces | |||||
| Expansion card standard | — | — | — | — | PCIe 3.0 |
| Host interface | — | — | — | — | PCIe |
| Number of M.2 (M) slots | — | — | — | — | 1 |
| Output interface | — | — | — | — | M.2 |
| Connections & Expansion | |||||
| Expansion Slots | 1 x CPU, 4 x DIMM 288-pin, 1 x PCIe 4.0 x16, 2 x PCIe 4.0 x16 (x1 mode), 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) | — | — | — | — |
| Interfaces | 1 x HDMI, 1 x DisplayPort, 1 x VGA, 2 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1, 4 x USB 2.0, 1 x LAN (2.5Gigabit Ethernet), 1 x audio line-out - mini-jack, 1 x audio line-in - mini-jack, 1 x microphone - mini-jack, 2 x aerial, 1 x PS/2 keyboard / mouse | — | — | — | — |
| Internal Interfaces | 1 x USB-C 3.2 Gen 1 - header, 2 x USB 3.2 Gen 1 - header, 4 x USB 2.0 - header, 1 x serial - header, 1 x audio - header, 1 x SPDIF out - header, 1 x speaker - header, 1 x SPI - header | — | — | — | — |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector | — | — | — | — |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10, PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10, PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 | — | — | — | — |
| Logistics data | |||||
| Harmonized System (HS) code | — | — | — | — | 84733020 |
| Design | |||||
| Internal | — | — | — | — | Yes |
| Packaging data | |||||
| Manual | — | — | — | — | Yes |
| Package depth | — | 273 mm | — | 273 mm | — |
| Package height | — | 70 mm | — | 68 mm | — |
| Package weight | — | 1.68 kg | — | 2.34 kg | — |
| Package width | — | 355 mm | — | 353 mm | — |
| Quantity | — | — | — | — | 1 |
| LAN | |||||
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 | — | — | — | — |
| Storage controllers | |||||
| Number of HDDs supported | — | 4 | — | 4 | — |
| Number of storage drives supported | — | 8 | 6 | 8 | — |
| RAID levels | — | 0, 1, 5, 10 | 0, 1, 5, 10 | 0, 1, 5, 10 | — |
| RAID support | — | Yes | Yes | Yes | — |
| Supported storage drive interfaces | — | M.2, SATA III | M.2, PCI Express 4.0, SATA III | M.2, SATA III | — |
| Supported storage drive types | — | HDD & SSD | HDD & SSD | HDD & SSD | — |
| Expansion slots | |||||
| Number of M.2 (M) slots | — | — | — | 4 | — |
| PCI Express x16 (Gen 4.x) slots | — | 1 | 3 | 1 | — |
| PCI Express x16 (Gen 5.x) slots | — | — | — | 1 | — |
| PCI Express x4 (Gen 1.x) slots | — | — | — | 2 | — |
| PCI Express x4 (Gen 4.x) slots | — | — | — | 1 | — |
