Compare CISCO ENT NET Switch Tranceivers (GBIC/SFP)
Comparing 5 products side-by-side — specifications, pricing and stock. Showing CISCO ENT NET products in the Switch Tranceivers (GBIC/SFP) category.
| Specification | |||||
|---|---|---|---|---|---|
| General | |||||

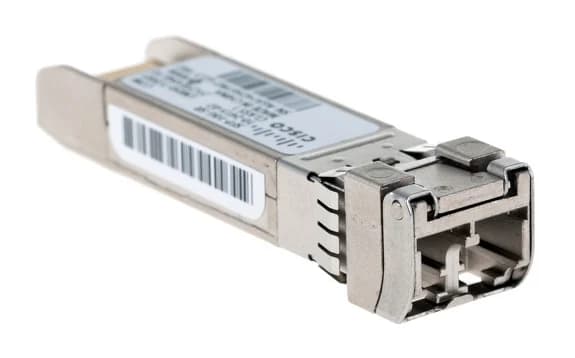

| Device Type | SFP+ transceiver module | SFP (mini-GBIC) transceiver module | SFP (mini-GBIC) transceiver module | SFP28 transceiver module | SFP28 transceiver module |
| Form Factor | Plug-in module | Plug-in module | Plug-in module | Plug-in module | Plug-in module |
| Networking | |||||
| Cabling Type | 10GBase-SR | 1000Base-T | Cabling Type | 25GBase-LR | 25GBase-SR |
| Compliant Standards | IEEE 802.3ae | IEEE 802.3 | — | — | — |
| Connectivity Technology | Wired | Wired | Wired | Wired | Wired |
| Data Link Protocol | 10GbE | 1GbE | 1GbE | 25GbE, 10GbE | 25GbE |
| Data Transfer Rate | 10 Gbps | 1 Gbps | 1 Gbps | 25 Gbps | 25 Gbps |
| Features | — | Full duplex capability, hot swap module replacement | — | — | — |
| Max Transfer Distance | 300 m | — | — | — | 100 m |
| Optical Wave Length | 850 nm | — | 1310 nm | — | 850 nm |
| Connections & Expansion | |||||
| Compatible Slots | 1 x SFP+ | — | 1 x SFP (mini-GBIC) | — | — |
| Interfaces | 1 x Ethernet 10GBase-SR - LC/PC multi-mode x 2 | 1 x Ethernet 1000Base-T - RJ-45 | 1 x Ethernet 1000Base-LX - LC single-mode x 2 | 1 x Ethernet 25GBase-LR | 1 x Ethernet 25GBase-SR - LC multi-mode x 2 |
| Weight & dimensions | |||||
| Depth | 5.7 cm | — | — | — | — |
| Height | 0.9 cm | — | — | — | — |
| Weight | 75 g | — | — | — | — |
| Width | 1.3 cm | — | — | — | — |
| Compatibility Information | |||||
| Designed For | Cisco Catalyst ESS9300 Embedded Series, Switch Module 3012 for IBM BladeCenter, Switch Module 3110G for IBM BladeCenter, Switch Module 3110X for IBM BladeCenter Cisco Nexus 5010 | Cisco 20-port 1-Gigabit Ethernet Modular Port Adapter Cisco Catalyst ESS9300 Embedded Series Cisco Integrated Services Router 1111, 1112, 1113, 1116, 1117, 1118 Cisco Nexus 7700 F3-Series 48-Port Fiber 1 and 10G Ethernet Module, 93108TC-EX, 93180YC-FX, 9336C-FX2, 9372PX, 9372PX-E, 9396PX, 9396PX Hot Air Exhaust | Cisco 3270, 3270 Rugged Integrated Services Router Card, Cisco Catalyst ESS9300 Embedded Series | P/N: A9903-8HG-PEC=, A9K-4HG-FLEX-FC=, ASR-9006-AC-V2, ASR-9006-DC-V2, ASR-9006-MIG-KIT, ASR-9006-SYS, ASR-9010-AC-V2, ASR-9010-DC-V2, ASR-9010-MIG-KIT, ASR-9010-SYS, ASR-9902, ASR-9903, ASR-9904, ASR-9904-AC, ASR-9904-DC, ASR-9904-LS-BUN, ASR-9904-MIG-KIT, ASR-9906, ASR-9906-LS-BUN, ASR-9906-MIG-KIT, ASR-9910, ASR-9910-LS-BUN, ASR-9910-MIG-KIT, ASR-9912, ASR-9912-AC, ASR-9912-DC, ASR-9912-LS-BUN, ASR-9912-MIG-KIT, ASR-9922, ASR-9922-AC, ASR-9922-DC, ASR-9922-LS-BUN, ASR-9922-MIG-KIT, C9606R, C9606R-1A, C9606R-48S-BN-A, C9606R-48Y24C-BN-A, HX-FI-64108, HX-FI-6454, N3K-C34180YC, N3K-C34180YC=, N540-24Z8Q2C-SYS, N540-24Z8Q2C-SYS=, N9K-C92348GC-X, N9K-C93108TC-FX3P, N9K-C93180-FX3-B8C, N9K-C93180YC-EX, N9K-C93180YC-EX_BR, N9K-C93180YC-EX=, N9K-C93180YC-EX-24, N9K-C93180YC-EX-B, N9K-C93180YC-EX-RF, N9K-C93180YC-FX, N9K-C93180YC-FX=, N9K-C93180YC-FX-24, N9KC93180YCFX24-H, N9K-C93180YC-FX3, N9K-C93180YC-FX3S, N9K-C93180YC-FX-RF, N9K-C93240YC-FX2, N9K-C93240YC-FX2=, N9K-C9332C, N9K-C9332C=, N9K-C9336C-FX2-E, N9K-C9364C, N9K-C9364C=, N9K-C9364C-RF, N9K-X97160YC-EX, N9K-X97160YC-EX=, N9K-X97160YC-EX-RF, NC55-32T16Q4H-AT=, NCS-5504, NCS-5504-MBH, NCS-5504-SYS, NCS-5508, NCS-5508-GOOGLE, NCS-5508-MBH, NCS-5508-SYS, NCS-5516, NCS-5516-MBH, NCS-5516-SYS, NCS-5516-SYS-BUN1, NCS-55A1-24Q6H-S, NCS-55A1-24Q6H-SS, NCS-55A1-24Q-DTCR, NCS-55A1-48Q6H, NCS-55A1-48Q-DTC, NCS-55A2-MOD-HD-S, NCS-55A2-MODH-SYS, NCS-55A2-MOD-HX-S, NCS-55A2-MOD-S, NCS-55A2-MOD-S=, NCS-55A2-MOD-SE-S, NCS-55A2MODSH-SYS, NCS-55A2-MODS-SYS, NCS-55A2-MOD-SYS, NCS-55A2-MOD-SYS=, NCS-55A2-MODX-SYS, UCS-FI-64108, UCS-FI-64108-U, UCS-FI-6454, UCS-FI-6454-U | Cisco Nexus 93180YC-FX, 93240YC-FX2, 9348GC-FXP, X97160YC-EX |
| Environmental Parameters | |||||
| Max Operating Temperature | 70 °C | 85 °C | 85 °C | — | — |
| Min Operating Temperature | 0 °C | -5 °C | -40 °C | — | — |
| Manufacturer Warranty | |||||
| Service & Support | Limited warranty - 90 days | — | Limited warranty - 1 year | — | — |
