Compare D-Link IoT Networking - Switches
Comparing 2 products side-by-side — specifications, pricing and stock. Showing D-Link products in the IoT Networking - Switches category.

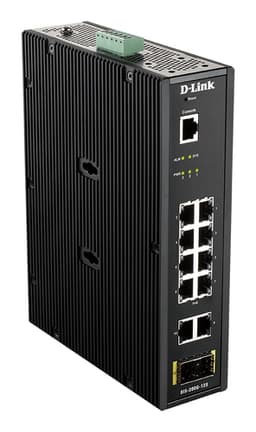

| Specification | Current product D-Link D-Link DIS 200G-12S - Switch - Managed - 10 x 10/100/1000 + 2 x SFP - DIN rail mountable, wall-mountable - AC 120/230 V / DC 46 - 54 VDIS-200G-12S £369.08 £442.90 inc VAT | D-Link D-Link DWP 1010 - Outdoor 5G Kit - wireless cellular modem - 5G LTE - 1 Gbps - IEEE 802.3i, IEEE 802.3u, IEEE 802.3at - with M15 routerDWP-1010/KT/B £281.96 £338.35 inc VAT |
|---|---|---|
| Power | ||
| DC input voltage | 12 - 48 V | — |
| Power consumption (max) | 10.26 W | — |
| Network | ||
| 10G support | No | — |
| Active link detection | Yes | — |
| Auto MDI/MDI-X | Yes | — |
| Auto-negotiation | Yes | — |
| Broadcast storm control | Yes | — |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T | — |
| Flow control support | Yes | — |
| Full duplex | Yes | — |
| Link aggregation | Yes | — |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z | — |
| Number of VLANs | 4094 | — |
| Port mirroring | Yes | — |
| Spanning tree protocol | Yes | — |
| Virtual LAN features | Voice VLAN, Tagged VLAN, Port-based VLAN | — |
| VLAN support | Yes | — |
| Performance | ||
| Antenna type | — | Internal |
| Antennas quantity | — | 5 |
| Mean time between failures (MTBF) | 276773 h | — |
| Security | ||
| Authentication | Port-based authentication | — |
| Authentication type | RADIUS | — |
| DHCP features | DHCP client | — |
| IGMP snooping | Yes | — |
| Queue scheduling algorithms | SPQ, Weighted Round Robin (WRR) | — |
| Security algorithms | 802.1x RADIUS, SSL/TLS | WPA, WPA2, WPA3 |
| Ports & interfaces | ||
| Basic switching RJ-45 Ethernet ports quantity | 10 | — |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) | — |
| Console port | RJ-45 | — |
| Ethernet LAN (RJ-45) ports | — | 2 |
| Gigabit Ethernet (copper) ports quantity | 10 | — |
| Installed SFP modules quantity | 0 | — |
| Installed SFP+ modules quantity | 0 | — |
| SFP module slots quantity | 2 | — |
| Certificates | ||
| Certification | CE, FCC, BSMI EN 61000-4-2 ESD EN 61000-4-3 RS EN 61000-4-4 EFT EN 61000-4-5 EN 61000-4-6 CS EN 61000-4-8 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 | — |
| Management features | ||
| Configuring Location Settings (CLI) | Yes | — |
| Quality of Service (QoS) support | Yes | — |
| Switch layer | L2 | — |
| Switch type | Managed | — |
| System event log | Yes | — |
| Web-based management | Yes | — |
| Weight & dimensions | ||
| Depth | 53 mm | 105.4 mm |
| Height | 210 mm | 210.4 mm |
| Weight | 1.63 kg | 760 g |
| Width | 171.2 mm | 144.8 mm |
| Design | ||
| Device type | — | Cellular network router |
| DIN rail mounting | Yes | — |
| Electromagnetic compatibility | CISPR 22, FCC Part 15B Class A | — |
| Housing material | Metal | — |
| International Protection (IP) code | IP30 | — |
| LED indicators | Yes | Power, Status |
| Number of fans | 0 fan(s) | — |
| Product colour | Black | White |
| Rack mounting | Yes | — |
| Reset button | — | Yes |
| Wall mountable | Yes | — |
| Optical fiber | ||
| Fiber ethernet cabling technology | 1000BASE-X | — |
| Data transmission | ||
| Forwarding rate | 17.85 Mpps | — |
| Jumbo frames | 9216 | — |
| Jumbo frames support | Yes | — |
| MAC address table | 8000 entries | — |
| Store-and-forward | Yes | — |
| Switching capacity | 24 Gbit/s | — |
| Logistics data | ||
| Harmonized System (HS) code | 85176990 | — |
| Operational conditions | ||
| Heat dissipation | 35.01 BTU/h | — |
| Operating relative humidity (H-H) | 0 - 95% | 10 - 95% |
| Operating temperature (T-T) | -40 - 65 °C | -30 - 50 °C |
| Storage relative humidity (H-H) | 0 - 95% | — |
| Storage temperature (T-T) | -40 - 85 °C | -40 - 70 °C |
| Protocols | ||
| Management protocols | SNMP v1/v2c/v3, SNTP, Telnet | — |
| Multicast features | ||
| Multicast support | Yes | — |
| Ethernet LAN features | ||
| Networking standards | — | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u |
| Power over Ethernet (PoE) | ||
| Power over Ethernet (PoE) | No | — |
