Technical Specifications
General
API Supported
—
OpenCL 3.0, CUDA 11.6, DirectCompute, DirectX 12, Shader Model 6.6, OpenGL 4.6, Vulkan 1.3
—
—
—
Bus Type
—
PCI Express 4.0 x16
—
—
—
CUDA Cores
—
18176
—
—
—
Device Type
—
Graphics card
—
—
—
Features
—
568 NVIDIA third-generation Tensor Cores, 142 NVIDIA second-generation RT Cores, Error Correcting Codes (ECC) Memory, Active Thermal Solution, Nvidia CUDA technology, 91.1 Tflops peak single-precision floating point performance, 210.6 Tflops RT Core performance, 1457 Tflops tensor performance, Nvidia GPUDirect, NVIDIA Mosaic, NVIDIA RTX 10 support, NVIDIA RTX Experience, Quadro Sync 2, Nvidia Virtual GPU, NVIDIA GPUDirect Remote Direct Memory Access (RDMA) support, AV1 decode support, AV1 encode support, full-height dual-slot, HDCP
—
—
—
Graphics Engine
—

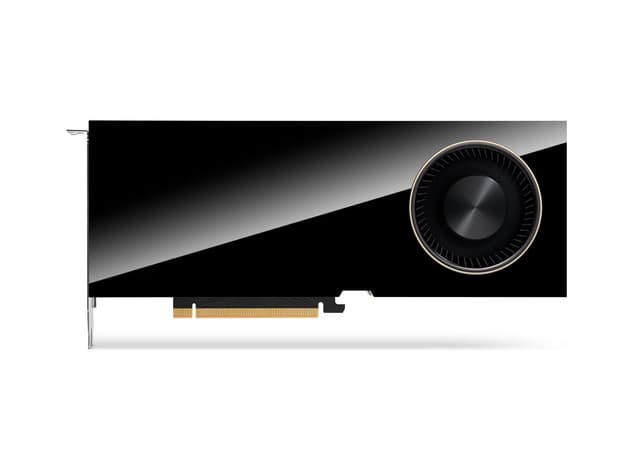

NVIDIA RTX 6000 Ada
—
—
—
Interfaces Details
—
4 x DisplayPort
—
—
—
Localisation
Region: United Kingdom
—
—
—
—
Max Monitors Supported
—
4
—
—
—
Max Resolution
—
7680 x 4320 at 60 Hz
—
—
—
Max Resolution Details
—
DisplayPort: 7680 x 4320 at 60 Hz (dual displays) / 5120 x 2880 at 60 Hz (four displays) / 4096 x 2160 at 120 Hz (four displays)
—
—
—
Product Form Factor
Mini PC
—
—
—
—
Type
Personal computer
—
—
—
—
VR Ready
—
Yes
—
—
—
Memory
Bandwidth
—
960 GBps
—
—
—
Bus Width
—
384-bit
—
—
—
Size
—
48 GB
—
—
—
Technology
—
GDDR6 SDRAM
—
—
—
Power
Device Type
Power supply
—
—
—
—
RAM
Configuration Features
Unified memory
—
—
—
—
Installed Size
128 GB
—
—
—
—
Technology
LPDDR5X SDRAM
—
—
—
—
Hard Drive
Capacity
1 x 4 TB
—
—
—
—
Features
NVM Express (NVMe) self-encrypting
—
—
—
—
Type
SSD - M.2
—
—
—
—
Miscellaneous
Compliant Standards
—
DisplayPort 1.4, HDCP 2.2
—
—
—
Depth
—
26.7 cm
—
—
—
Height
—
11.2 cm
—
—
—
Power Consumption Operational
—
300 Watt
—
—
—
Software Included
—
NVIDIA RTX Desktop Manager
—
—
—
Processor / Chipset
CPU
ARM Cortex-A725 + Cortex-X925
—
—
—
—
CPU Qty
2
—
—
—
—
Number of Cores
20-core
—
—
—
—
Networking
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, Bluetooth 5.3 LE, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n
—
—
—
—
Ethernet Controller
Mellanox ConnectX-7
—
—
—
—
Wireless LAN Supported
Yes
—
—
—
—
Weight & Dimensions
Depth
15 cm
—
—
—
—
Height
5.05 cm
—
—
—
—
Weight
1.2 kg
—
—
—
—
Width
15 cm
—
—
—
—
Graphics Controller
Floating Point Performance
1000 TFLOPS
—
—
—
—
Graphics Processor
NVIDIA Blackwell Tensor Core
—
—
—
—
Video Interfaces
HDMI
—
—
—
—
Connections & Expansion
Interfaces
1 x HDMI, 1 x 10 Gigabit Ethernet - RJ-45, 4 x USB - Type C
—
—
—
—
Monitor
Monitor Type
None.
—
—
—
—
Operating System / Software
OS Provided
Ubuntu
—
—
—
—
Software
NVIDIA DGX OS
—
—
—
—
System requirements
OS Required
—
Linux, Windows 10
—
—
—
Optical Storage
Type
No optical drive
—
—
—
—
