Product Comparison

Technical Specifications

Only show the difference

Feature

Brand: EATON|SKU: 5SC1500IRBS

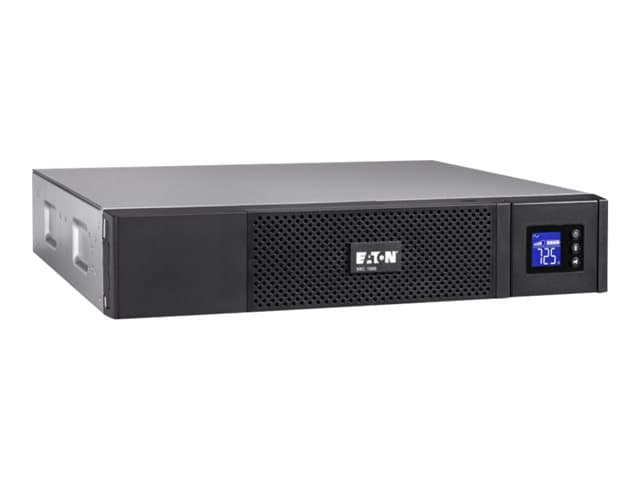

Eaton 5SC 1500iR

£779.60

Stock: 42

Brand: EATON|SKU: 5SC1000IRBS

Eaton 5SC 1000iR

£610.30

Stock: 14

Brand: EATON|SKU: 9PX3000IRTNBS

Eaton 9PX - Netpack - UPS (rack-mountable / external)

£2582.96

Stock: 8

Brand: EATON|SKU: 3P700UI

Eaton 3P Ellipse 700 USB IEC

£105.14

Stock: 6

Brand: EATON|SKU: 3P1300UI

Eaton 3P Ellipse 1300 USB IEC

£192.20

Stock: 7

General

Colour

Black

Black, silver

—

Device Type

UPS - rack-mountable

UPS - rack-mountable / external

—

Height (Rack Units)

—

Rack Size

—

19"

—

Battery

Capacity

9 Ah

—

Features

—

Sealed

—

Quantity

—

Run Time (Up To)

5 min at full load, 13 min at half load, 8 min at 70% load

5 min at full load, 12 min at half load, 8 min at 70% load

3 min at full load, 60 min at 300 Watts, 36 min at 500 Watts, 22 min at 800 Watts, 13 min at 1200 Watts, 7 min at 1800 Watts, 4 min at 2500 Watts

—

Technology

Lead Acid

—

Type

—

Expandable

—

Voltage Provided

12 V

—

Network

Remote Management Interface

RS-232, USB

Ethernet 10/100, RS-232, USB

—

Remote Management Protocol

—

Telnet, SNMP 3, HTTP, SSH, CLI, SMTP, DHCP, IPv6

—

Miscellaneous

Cables Included

USB cable, 2 x power cable (IEC), Serial cable

USB cable, 2 x power cable, (IEC) Serial cable

2 x power cable - external, USB cable - external, Serial cable - external, Power cable - external - 1.8 m

—

Compliant Standards

UL 1778, CB, IEC 62040-1-1, IEC 62040-2, EN 62040-1-1, EN 62040-2

TUV, CISPR 22 Class B, UL 1778, CB, IEC 62040-2, cULus, CSA 22.2, KC, EN 62040-2, EAC, RCM, IEC 62040-1, EN 62040-1, FCC Part 15 Class B

—

Features

Advance Battery Management (ABM), LCD display, deep discharge protection

Advance Battery Management (ABM), LCD display, internal bypass, deep discharge protection, automatic shut down, automatic self-test, hot-swappable batteries, double conversion

—

Included Accessories

BS cord 10A

Tower stand

—

Rack Mounting Kit

Included

—

Power Device

Circuit Protection

Circuit breaker

—

Efficiency

96%

98% Eco mode, 94% online mode

—

Frequency Provided

—

50/60 Hz

—

Frequency Required

50/60 Hz

40 - 70 Hz

—

Input Connectors

1 x power IEC 60320 C14

1 x power BS

—

Input Voltage

AC 220/230/240 V

AC 200/208/220/230/240 V

—

Input Voltage Range

AC 184 - 276 V

AC 100 - 276 V

—

Input Wiring

1-phase

—

Output Voltage

AC 220-240 V

AC 200/208/220/230/240 V ± 1% - 50/60 Hz

—

Output Waveform

—

Sinewave

—

Power Capacity

1050 Watt / 1500 VA

700 Watt / 1000 VA

3000 Watt / 3000 VA

—

Power Factor (PF)

0.7

0.99

—

Power Output Connectors Details

8 x power IEC 60320 C13

8 x power IEC 60320 C13, 2 x power IEC 60320 C19

—

UPS Technology

Line interactive

On-line

—

Weight & Dimensions

Depth

40.5 cm

60.5 cm

—

Height

8.62 cm

8.65 cm

—

Weight

17.8 kg

15.36 kg

28.143 kg

—

Width

44 cm

—

Connections & Expansion

Expansion Slots

—

1 (total) / 0 (free) x Expansion Slot

—

Interfaces

1 x management (USB) - 4 pin USB Type B 1 x management (RS-232) - RJ-45

1 x management (USB) - 4 pin USB Type B, 1 x management (RS-232) - RJ-45

1 x management (RS-232) - 9 pin D-Sub (DB-9), 1 x management (USB) - 4 pin USB Type B, 1 x remote power (on/off) - mini terminal block, 1 x remote power off - mini terminal block, 1 x relay output - mini terminal block, 1 x management (Fast Ethernet) - RJ-45, 1 x RS-232 / sensor - RJ-45

—

Environmental Parameters

Humidity Range Operating

0 - 90%

0 - 96% (non-condensing)

—

Max Operating Temperature

40 °C

—

Min Operating Temperature

0 °C

—

Sound Emission

—

40 dB

—

Manufacturer Warranty

Service & Support

Limited warranty - 2 years, Limited warranty - batteries - 2 years

Limited warranty - 3 years, Limited warranty - batteries - 2 years

—
