Compare EATON UPS Accessories
Comparing 5 products side-by-side — specifications, pricing and stock. Showing EATON products in the UPS Accessories category.
| Specification | EATON Eaton ATS 16 - Redundant switch (rack-mountable) - AC 208/220/230/240 V - output connectors: 9 - 1UEATS16 £712.85 £855.42 inc VAT | ||||
|---|---|---|---|---|---|
| General | |||||
| Colour | Black | — | Black / white | — | — |
| Device Type | — | — | UPS - external | — | — |
| Finish | Open frame | — | — | — | — |

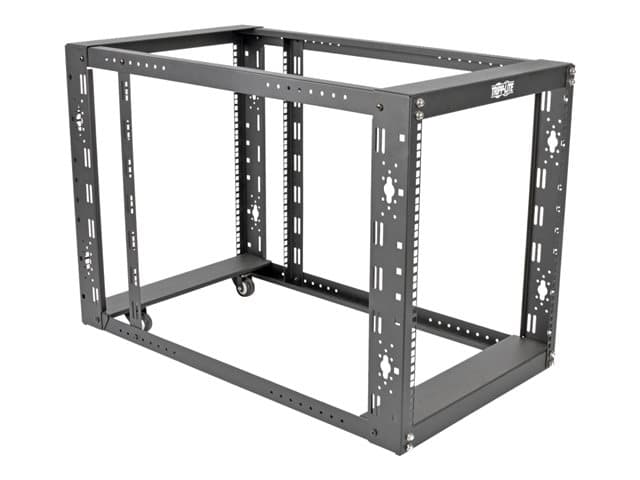

| Height (Rack Units) | 12U | — | — | — | — |
| Localisation | — | — | United Kingdom | — | — |
| Package Content | 4 support brackets, 2 adjustable mounting rails, 20 M6 cage nuts, 4 vertical rack rails, 12 M6 screws, 10 cable management straps, 2 base brackets, 2 top brackets, 20 plastic washers, 20 M6 screws, 16 M8 screws, 10 hook mounting screws | — | — | — | — |
| Product Material | Steel | — | — | — | — |
| Product Type | Rack | — | — | — | — |
| Rack Post Qty | 4-post | — | — | — | — |
| Rack Size | 19" | — | — | — | — |
| Battery | |||||
| Capacity | — | — | 7 Ah | — | — |
| Features | — | — | Sealed | — | — |
| Quantity | — | — | 1 | — | — |
| Technology | — | — | Lead Acid | — | — |
| Network | |||||
| Remote Management Interface | — | — | USB | — | — |
| Miscellaneous | |||||
| Cables Included | — | — | Power cable 1.5 m, USB cable - external | — | — |
| Compliant Standards | — | — | EAC, IEC/EN 62040-1, IEC/EN 62040-2 | — | — |
| Features | Casters | — | Replaceable battery, HID compatible, deep discharge protection, cold-start function, automatic shut down, automatic battery test | — | — |
| Mounting Kit | Included | — | — | — | — |
| Weight Limit | 453.6 kg | — | — | — | — |
| Weight & dimensions | |||||
| Depth | — | — | 33.5 cm | — | — |
| Height | — | — | 8.6 cm | — | — |
| Weight | — | — | 4 kg | — | — |
| Width | — | — | 17 cm | — | — |
| Power Device | |||||
| Efficiency | — | — | 98% | — | — |
| Frequency Required | — | — | 50 - 60 Hz | — | — |
| Input Voltage | — | — | AC 220/230/240 V | — | — |
| Input Voltage Range | — | — | AC 184 - 264 V | — | — |
| Input Voltage Range (Adjustable) | — | — | AC 161 - 284 V | — | — |
| Input Wiring | — | — | 1-phase | — | — |
| Output Voltage | — | — | AC 220/230/240 V | — | — |
| Power Capacity | — | — | 420 Watt / 700 VA | — | — |
| Power Factor (PF) | — | — | 0.6 | — | — |
| Power Output Connectors Details | — | — | 4 x power BS (surge), 4 x power BS (UPS and surge), 2 x 4 pin USB Type A 2 A | — | — |
| Surge Suppression | — | — | Yes | — | — |
| UPS Technology | — | — | Off-line | — | — |
| Environmental Parameters | |||||
| Humidity Range Operating | — | — | 0 - 85% RH (non-condensing) | — | — |
| Sound Emission | — | — | 25 dB | — | — |
| Connections & Expansion | |||||
| Interfaces | — | — | 1 x USB - 4 pin USB Type B | — | — |
| Manufacturer Warranty | |||||
| Service & Support | Limited warranty: - 5 years | — | Limited warranty - 2 years | — | — |
