Compare STARTECH Display Cables & Adapters
Comparing 5 products side-by-side — specifications, pricing and stock. Showing STARTECH products in the Display Cables & Adapters category.

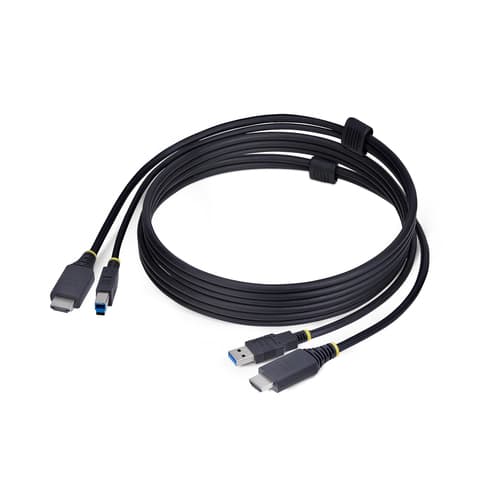

| Specification | Current product STARTECH StarTech.com 6ft (1.8m) HDMI and USB 5Gbps KVM Cable - Keyboard / video / mouse (KVM) cable - HDMI, USB Type A (M) to HDMI, USB Type B (M) - 1.8 m - 4K60Hz support, HDR10 support - blackHU1226-KVM-CABLE £13.43 £16.12 inc VAT | ||||
|---|---|---|---|---|---|
| Features | |||||
| Audio Return Channel (ARC) | — | — | — | — | Yes |
| AWG wire size | — | 34 | 34 | 30 | 24 |
| Bandwidth | — | — | 32400 MB/s | — | — |
| Cable jacket material | — | — | — | — | Thermoplastic elastomer (TPE) |
| Cable length | — | 2 m | 2 m | 2 m | 3 m |
| Cable material | — | — | — | Copper | — |
| Cable shielding | — | Aluminum mylar foil | Aluminum mylar foil | Aluminum mylar foil | Aluminum mylar foil |
| Cable type | — | — | — | — | Round cable |
| Channels quantity | — | — | — | 32 channels | — |
| Colour depth | — | — | — | — | 12 bit |
| Connector 1 | — | DisplayPort | DisplayPort | DisplayPort | HDMI Type A (Standard) |
| Connector 1 form factor | — | Straight | Straight | Straight | Straight |
| Connector 1 gender | — | Male | Male | Male | Male |
| Connector 2 | — | Mini DisplayPort | DisplayPort | DisplayPort | HDMI Type A (Standard) |
| Connector 2 form factor | — | Straight | Straight | Straight | Straight |
| Connector 2 gender | — | Male | Male | Male | Male |
| Connector contacts plating | — | Gold | Gold | Nickel | Gold |
| Data transfer rate | — | — | — | 40 Gbit/s | 18 Gbit/s |
| Display Stream Compression (DSC) | — | — | — | Yes | — |
| Display Stream Compression (DSC) version | — | — | — | 1.2a | — |
| DisplayPort version | — | 1.4 | 1.4 | 2.1 | — |
| Fire-resistance rating | — | — | — | VW-1 | — |
| HBR3 support | — | Yes | Yes | — | — |
| HDCP | — | Yes | Yes | Yes | Yes |
| HDCP version | — | — | — | 2.2 | 2.2 |
| HDMI Ethernet channel | — | — | — | — | Yes |
| HDMI version | — | — | — | — | 2.0 |
| High Dynamic Range (HDR) supported | — | — | Yes | Yes | Yes |
| High Dynamic Range (HDR) technology | — | — | — | — | High Dynamic Range 10 (HDR10) |
| Jacket material | — | Polyvinyl chloride (PVC) | Thermoplastic elastomer (TPE) | Thermoplastic elastomer (TPE) | — |
| Latching connectors | — | — | Yes | — | — |
| Maximum refresh rate | — | 120 Hz | 120 Hz | 144 Hz | 240 Hz |
| Maximum resolution | — | 7680 x 4320 pixels | 7680 x 4320 pixels | 7680 x 4320 pixels | — |
| Multi-Stream Transport (MST) | — | Yes | — | — | — |
| Number of conductors | — | 19 | 19 | — | — |
| Product colour | — | Black | Grey, Black | Black | White |
| Supported digital audio channels (uncompressed) | — | — | — | — | 32 |
| Supported graphics resolutions | — | — | 3840 x 2160, 7680 x 4320 | — | 3840 x 2160, 2560 x 1400, 1920 x 1080 (HD 1080) |
| Supported video modes | — | — | — | — | 1080p, 1440p, 2160p |
| Weight & dimensions | |||||
| Cable diameter | — | 4.5 mm | 4.5 mm | 6.5 mm | 9 mm |
| Weight | — | 85 g | 68 g | 106 g | — |
| Performance | |||||
| Cable jacket material | Thermoplastic elastomer (TPE) | — | — | — | — |
| Cable length | 1.8 m | — | — | — | — |
| Connector 1 | HDMI + USB 3.2 Gen 1 Type-A | — | — | — | — |
| Connector 1 gender | Male | — | — | — | — |
| Connector 2 | HDMI + USB 3.2 Gen 1 Type-B | — | — | — | — |
| Connector 2 gender | Male | — | — | — | — |
| Connector contacts plating | Nickel | — | — | — | — |
| Keyboard port type | USB | — | — | — | — |
| Maximum video resolution | 3840 x 2160 pixels | — | — | — | — |
| Mouse port type | USB | — | — | — | — |
| Product colour | Black | — | — | — | — |
| Video port type | HDMI | — | — | — | — |
| Certificates | |||||
| Compliance certificates | RoHS | CE, RoHS | RoHS | RoHS | RoHS |
| Logistics data | |||||
| Harmonized System (HS) code | — | 84733080 | 84733080 | — | — |
| Master (outer) case height | 300 mm | 270 mm | 270 mm | — | 300 mm |
| Master (outer) case length | 300 mm | 330 mm | 300 mm | — | 300 mm |
| Master (outer) case width | 400 mm | 400 mm | 400 mm | — | 400 mm |
| Products per master (outer) case | 40 pc(s) | 80 pc(s) | 80 pc(s) | — | 50 pc(s) |
| Operational conditions | |||||
| Operating relative humidity (H-H) | — | 0 - 85% | 0 - 85% | 10 - 85% | 10 - 90% |
| Operating temperature (T-T) | — | 0 - 50 °C | 0 - 50 °C | 0 - 45 °C | 0 - 40 °C |
| Storage temperature (T-T) | — | 0 - 50 °C | 0 - 50 °C | -20 - 70 °C | -20 - 70 °C |
| Packaging data | |||||
| Package depth | 145 mm | 200 mm | 200 mm | — | 220 mm |
| Package height | 31 mm | 20 mm | 20 mm | — | 30 mm |
| Package weight | 82 g | 90 g | 88 g | 120 g | 140 g |
| Package width | 290 mm | 220 mm | 220 mm | — | 200 mm |
| Quantity per pack | 1 pc(s) | — | — | — | 1 pc(s) |
| Weight | 320 g | — | — | — | — |
| Packaging content | |||||
| Quantity per pack | — | 1 pc(s) | 1 pc(s) | 1 pc(s) | — |
| Sustainability | |||||
| Sustainability compliance | — | — | — | Yes | — |
