IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1w, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3az, IEEE 802.3at

—

Device Type

—

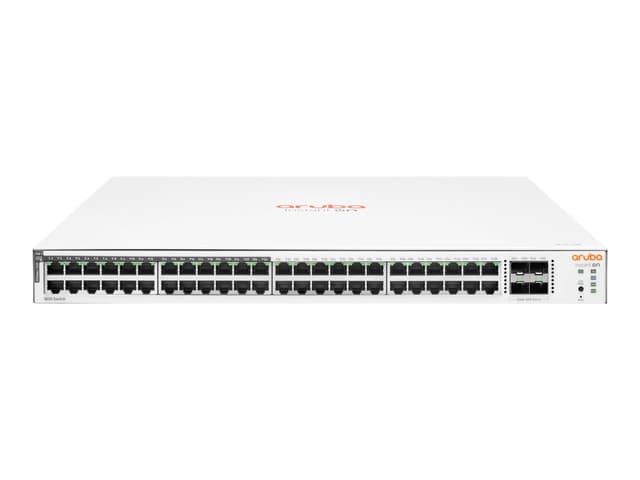

Switch - 48 ports - smart

—

Enclosure Type

—

Desktop, rack-mountable 1U

—

Encryption Algorithm

—

SSL

—

Features

—

Auto-sensing per device, 1.5MB packet buffer, wall mountable, Cable Diagnostics Function, event log, Syslog support, dual image support, EEE, SCP, Global Storm Control, BPDU Filter, DoS protection, flow control, IGMP snooping, Link Aggregation, LLDP support, loop protection, port mirroring, STP support, TPM, VLAN support, Port Scheduling, auto-negotiation, auto-uplink (auto MDI/MDI-X), CoS, cloud managed, DHCP client, firmware upgradable, QoS, SNTP support

—

Flash Memory

—

256 MB

—

Jumbo Frame Support

—

9216 bytes

—

MAC Address Table Size

—

16000 entries

—

Performance

—

Latency (100 Mbps): 5.2 µs, Latency (1 Gbps): 2.8 µs, Throughput: 77.37 Mpps, Switching capacity: 104 Gbps

—

PoE Budget

—

370 W

—

Ports

—

24 x 10/100/1000 + 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP

—

Power Over Ethernet (PoE)

—

PoE+

—

Processor

—

1 x ARM: 800 MHz

—

RAM

—

512 MB SDRAM

—

Remote Management Protocol

—

HTTP, HTTPS, ICMP, SNMP 1, SNMP 2c, SCP, TFTP

—

Routing Protocol

—

IGMP, IGMPv2

—

Status Indicators

—

Port status, link/activity, speed, port duplex mode

—

Subtype

—

Gigabit Ethernet

—

Power

Power Consumption Operational

—

462.5 Watt

—

Power Device

—

Internal power supply

—

Voltage Required

—

AC 100-240 V (50/60 Hz)

—

Miscellaneous

Compliant Standards

—

AS/NZS CISPR 32 Class A, CAN/CSA C22.2 No. 62368-1 Second Edition, CAN/CSA-C22.2 No. 62368-1 Third Edition, CISPR 32 Class A, CISPR 35, CNS 13438 Class A, EN 55032:2015, EN 55035, FCC CFR47 Part 15 B Class A 2018, ICES-003 Class A, IEC 61000-3-2, IEC 61000-3-3, IEC 62368-1 Second Edition, IEC 62368-1 Third Edition, IEC/EN 60825-1:2014 Class 1, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, KN32 Class A, KN35, UL 62368-1 Second Edition, UL 62368-1 Third Edition, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, EN 61000-3-3

—

Localisation

—

English / United Kingdom

—

MTBF

—

83.5 years

—

Weight & Dimensions

Depth

—

35.1 cm

—

Height

—

4.39 cm

—

Weight

—

4.94 kg

—

Width

—

44.3 cm

—

Environmental Parameters

Humidity Range Operating

—

15 - 95% (non-condensing)

—

Humidity Range Storage

—

15 - 95% (non-condensing)

—

Max Operating Temperature

—

40 °C

—

Max Storage Temperature

—

70 °C

—

Min Operating Temperature

—

0 °C

—

Min Storage Temperature

—

-40 °C

—

Connections & Expansion

Interfaces

—

24 x 1000Base-T RJ-45, 4 x Gigabit LAN SFP, 24 x 1000Base-T RJ-45 PoE+

—

Manufacturer Warranty

Service & Support

—

Limited warranty - lifetime, Technical support - live chat - lifetime, Technical support - phone consulting - 90 days from date of purchase

—
