Product Comparison

Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2), HWTACACS

IPv4 routing table entries: 512, IPv6 routing table entries: 256, VLAN IDs: 4094

IEEE 802.3, IEEE 802.1x

IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, ANSI/TIA-1057, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1r

Switch - 12 ports - L3 - Managed - stackable

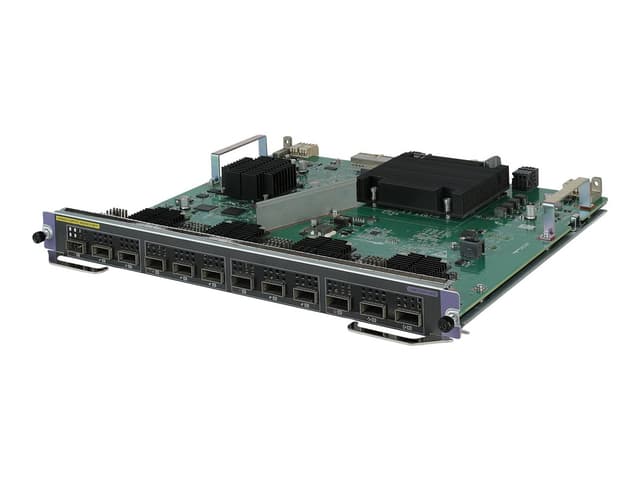

Expansion module

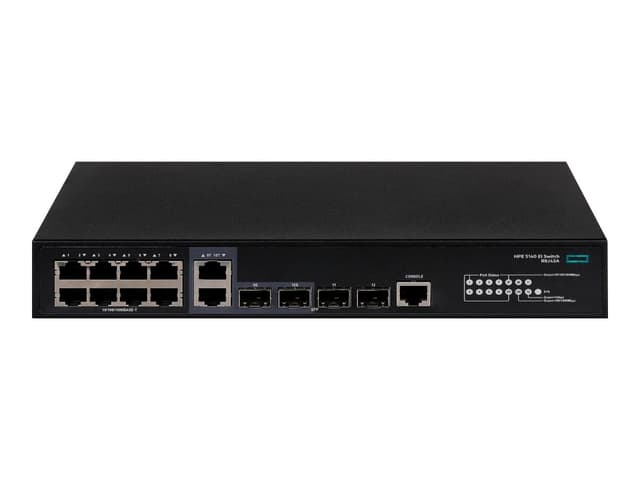

Switch - 12 ports - L3 - smart

Plug-in module

Rack-mountable 1U

SSL

IPv6 support, Zero Configuration Technology, QoS, RRPP, EAD, LACP support, MIB, SNMP support, ISSU, VPLS, SDN, OAM support mechanism, GIR mode, mDNS, Web authentication

Flow control, BOOTP support, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, WRR queuing, IPv6 support, High Availability, full duplex mode, sFlow, STP support, RSTP support, VRRP support, MSTP support, ACL support, QoS, CAR, RADIUS support, DHCP server, MLD snooping, DLDP support, STP Root Guard, IPv4 support, LLDP support, DHCP relay, LACP, Port Security, Smart Link Pass-Through, Energy Efficient Ethernet, dynamic ARP protection, DHCP protection, MVRP, SPQ, port isolation, GARP, OpenFlow support, IP source guard, ICMP IRDP, Link Aggregation, VLAN Double Tagging (Q-in-Q), LLDP-MED, Smart Link, Guest VLAN, Ethernet OAM, proxy ARP, WRR, IRF Technology, BPDU protection, UDP support, MRP

4 GB (max)

256 MB

Plug-in module

9216 bytes

16384 entries

4

Switching capacity (per slot): 480 Gbps

Latency (1000 Mbps): 5 µs, Latency (10 Gbps): 3 µs, Throughput: 18 Mpps, Routing/switching capacity: 128 Gbps

12 x 40 Gigabit Ethernet + 4 x 100 Gigabit QSFP28

8 x 10/100/1000 + 2 x 1 Gigabit / 10 Gigabit SFP+ + 2 x combo 10GBase-T

4 GB (max)

512 MB SDRAM

Telnet

SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH-2, CLI, SCP, SNMP 6, NTP, ICMP, DHCP, RADIUS

OSPF, IS-IS, BGP, OSPFv3, MPLS

OSPF, RIP-1, RIP-2, IGMP, OSPFv2, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, CIDR

100 Gigabit Ethernet

Gigabit Ethernet

Internal power supply (not installed)

Internal power supply

10 A

Yes

AC 100-240 V

AC 100-240 V (50/60 Hz)

Plug and Play, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, ICES-003 Class A, RoHS, UL 60950-1, IEC 60950-1, WEEE, EN 60825-1, FCC Part 15 B Class A, EN 60825-2, IPv6 Ready, EN 300 386, FDA 21 CFR, AS/NZS CISPR 32 Class A, YD/T993, IEC 62368-1, EN 55032, CAN/CSA-C22.2 No. 60950-1, VCCI-CISPR 32:2016 Class A, ETSI EN 300 386, EN 62368-1:2014/A11:2017, GB/T9254

BTO

Included

Wired

Gigabit Ethernet, 10 Gigabit Ethernet

10 Gbps

MACsec support

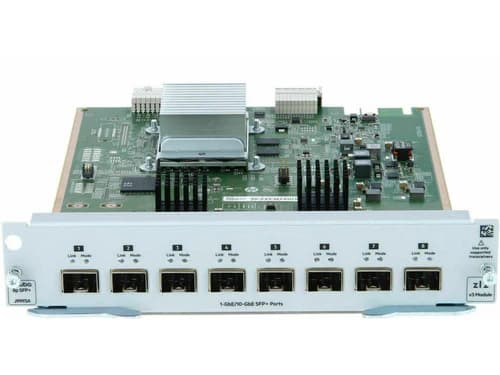

Gigabit Ethernet / 10 Gigabit SFP+ x 8

16 cm

4.36 cm

1.5 kg

26.6 cm

HPE Aruba 5406R 16-port SFP+ (No PSU) v3 zl2, 5406R 8-port 1/2.5/5/10GBASE-T PoE+ / 8-port SFP+ (No PSU) v3 zl2

10 (total) / 6 (free) x Expansion Slot

12 x 40Gbit LAN, 4 x 100Gbit LAN QSFP28, 1 x USB, 1 x LAN management, 1 x serial (RS-232C), 1 x serial (RS-232C) management, 1 x modem

8 x 1Gb Ethernet/10Gb Ethernet - SFP+

8 x 1000Base-T RJ-45, 2 x Gigabit / 10Gbit LAN SFP+, 2 x Gigabit / 10Gbit LAN RJ-45, 1 x console RJ-45 management

10 - 90% (non-condensing)

5 - 95% (non-condensing)

50 °C

70 °C

-5 °C

-40 °C

Limited warranty - lifetime

Limited warranty - lifetime

HPE Intelligent Management Center
