Compare NEOMOUNTS Other AV Mounts
Comparing 5 products side-by-side — specifications, pricing and stock. Showing NEOMOUNTS products in the Other AV Mounts category.

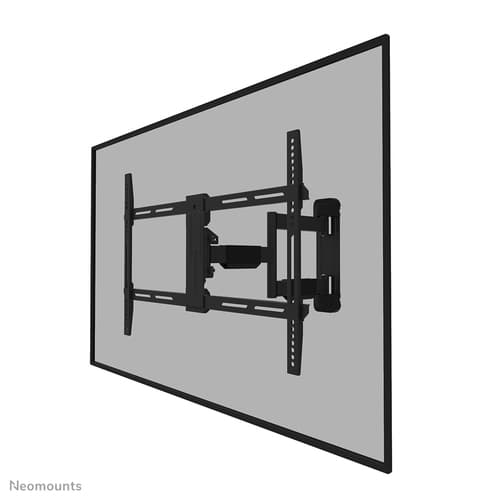

| Specification | Current product NEOMOUNTS Neomounts WL40-550BL16 - Mounting kit (wall mount) - full-motion - for TV - black - screen size: 40"-65"WL40-550BL16 £69.82 £83.78 inc VAT | NEOMOUNTS Neomounts WL30-550BL12 - Mounting kit (wall mount) - fixed - for TV - black - screen size: 24"-65"WL30-550BL12 £15.02 £18.02 inc VAT | NEOMOUNTS Neomounts LEVEL-750 - Mounting kit - for TV - heavy-duty - lockable - steel - black - screen size: 32"-75" - wall-mountableWL30-750BL14 £46.28 £55.54 inc VAT | NEOMOUNTS Neomounts LEVEL-750 - Mounting kit - for TV - heavy-duty - lockable - steel - black - screen size: 43"-98" - wall-mountableWL30-750BL18 £58.48 £70.18 inc VAT | |
|---|---|---|---|---|---|
| Ergonomics | |||||
| Angle of rotation | 6° | — | — | — | — |
| Cable management | Yes | — | — | Yes | Yes |
| Distance to the wall (max) | 49 cm | 3.3 cm | 2.3 cm | 4.2 cm | 4.2 cm |
| Distance to the wall (min) | 5.3 cm | — | — | — | — |
| Height adjustment | No | No | No | Yes | Yes |
| Height adjustment range | — | — | — | 0 - 10 mm | 0 - 10 mm |
| Pivot angle | -3 - 3° | — | — | — | — |
| Rotating | Yes | — | — | — | — |
| Swivel angle | 40° | — | — | — | — |
| Swivel angle range | -45 - 45° | — | — | — | — |
| Swivelling | Yes | — | — | — | — |
| Tilt adjustment | Yes | Yes | — | — | — |
| Tilt angle range | -2 - 12° | 0 - 12° | — | — | — |
| Type | Full motion | — | Fixed | Fixed | Fixed |
| Technical details | |||||
| Country of origin | China | China | China | China | China |
| Lockable | Not lockable | Not lockable | Not lockable | Padlock not included | Padlock not included |
| Package net weight | 6.6 kg | 2.6 kg | 1.4 kg | — | — |
| Quantity per pack | 1 pc(s) | 1 pc(s) | — | — | — |
| Weight & dimensions | |||||
| Depth | 53 mm | 33 mm | 23 mm | 42 mm | 42 mm |
| Depth (max) | — | — | — | — | 4.2 cm |
| Height | 436 mm | 425 mm | 287 mm | 488 mm | 684 mm |
| Weight | 5 kg | 2 kg | 950 g | 3.9 kg | 6.3 kg |
| Width | 660 mm | 535 mm | 315 mm | 486 mm | 886 mm |
| Logistics data | |||||
| Harmonized System (HS) code | 7326909890 | 7326909890 | 7326909890 | 7326909890 | 7326909890 |
| Master (outer) case gross weight | 20.4 kg | 15.8 kg | 14.5 kg | 20.5 kg | 23.7 kg |
| Master (outer) case height | 343 mm | 230 mm | 267 mm | 347 mm | 201 mm |
| Master (outer) case length | 185 mm | 285 mm | 300 mm | 227 mm | 227 mm |
| Master (outer) case net weight | 18 kg | 10.8 kg | 10 kg | 15.6 kg | 18.9 kg |
| Master (outer) case width | 704 mm | 573 mm | 353 mm | 551 mm | 946 mm |
| Products per master (outer) case | 3 pc(s) | 6 pc(s) | 10 pc(s) | 4 pc(s) | 3 pc(s) |
| Products per pallet (EU) | 72 pc(s) | 210 pc(s) | 300 pc(s) | 104 pc(s) | 90 pc(s) |
| Design | |||||
| Housing material | Steel | Steel | Steel | Steel | Steel |
| Product colour | Black | Black | Black | Black | Black |
| Mounting | |||||
| Maximum screen size | 165.1 cm (65") | 190.5 cm (75") | 165.1 cm (65") | 190.5 cm (75") | 2.49 m (98") |
| Maximum VESA mount | 600 x 400 mm | 400 x 400 mm | 200 x 200 mm | 400 x 400 mm | 800 x 600 mm |
| Maximum weight capacity | 40 kg | 50 kg | 40 kg | 100 kg | 125 kg |
| Maximum weight capacity (per display) | — | — | — | — | 125 kg |
| Minimum screen size | 101.6 cm (40") | 81.3 cm (32") | 61 cm (24") | 81.3 cm (32") | 139.7 cm (55") |
| Minimum VESA mount | 200 x 100 mm | 100 x 100 mm | 50 x 50 mm | 100 x 100 mm | 100 x 100 mm |
| Mounting type | Wall | Wall | Wall | Wall | Wall |
| Number of displays supported | 1 | 1 | 1 | 1 | 1 |
| Panel mounting interface | 200 x 200,200 x 400,400 x 400,200 x 300,300 x 300,440 x 400,600 x 200,600 x 300,600 x 400,300 x 200,400 x 300,200 x 100,400 x 200,200 x 150 | 100 x 100,100 x 200,200 x 200,200 x 400,400 x 400,200 x 300,300 x 300,300 x 200,400 x 300,200 x 100,300 x 100,100 x 150,120 x 120,350 x 350,400 x 200,150 x 200,200 x 150 | 75 x 75,100 x 100,50 x 50,100 x 200,200 x 200,200 x 100,100 x 150,120 x 120,75 x 200,100 x 75,75 x 100,150 x 200,200 x 150 | 100 x 100,100 x 200,200 x 200,200 x 400,400 x 400,200 x 300,300 x 300,300 x 200,400 x 300,200 x 100,300 x 100,100 x 150,120 x 120,350 x 350,400 x 200,150 x 200,200 x 150 | 100 x 200,100 x 100,100 x 150,120 x 120,150 x 200,200 x 100,200 x 150,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 600,440 x 400,500 x 500,500 x 400,600 x 300,600 x 200,600 x 400,600 x 500,600 x 600,680 x 300,700 x 400,800 x 200,800 x 400,800 x 450,800 x 500,800 x 600 |
| Packaging content | |||||
| Mounting kit | Yes | — | — | — | — |
| Packaging data | |||||
| Package depth | 323 mm | 208 mm | 247 mm | 82 mm | 61 mm |
| Package height | 56 mm | 44 mm | 28 mm | 209 mm | 209 mm |
| Package weight | 6.6 kg | 2.6 kg | 1.4 kg | 5 kg | 7.7 kg |
| Package width | 684 mm | 558 mm | 335 mm | 533 mm | 928 mm |
