Compare Netgear Hubs & Switches
Comparing 5 products side-by-side — specifications, pricing and stock. Showing Netgear products in the Hubs & Switches category.

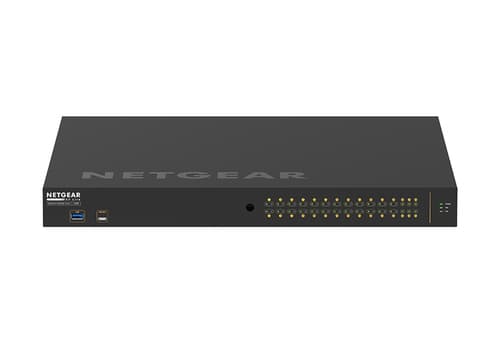

| Specification | Current product Netgear NETGEAR AV Line M4250-26G4XF-PoE+ - Switch - L3 - Managed - 24 x 10/100/1000 (PoE+) + 2 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ - side to side airflow - rack-mountable - PoE+ (480 W)GSM4230PX-100EUS £2124.26 £2549.11 inc VAT | Netgear NETGEAR Plus GS316EP - Switch - Managed - 15 x 10/100/1000 (PoE+) + 1 x SFP - desktop, wall-mountable - PoE+ (180 W)GS316EP-100UKS £185.20 £222.24 inc VAT | Netgear NETGEAR AV Line M4250-9G1F-PoE+ - Switch - L3 - Managed - 8 x 10/100/1000 (8 PoE+) + 1 x 10/100/1000 + 1 x Gigabit SFP - side to side airflow - desktop - PoE+ (110 W)GSM4210PD-100EUS £618.88 £742.66 inc VAT | Netgear NETGEAR Smart GS724TPP - Switch - L3 Lite - smart - 24 x 10/100/1000 (PoE+) + 2 x Gigabit SFP - desktop, rack-mountable - PoE+ (380 W)GS724TPP-300EUS £339.41 £407.29 inc VAT | |
|---|---|---|---|---|---|
| General | |||||
| Built-in Devices | — | — | Led panel | — | — |
| Device Type | — | — | Switch - 8 ports - unmanaged | — | — |
| Enclosure Type | — | — | Desktop | — | — |
| Features | — | — | Auto-sensing per device, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward | — | — |
| MAC Address Table Size | — | — | 4K entries | — | — |
| Ports | — | — | 8 x 10/100/1000 | — | — |
| RAM | — | — | 192 KB | — | — |
| Status Indicators | — | — | Collision status, port transmission speed, port duplex mode, power, link OK, link/activity | — | — |
| Subtype | — | — | Gigabit Ethernet | — | — |
| Power | |||||
| AC input frequency | — | — | — | 50 - 60 Hz | — |
| AC input voltage | — | — | — | 220 - 240 V | — |
| Power consumption (max) | — | — | — | — | 20.69 W |
| Power consumption (typical) | — | — | 14 W | — | 11.3 W |
| Power source | — | — | — | AC/DC | — |
| Power supply included | Yes | — | — | Yes | Yes |
| Network | |||||
| 10G support | — | No | — | — | — |
| Broadcast storm control | — | — | — | Yes | — |
| Copper ethernet cabling technology | — | 10BASE-T, 100BASE-TX, 1000BASE-T | 1000BASE-T, 100BASE-TX, 10BASE-T | — | — |
| Ethernet LAN data rates | — | 10,100,1000 Mbit/s | — | — | — |
| Flow control support | — | Yes | — | — | — |
| Full duplex | — | Yes | Yes | Yes | — |
| IPv4 routes | 512 | — | — | — | — |
| IPv6 routes | 128 | — | — | — | — |
| Link aggregation | — | Yes | — | Yes | — |
| Networking standards | — | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x |
| Number of VLANs | 4 | 64 | — | — | 256 |
| Port mirroring | — | Yes | — | — | — |
| Rate limiting | — | Yes | — | Yes | — |
| Spanning tree protocol | — | — | — | Yes | — |
| Virtual LAN features | — | Port-based VLAN, Tagged VLAN | — | — | — |
| VLAN support | Yes | Yes | — | — | Yes |
| Security | |||||
| Access Control List (ACL) | — | — | — | Yes | Yes |
| Access Control List (ACL) IPv4 entries | — | — | — | — | 100 |
| Authentication | — | — | — | MAC-based authentication | — |
| Authentication type | — | — | — | RADIUS | — |
| BPDU filtering/protection | — | — | — | Yes | — |
| DHCP features | — | DHCP client | — | DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping | DHCP client, DHCP snooping |
| IGMP snooping | — | Yes | — | Yes | Yes |
| Loop protection | — | — | — | Yes | — |
| Password protection | — | Yes | — | — | — |
| Queue scheduling algorithms | — | Weighted Round Robin (WRR) | — | — | — |
| SSH/SSL support | — | — | — | Yes | — |
| Other features | |||||
| Acoustic pressure emissions | — | — | 0 dB | — | — |
| Data transfer rate | — | — | 1000 Mbit/s | — | — |
| Dimensions (WxDxH) | — | — | 235.5 x 100.8 x 27 mm | — | — |
| Electromagnetic emissions | — | — | CE mark, commercial FCC Part 15 Class A, EN 55 022 (CISPR 22), Class A VCCI, Class A C-Tick | — | — |
| I/O ports | — | — | 8 auto speed(10/100/1000) sensing UTP RJ-45 | — | — |
| Latency | — | — | (100 to 100 Mbps): 40 µ (max), (1000 to 1000 Mbps): 10 µ (max) | — | — |
| Power requirements | — | — | 5 V @ 2.8 A DC | — | — |
| Ports & interfaces | |||||
| Basic switching RJ-45 Ethernet ports quantity | 24 | 16 | 8 | 8 | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) | Gigabit Ethernet (10/100/1000) | — | Gigabit Ethernet (10/100/1000) | Gigabit Ethernet (10/100/1000) |
| Fiber optic connector | — | — | — | — | SFP |
| Installed SFP modules quantity | — | — | — | 0 | 2 |
| Installed SFP+ modules quantity | — | 0 | — | 0 | 0 |
| Power connector | — | DC-in jack | — | — | — |
| SFP module slots quantity | — | 1 | — | — | — |
| SFP+ module slots quantity | 4 | — | — | — | — |
| USB 2.0 ports quantity | 1 | — | — | — | — |
| Performance | |||||
| Built-in processor | Yes | — | — | Yes | Yes |
| Compatible operating systems | — | — | Windows, Linux, Mac OS | — | — |
| Fanless | Yes | Yes | — | — | — |
| Flash memory | — | — | — | — | 64 MB |
| Internal memory | — | — | — | 2048 MB | 512 MB |
| Mean time between failures (MTBF) | — | 784742 h | — | — | 1784610 h |
| Minimum system requirements | — | — | - UTP Category 5 or better cables -Network card for each PC or server (e.g. GA302T) -Network software | — | — |
| Noise level | 42 dB | — | — | 30.06 dB | 26.1 dB |
| Processor frequency | — | — | — | 1250 MHz | 800 MHz |
| Processor manufacturer | — | — | — | — | ARM |
| Processor model | ARM Cortex-A57 | — | — | ARM Cortex-A9 | ARM Cortex-A55 |
| Packaging content | |||||
| Cables included | AC, LAN (RJ-45), USB Type-C | AC | — | — | — |
| Manual | — | — | — | Yes | — |
| Rack mount kit | Yes | — | — | — | — |
| User guide | — | Yes | — | Yes | — |
| Certificates | |||||
| Certification | — | FCC 15 B CE/EN55032/24 VCCI ACMA CSA KC BSMI | — | — | — |
| Compliance certificates | — | CE | — | — | — |
| Management features | |||||
| Cloud-managed | — | — | — | — | Yes |
| Quality of Service (QoS) support | — | Yes | — | Yes | — |
| Switch layer | L2/L3 | — | — | L2/L3 | L2 |
| Switch type | Managed | Managed | Unmanaged | Managed | Managed |
| Web-based management | — | Yes | — | — | Yes |
| Protocols | |||||
| Data link protocols | — | — | Ethernet,Fast Ethernet, Gigabit Ethernet | — | — |
| IPv4 FIB entries | 256 | — | — | — | — |
| IPv6 FIB entries | 16 | — | — | — | — |
| Weight & dimensions | |||||
| Depth | 43.2 mm | 102 mm | — | 140 mm | 257 mm |
| Height | 400 mm | 27 mm | — | 40 mm | 43.2 mm |
| Weight | 5.45 kg | 880 g | 760 g | 967 g | 3.15 kg |
| Width | 440 mm | 286 mm | — | 210 mm | 440 mm |
| Design | |||||
| Form factor | 1U | — | — | — | — |
| Housing material | — | Metal | — | — | — |
| LED indicators | — | Yes | Power | PoE, Power, Status | Activity, Link, PoE, Power, Speed, Yes |
| Number of fans | — | — | — | — | 2 fan(s) |
| Product colour | Black | Black | — | Black | Grey |
| Rack mounting | Yes | No | No | Yes | Yes |
| Redundant fans support | — | — | — | — | Yes |
| Safety | — | — | UL (UL 1950), CUL, C-Tick | — | — |
| Temperature sensor | Yes | — | — | — | — |
| Wall mountable | — | Yes | — | — | — |
| Logistics data | |||||
| Harmonized System (HS) code | 85176990 | 85176990 | 85176990 | — | — |
| Operational conditions | |||||
| Heat dissipation | — | — | — | 559.555 BTU/h | — |
| Non-operating altitude | — | — | — | 0 - 3000 m | — |
| Operating altitude | — | 0 - 3000 m | — | 0 - 3000 m | — |
| Operating relative humidity (H-H) | — | — | 10 - 90% | 0 - 90% | 0 - 95% |
| Operating temperature (T-T) | — | 0 - 40 °C | 0 - 40 °C | 0 - 50 °C | 0 - 50 °C |
| Storage relative humidity (H-H) | — | — | — | 0 - 95% | 0 - 95% |
| Storage temperature (T-T) | — | -20 - 70 °C | — | -20 - 70 °C | -20 - 70 °C |
| Multicast features | |||||
| IPv4 multicast entries | — | — | — | 2000 | — |
| Multicast support | — | Yes | — | Yes | Yes |
| Number of multicast groups filtered | — | 128 | — | — | 512 |
| Data transmission | |||||
| Jumbo frames | 12000 | 10000 | — | — | — |
| Jumbo frames support | Yes | Yes | — | — | — |
| Latency (1 Gbps) | 2.29 µs | — | — | — | — |
| Latency (10 Gbps) | 0.83 µs | — | — | — | — |
| MAC address table | 16000 entries | 4096 entries | 8000 entries | 16000 entries | — |
| Maximum data transfer rate | — | — | 1 Gbit/s | — | — |
| Packet buffer memory | 16 MB | 0.192 MB | 0.032 MB | — | 1.5 MB |
| Store-and-forward | — | Yes | — | Yes | — |
| Switching capacity | 132 Gbit/s | 32 Gbit/s | 16 Gbit/s | 24 Gbit/s | 52 Gbit/s |
| Throughput | 98.21 Mpps | — | — | — | — |
| Power over Ethernet (PoE) | |||||
| Power over Ethernet (PoE) | Yes | Yes | No | Yes | Yes |
| Power over Ethernet (PoE) power per port | 45 W | — | — | 30 W | 190 W |
| Power over Ethernet plus (PoE+) ports quantity | 24 | 15 | — | 8 | 24 |
| Total Power over Ethernet (PoE) budget | — | 180 W | — | 110 W | 231.07 W |
| Sustainability | |||||
| Sustainability compliance | — | Yes | — | — | — |
