Product Comparison

Technical Specifications

Only show the difference

Feature

Brand: Netgear|SKU: GS116LP-100EUS

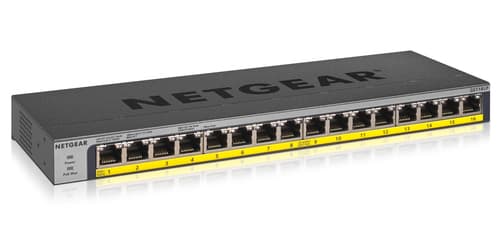

NETGEAR GS116LP

£140.80

Stock: 110

Brand: Netgear|SKU: GS748PP-100EUS

NETGEAR GS748PP - Switch - unmanaged - 24 x 10/100/1000 + 24 x 10/100/1000 (PoE+) - desktop, wall-mountable - PoE+ (380 W)

£527.00

Stock: 29

Brand: Netgear|SKU: GS752TP-300EUS

NETGEAR Smart GS752TP

£433.19

Stock: 11

Brand: Netgear|SKU: GS316EPP-100UKS

NETGEAR Plus GS316EPP - Switch - Managed - 15 x 10/100/1000 (PoE+) + 1 x SFP - desktop, wall-mountable - PoE+ (231 W)

£230.08

Stock: 53

Brand: Netgear|SKU: GS728TXP-300EUS

NETGEAR Smart GS728TXP - V3 - switch - L3 Lite - smart - 24 x 10/100/1000 (PoE+) + 4 x SFP+ - desktop, rack-mountable - PoE+ (190 W)

£348.55

Stock: 19

General

Authentication Method

—

RADIUS, TACACS+

—

Capacity

—

Virtual interfaces (VLANs): 256 ACL entries: 480 Layer 2 multicast groups: 1024 Static routes: 32 Priority queues per port: 4

—

Device Type

Switch - 16 ports

—

Switch - 48 ports - L3 Lite - smart

—

Enclosure Type

Desktop, rack-mountable, wall-mountable

—

Desktop, rack-mountable 1U

—

Encryption Algorithm

—

SSL, TLS 1.0

—

Features

DSCP support, QoS, Energy Efficient Ethernet, 1MB packet buffer, store and forward, CoS, WRR, WFQ, flow control, full duplex capability, EEE, fanless, Jumbo Frames support

—

IGMP snooping, MLD snooping, VoIP support, 8MB packet buffer, static routing, QoS, 802.1x authentication, DHCP support, DHCP snooping, auto-sensing per device, flow control, full duplex mode, LLDP support, MSTP support, RSTP support, STP support, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, DHCP client, ACL support, Port Security, DiffServ support, CoS, WRR queuing, ToS, DSCP support, port mirroring, SPQ, administrator's password, SNTP support, cable test, TFTP support, Syslog support, PoE timer, protected ports, DHCP filtering

—

MAC Address Table Size

4K entries

—

8K entries

—

Performance

Bandwidth: 32 Gbps

—

Bandwidth: 104 Gbps Packet buffer size: 8 MB

—

PoE Budget

76 W

—

384 W

—

Ports

16 x 10/100/1000 (PoE+)

—

8 x 10/100/1000 (PoE+) + 40 x 10/100/1000 (PoE) + 4 x SFP

—

Power Over Ethernet (PoE)

PoE+

—

PoE+

—

Remote Management Protocol

—

RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2, SNMP 3, HTTPS, TFTP, HTTP

—

Routing Protocol

—

IGMP, IGMPv2, IGMPv3, MLD, MLDv2

—

Status Indicators

Link/activity/speed, PoE, power

—

Power, PoE, link/activity, fan, port transmission speed, speed

—

Subtype

Gigabit Ethernet

—

Gigabit Ethernet

—

Power

DC input voltage

54 V

—

Input current

1.66 A

—

Power consumption (typical)

90 W

—

748.18 W

Power source

DC/PoE

—

Network

10G support

—

Yes

Broadcast storm control

—

Yes

Copper ethernet cabling technology

—

10BASE-T, 100BASE-TX, 1000BASE-T

—

Ethernet LAN data rates

—

10,100,1000 Mbit/s

—

Flow control support

Yes

—

Yes

Full duplex

—

Yes

Link aggregation

—

Yes

Networking standards

IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x

—

IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Number of VLANs

—

256

Port mirroring

—

Yes

Rate limiting

—

Yes

Spanning tree protocol

—

Yes

Virtual LAN features

—

Port-based VLAN, Tagged VLAN

Voice VLAN

VLAN support

—

Yes

Security

Access Control List (ACL)

—

Yes

—

Yes

Access Control List (ACL) ingress

—

100

Access Control List (ACL) rules

—

100

—

DHCP features

—

DHCP client

IGMP snooping

—

Yes

MAC address filtering

—

Yes

Password protection

—

Yes

—

Queue scheduling algorithms

—

Weighted Round Robin (WRR)

—

SSH/SSL support

—

Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

—

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

—

Gigabit Ethernet (10/100/1000)

10G Ethernet (100/1000/10000)

Gigabit Ethernet (copper) ports quantity

—

Installed SFP modules quantity

—

Installed SFP+ modules quantity

—

Power connector

—

DC-in jack

—

SFP module slots quantity

—

SFP+ module slots quantity

—

USB 2.0 ports quantity

—

Performance

Buffer size

1000 KB

—

Built-in processor

—

Yes

—

Yes

Flash memory

—

32 MB

—

64 MB

Internal memory

—

128 MB

—

Mean time between failures (MTBF)

2088514 h

—

1252990 h

Noise level

—

26.8 dB

Processor frequency

—

700 MHz

—

800 MHz

Packaging content

Cables included

—

Manual

—

Yes

User guide

—

Yes

—

Certificates

Certification

CE, FCC, ICES-003, VCCI, RCM, BSMI, KC, CB, CE LVD, BSMI, EAC, RCM, KC, EN 60950-1

—

FCC 15 B CE/EN55032/24 VCCI ACMA CSA KC BSMI

—

Compliance certificates

—

Weight & dimensions

Depth

102 mm

—

102 mm

257 mm

Height

27 mm

—

27 mm

43.2 mm

Weight

880 g

—

880 g

3.8 kg

Width

286 mm

—

286 mm

440 mm

Design

Form factor

—

Housing material

—

Metal

—

LED indicators

Yes

—

Yes

—

Number of fans

1 fan(s)

—

2 fan(s)

—

Product colour

Black

—

Black

Rack mounting

Yes

—

Yes

Stackable

—

Yes

Wall mountable

—

Yes

—

Logistics data

Harmonized System (HS) code

85176990

—

85176990

—

Operational conditions

Heat dissipation

270.18 BTU/h

—

Non-operating altitude

—

0 - 3000 m

Operating altitude

0 - 3000 m

—

0 - 3000 m

Operating relative humidity (H-H)

0 - 90%

—

0 - 95%

Operating temperature (T-T)

0 - 40 °C

—

0 - 40 °C

0 - 50 °C

Storage relative humidity (H-H)

0 - 95%

—

0 - 95%

Storage temperature (T-T)

-20 - 70 °C

—

-20 - 70 °C

Data transmission

Jumbo frames

—

10000

—

Jumbo frames support

Yes

—

Yes

—

Latency (1 Gbps)

—

3.35 µs

—

MAC address table

4000 entries

—

16000 entries

4096 entries

16000 entries

Number of static routes

—

Packet buffer memory

—

1.5 MB

0.192 MB

16 MB

Static route

—

Yes

—

Yes

Store-and-forward

—

Yes

—

Switching capacity

32 Gbit/s

—

104 Gbit/s

32 Gbit/s

—

Multicast features

Multicast MAC address table

—

512 entries

—

Multicast support

—

Yes

—

Number of multicast groups filtered

—

128

—

Power over Ethernet (PoE)

Yes

—

Yes

Power over Ethernet plus (PoE+) ports quantity

—

Total Power over Ethernet (PoE) budget

76 W

—

380 W

231 W

—

Management features

Quality of Service (QoS) support

Yes

—

Yes

—

Switch layer

—

L2/L3/L4

—

L2/L3

Switch type

Unmanaged

—

Managed

—

Web-based management

—

Yes

—

Sustainability

Sustainability compliance

—

Yes

—
