Compare Netgear Hubs & Switches
Comparing 5 products side-by-side — specifications, pricing and stock. Showing Netgear products in the Hubs & Switches category.

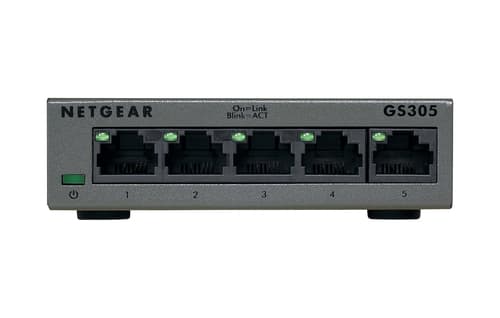

| Specification | Current product Netgear NETGEAR GS305 - V3 - switch - unmanaged - 5 x 10/100/1000 - desktop, wall-mountableGS305-300UKS £15.86 £19.03 inc VAT | Netgear NETGEAR AV Line M4250-9G1F-PoE+ - Switch - L3 - Managed - 8 x 10/100/1000 (8 PoE+) + 1 x 10/100/1000 + 1 x Gigabit SFP - side to side airflow - desktop - PoE+ (110 W)GSM4210PD-100EUS £618.88 £742.66 inc VAT | Netgear NETGEAR Smart GS752TPP - V3 - switch - L3 Lite - smart - 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP - rack-mountable - PoE+ (760 W)GS752TPP-300EUS £704.27 £845.12 inc VAT | Netgear NETGEAR GS324P - Switch - unmanaged - 16 x 10/100/1000 (PoE+) + 8 x 10/100/1000 - rack-mountable, desktop - PoE+ (190 W)GS324P-100EUS £220.49 £264.59 inc VAT | Netgear NETGEAR GS308PP - Switch - unmanaged - 8 x 10/100/1000 (PoE+) - desktop, wall-mountable - PoE+ (83 W) - DC powerGS308PP-100EUS £92.60 £111.12 inc VAT |
|---|---|---|---|---|---|
| Power | |||||
| AC input frequency | — | 50 - 60 Hz | — | 50 - 60 Hz | — |
| AC input voltage | — | 220 - 240 V | — | 100 - 240 V | — |
| DC input voltage | 5 V | — | — | — | 54 V |
| Input current | 0.7 A | — | — | 3 A | 1.66 A |
| Power consumption (max) | 2.15 W | — | 861 W | 210 W | 87.9 W |
| Power consumption (typical) | — | — | 49 W | — | — |
| Power source | — | AC/DC | AC | — | — |
| Power supply included | — | Yes | — | — | — |
| Network | |||||
| 10G support | Yes | — | — | No | No |
| Auto MDI/MDI-X | Yes | — | — | Yes | Yes |
| Auto-negotiation | — | — | — | Yes | Yes |
| Auto-sensing | — | — | — | — | Yes |
| Broadcast storm control | — | Yes | — | — | — |
| Flow control support | — | — | — | — | Yes |
| Full duplex | Yes | Yes | — | Yes | Yes |
| IPv4 routes | — | — | 32 | — | — |
| IPv6 routes | — | — | 32 | — | — |
| Link aggregation | — | Yes | — | — | — |
| Networking standards | IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x | IEEE 802.1p, IEEE 802.3at | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Number of VLANs | — | — | 256 | — | — |
| Rate limiting | — | Yes | — | — | — |
| Spanning tree protocol | — | Yes | — | — | — |
| VLAN support | — | — | Yes | — | — |
| Security | |||||
| Access Control List (ACL) | — | Yes | Yes | — | — |
| Access Control List (ACL) IPv4 entries | — | — | 100 | — | — |
| Authentication | — | MAC-based authentication | — | — | — |
| Authentication type | — | RADIUS | — | — | — |
| BPDU filtering/protection | — | Yes | — | — | — |
| DHCP features | — | DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping | DHCP snooping, DHCPv6 client | — | — |
| IGMP snooping | — | Yes | — | — | — |
| Loop protection | — | Yes | — | — | — |
| Queue scheduling algorithms | Weighted Round Robin (WRR) | — | — | Weighted Round Robin (WRR) | — |
| SSH/SSL support | — | Yes | — | — | — |
| Management features | |||||
| ARP inspection | — | — | Yes | — | — |
| Quality of Service (QoS) support | Yes | Yes | — | Yes | Yes |
| Switch layer | — | L2/L3 | L2/L3/L4 | — | — |
| Switch type | Unmanaged | Managed | Managed | Unmanaged | Unmanaged |
| Ports & interfaces | |||||
| Basic switching RJ-45 Ethernet ports quantity | 5 | 8 | 48 | 24 | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) | Gigabit Ethernet (10/100/1000) | Gigabit Ethernet (10/100/1000) | Gigabit Ethernet (10/100/1000) | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 | — | — | — | — |
| Installed SFP modules quantity | — | 0 | 4 | 0 | — |
| Installed SFP+ modules quantity | — | 0 | — | 0 | — |
| Power connector | — | — | — | — | DC-in jack |
| USB Type-A ports quantity | — | — | 1 | — | — |
| Performance | |||||
| Built-in processor | — | Yes | Yes | — | — |
| Fanless | Yes | — | — | — | — |
| Flash memory | — | — | 64 MB | — | — |
| Internal memory | — | 2048 MB | 512 MB | — | — |
| Mean time between failures (MTBF) | 3831422 h | — | 1296949 h | 1193574 h | 2752476 h |
| Noise level | — | 30.06 dB | 39.3 dB | — | — |
| Processor frequency | — | 1250 MHz | 800 MHz | — | — |
| Processor manufacturer | — | — | ARM | — | — |
| Processor model | — | ARM Cortex-A9 | ARM Cortex-A55 | — | — |
| Certificates | |||||
| Certification | CE Mark, FCC Part 15 Class B, IC Class B, RCM, VCCI, CB, CE LVD | — | CE, FCC Class A, RCM, ICES Class A, VCCI, KC, BSMI, UKCA | CB, CE LVD, UL | CE Mark, FCC Part 15 Class A, IC Class A, RCM, VCCI, BSMI, KC |
| Weight & dimensions | |||||
| Depth | 94 mm | 140 mm | 310 mm | 206 mm | 102 mm |
| Height | 29 mm | 40 mm | 432 mm | 43 mm | 27 mm |
| Weight | 250 g | 967 g | 5.03 kg | 2.44 kg | 600 g |
| Width | 101 mm | 210 mm | 440 mm | 330 mm | 236 mm |
| Design | |||||
| Electromagnetic compatibility | — | — | — | CE, FCC 15 A, IC A, RCM, VCCI, KC | — |
| Form factor | — | — | — | 1U | — |
| Housing material | Metal | — | — | Metal | Metal |
| LED indicators | Activity, Link, Power | PoE, Power, Status | — | Activity, Link, PoE, Power, Speed | Activity, Link, PoE, Power, Speed |
| Number of fans | — | — | 3 fan(s) | 1 fan(s) | — |
| Product colour | Black | Black | Grey | Black | Black |
| Rack mounting | No | Yes | Yes | Yes | Yes |
| Redundant fans support | — | — | Yes | — | — |
| Stackable | No | — | — | — | — |
| Wall mountable | Yes | — | — | — | Yes |
| Logistics data | |||||
| Harmonized System (HS) code | 85176990 | — | — | 85176990 | 85176990 |
| Operational conditions | |||||
| Heat dissipation | 7.35 BTU/h | 559.555 BTU/h | 2944.6 BTU/h | 718.2 BTU/h | 300.6 BTU/h |
| Non-operating altitude | — | 0 - 3000 m | — | — | — |
| Operating altitude | 0 - 3000 m | 0 - 3000 m | — | 0 - 3000 m | 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 90% | 0 - 90% | 0 - 90% | 10 - 90% | 0 - 90% |
| Operating temperature (T-T) | 0 - 40 °C | 0 - 50 °C | 0 - 50 °C | 0 - 45 °C | 0 - 40 °C |
| Storage relative humidity (H-H) | 0 - 95% | 0 - 95% | 0 - 95% | 10 - 95% | — |
| Storage temperature (T-T) | -20 - 70 °C | -20 - 70 °C | -20 - 70 °C | -20 - 70 °C | -20 - 70 °C |
| Multicast features | |||||
| IPv4 multicast entries | — | 2000 | — | — | — |
| Multicast support | — | Yes | Yes | — | — |
| Number of multicast groups filtered | — | — | 512 | — | — |
| Data transmission | |||||
| Jumbo frames | 9216 | — | — | 10000 | 9216 |
| Jumbo frames support | Yes | — | — | Yes | Yes |
| Latency (1 Gbps) | 2.6 µs | — | 4.411 µs | 4 µs | 3 µs |
| Latency (10-100 Mbps) | — | — | 9.617 µs | — | — |
| MAC address table | 2000 entries | 16000 entries | 16000 entries | 8000 entries | 4000 entries |
| Packet buffer memory | 0.128 MB | — | 1.5 MB | 0.192 MB | 0.192 MB |
| Packet forwarding rate (1 Gbps) | 1448000 pps | — | — | 1448000 pps | 1448000 pps |
| Store-and-forward | — | Yes | — | — | — |
| Switching capacity | 10 Gbit/s | 24 Gbit/s | 104 Gbit/s | 48 Gbit/s | 16 Gbit/s |
| Packaging content | |||||
| Manual | — | Yes | — | — | — |
| User guide | — | Yes | — | — | — |
| Packaging data | |||||
| Package depth | 238 mm | — | — | — | — |
| Package height | 64 mm | — | — | — | — |
| Package weight | 484 g | — | — | — | — |
| Package width | 142 mm | — | — | — | — |
| Power over Ethernet (PoE) | |||||
| Power over Ethernet (PoE) | No | Yes | Yes | Yes | Yes |
| Power over Ethernet (PoE) power per port | — | 30 W | 760 W | 30 W | 30 W |
| Power over Ethernet (PoE) type supported | — | — | — | — | PoE+ |
| Power over Ethernet plus (PoE+) ports quantity | — | 8 | 48 | 16 | 8 |
| Total Power over Ethernet (PoE) budget | — | 110 W | — | 190 W | 130 W |
