Product Comparison

Technical Specifications

Only show the difference

Feature

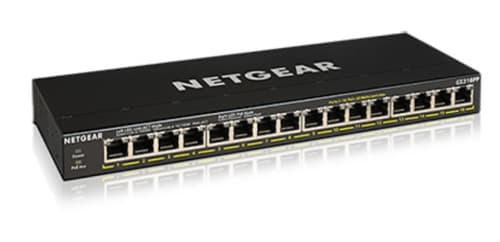

Brand: Netgear|SKU: GS316PP-100EUS

NETGEAR GS316PP - Switch - unmanaged - 16 x 10/100/1000 (PoE+) - desktop, wall-mountable - PoE+ (183 W)

£175.87

Stock: 1

Brand: Netgear|SKU: GS108EP-100EUS

NETGEAR Easy Smart GS108EP

£87.65

Stock: 63

Brand: Netgear|SKU: GS308LP-100EUS

8-PORT POE GIGABIT UNMANAGED SWITCH GS3

£66.98

Stock: 119

Brand: Netgear|SKU: GS724T-600EUS

NETGEAR GS724T - Version 6 - switch - L3 Lite - smart - 24 x 10/100/1000 + 2 x SFP - desktop, rack-mountable

£174.89

Stock: 16

Brand: Netgear|SKU: GS752TXP-300EUS

NETGEAR Smart GS752TXP - V3 - switch - L3 Lite - smart - 48 x 10/100/1000 (PoE+) + 4 x SFP+ - desktop, rack-mountable - PoE+ (380 W)

£611.93

Stock: 15

General

Capacity

—

VLANs supported: 64 IP multicast groups: 128

—

Device Type

—

Switch - 8 ports - L3 - smart

—

Enclosure Type

—

Desktop, wall-mountable

—

Features

—

QoS, VLAN management, LED status indicators, fanless, VLAN support, EEE, security slot (Kensington security lock compatible), VoIP support, web GUI management portal, DoS protection, loop prevention, rate limit, port mirroring, metal housing, uninterrupted PoE, WRR queuing, Link Aggregation, port trunking, port-based VLAN, IGMP snooping, IGMP snooping v2, IGMP snooping v3, DHCP client, DSCP Marking, ToS, full duplex capability, flow control, store and forward

—

Jumbo Frame Support

—

9216 bytes

—

MAC Address Table Size

—

4K entries

—

Performance

—

Packet buffer size: 1.5 MB Bandwidth: 16 Gbps

—

PoE Budget

—

62 W

—

Ports

—

8 x 10/100/1000 (PoE+)

—

Power Over Ethernet (PoE)

—

PoE+

—

Routing Protocol

—

Static IP routing, IGMP, IGMPv2, IGMPv3

—

Status Indicators

—

Power, PoE max, link/activity/speed, PoE

—

Subtype

—

Gigabit Ethernet

—

Power

AC input frequency

—

50/60 Hz

—

AC input voltage

—

100 - 240 V

—

DC input voltage

54 V

—

Electric Current Required

—

1.25 A

—

Input current

3.7 A

—

Power consumption (max)

195.9 W

—

51 W

Power consumption (typical)

—

13.5 W

—

Power Consumption Operational

—

6 Watt

—

Power Device

—

External power adapter

—

Power source

—

AC/DC

—

Power supply included

—

Yes

Voltage Required

—

DC 54 V

—

Network

10G support

—

Yes

Auto MDI/MDI-X

Yes

—

Auto-negotiation

Yes

—

Auto-sensing

Yes

—

Broadcast storm control

—

Yes

Flow control support

Yes

—

Yes

Full duplex

Yes

—

Yes

IP routing

—

Yes

—

Link aggregation

—

Yes

Networking standards

IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

IEEE 802.1Q, IEEE 802.1p, IEEE 802.3az

—

IEEE 802.1D, IEEE 802.1ab, IEEE 802.1as, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3x, IEEE 802.3z

IEEE 802.1ab, IEEE 802.1as, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

Number of VLANs

—

256

—

Port mirroring

—

Yes

—

Yes

Port trunking

—

Yes

—

Rate limiting

—

Yes

—

Yes

Spanning tree protocol

—

Yes

Virtual LAN features

—

Port-based VLAN

—

Voice VLAN

VLAN support

—

Yes

—

Yes

Security

Access Control List (ACL)

—

Yes

DHCP features

—

DHCP client

—

DHCP client, DHCP snooping

DHCP client

IGMP snooping

—

Yes

—

Yes

MAC address filtering

—

Yes

Password protection

—

Yes

—

Queue scheduling algorithms

Weighted Round Robin (WRR)

Priority queuing (PQ), Strict Priority Queue (SPQ), Weighted Round Robin (WRR)

—

Security algorithms

—

HTTPS, SSL/TLS

—

SSH/SSL support

—

Yes

Other features

Bandwidth

—

16 Gbit/s

—

Connectivity technology

—

Wired

—

Networking features

—

Ethernet, Fast Ethernet, Gigabit Ethernet

—

Power requirements

—

100 - 240 VAC

—

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

—

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

—

Gigabit Ethernet (10/100/1000)

10G Ethernet (100/1000/10000)

Power connector

DC-in jack

—

DC-in jack

—

SFP module slots quantity

—

SFP+ module slots quantity

—

Performance

Built-in processor

—

Yes

Firmware upgradeable

—

Yes

—

Flash memory

—

64 MB

Mean time between failures (MTBF)

2362192 h

859126 h

—

1999946 h

1296949 h

Noise level

—

0 dB

36.6 dB

Certificates

Certification

CE, FCC Part A, IC A, RCM, VCCI, BSMI, KC, CB, CE LVD

CE, EN, FCC, VCCI

—

Compliance certificates

—

BSMI, CE, Federal Communications Commission (FCC), KC, VCCI

—

Weight & dimensions

Depth

102 mm

—

169 mm

345 mm

Height

27 mm

—

43 mm

Weight

880 g

522 g

—

1.62 kg

5.54 kg

Width

286 mm

—

328 mm

440 mm

Design

Form factor

—

Housing material

Metal

—

LED indicators

Activity, Link, PoE, Power, Speed

Activity, Link, PoE, Power, Speed, System

—

Activity, Link

—

Number of fans

—

0 fan(s)

—

Product colour

Black

Grey

—

Blue, Grey

Black

Rack mounting

—

Yes

Stackable

—

Yes

Wall mountable

Yes

—

Logistics data

Harmonized System (HS) code

85176990

—

Operational conditions

Heat dissipation

669.9 BTU/h

—

2944.6 BTU/h

Non-operating altitude

—

0 - 3000 m

Operating altitude

0 - 3000 m

—

0 - 3000 m

Operating relative humidity (H-H)

0 - 90%

—

0 - 90%

0 - 95%

Operating temperature (T-T)

0 - 40 °C

—

0 - 45 °C

0 - 50 °C

Storage relative humidity (H-H)

—

0 - 95%

—

0 - 95%

Storage temperature (T-T)

-20 - 70 °C

—

-20 - 70 °C

Data transmission

Jumbo frames

9216

—

9000

—

Jumbo frames support

Yes

—

Yes

—

Latency (1 Gbps)

3.7 µs

—

Latency (10 Gbps)

—

4.107 µs

MAC address table

4000 entries

—

16000 entries

Number of queues

—

Number of static routes

—

Packet buffer memory

1 MB

1.5 MB

—

2 MB

16 MB

Packet forwarding rate (1 Gbps)

1448000 pps

—

Static route

—

Yes

Supported data transfer rates

—

10/100/1000 Mbps

—

Switching capacity

32 Gbit/s

—

52 Gbit/s

—

Protocols

Management protocols

—

SNMP v1/v2

—

Multicast features

Multicast support

—

Yes

—

Number of multicast groups filtered

—

128

—

512

—

Power over Ethernet (PoE)

Yes

—

Yes

Power over Ethernet (PoE) power per port

30 W

—

Power over Ethernet plus (PoE+) ports quantity

—

Total Power over Ethernet (PoE) budget

183 W

62 W

—

380 W

Management features

Quality of Service (QoS) support

Yes

—

Yes

—

Switch layer

—

L2/L3

—

L2+/L3

L2/L3/L4

Switch type

Unmanaged

Managed

—

Managed

System event log

—

Yes

—

Web-based management

—

Yes

—
