Product Comparison

Technical Specifications

Only show the difference

Feature

Brand: Netgear|SKU: GS516-300EUS

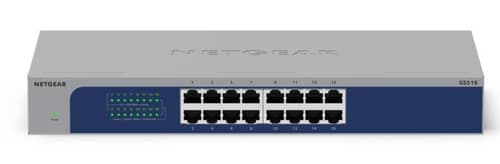

NETGEAR GS516

£79.08

Stock: 9876

Brand: Netgear|SKU: GS108EP-100EUS

NETGEAR Easy Smart GS108EP

£87.65

Stock: 63

Brand: Netgear|SKU: GS308LP-100EUS

8-PORT POE GIGABIT UNMANAGED SWITCH GS3

£66.98

Stock: 119

Brand: Netgear|SKU: GS724T-600EUS

NETGEAR GS724T - Version 6 - switch - L3 Lite - smart - 24 x 10/100/1000 + 2 x SFP - desktop, rack-mountable

£174.89

Stock: 16

Brand: Netgear|SKU: GS752TXP-300EUS

NETGEAR Smart GS752TXP - V3 - switch - L3 Lite - smart - 48 x 10/100/1000 (PoE+) + 4 x SFP+ - desktop, rack-mountable - PoE+ (380 W)

£611.93

Stock: 15

General

Capacity

—

VLANs supported: 64 IP multicast groups: 128

—

Device Type

Switch - 16 ports - unmanaged

Switch - 8 ports - L3 - smart

—

Enclosure Type

Desktop, rack-mountable

Desktop, wall-mountable

—

Features

Auto-uplink (auto MDI/MDI-X), QoS, metal housing, Auto Power Down

QoS, VLAN management, LED status indicators, fanless, VLAN support, EEE, security slot (Kensington security lock compatible), VoIP support, web GUI management portal, DoS protection, loop prevention, rate limit, port mirroring, metal housing, uninterrupted PoE, WRR queuing, Link Aggregation, port trunking, port-based VLAN, IGMP snooping, IGMP snooping v2, IGMP snooping v3, DHCP client, DSCP Marking, ToS, full duplex capability, flow control, store and forward

—

Jumbo Frame Support

9KB

9216 bytes

—

MAC Address Table Size

8K entries

4K entries

—

Performance

Switching capacity: 32 Gbps 1 Gbps average latency (64-byte packets): 15 µs Latency (100 Mbps): 30 µs Latency (10 Mbps): 35 μs Buffer memory: 512 KB

Packet buffer size: 1.5 MB Bandwidth: 16 Gbps

—

PoE Budget

—

62 W

—

Ports

16 x 10/100/1000

8 x 10/100/1000 (PoE+)

—

Power Over Ethernet (PoE)

—

PoE+

—

Routing Protocol

—

Static IP routing, IGMP, IGMPv2, IGMPv3

—

Status Indicators

Link/activity/speed, power

Power, PoE max, link/activity/speed, PoE

—

Subtype

Gigabit Ethernet

—

Power

AC input frequency

50/60 Hz

—

50/60 Hz

—

AC input voltage

100 - 240 V

—

100 - 240 V

—

Electric Current Required

—

1.25 A

—

Power consumption (max)

10 W

—

51 W

Power consumption (typical)

—

13.5 W

—

Power Consumption Operational

—

6 Watt

—

Power Device

—

External power adapter

—

Power source

—

AC/DC

—

Power supply included

Yes

—

Yes

Voltage Required

AC 100-240 V (50 - 60 Hz)

DC 54 V

—

Network

10G support

—

Yes

Auto MDI/MDI-X

Yes

—

Broadcast storm control

—

Yes

Flow control support

—

Yes

—

Yes

Full duplex

—

Yes

IP routing

—

Yes

—

Link aggregation

—

Yes

Networking standards

IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3p, IEEE 802.3u

IEEE 802.1Q, IEEE 802.1p, IEEE 802.3az

—

IEEE 802.1D, IEEE 802.1ab, IEEE 802.1as, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3x, IEEE 802.3z

IEEE 802.1ab, IEEE 802.1as, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

Number of VLANs

—

256

—

Port mirroring

—

Yes

—

Yes

Port trunking

—

Yes

—

Rate limiting

—

Yes

—

Yes

Spanning tree protocol

—

Yes

Virtual LAN features

—

Port-based VLAN

—

Voice VLAN

VLAN support

—

Yes

—

Yes

Security

Access Control List (ACL)

—

Yes

DHCP features

—

DHCP client

—

DHCP client, DHCP snooping

DHCP client

IGMP snooping

—

Yes

—

Yes

MAC address filtering

—

Yes

Password protection

—

Yes

—

Queue scheduling algorithms

—

Priority queuing (PQ), Strict Priority Queue (SPQ), Weighted Round Robin (WRR)

—

Security algorithms

—

HTTPS, SSL/TLS

—

SSH/SSL support

—

Yes

Other features

Bandwidth

—

16 Gbit/s

—

Connectivity technology

—

Wired

—

Networking features

—

Ethernet, Fast Ethernet, Gigabit Ethernet

—

Power requirements

—

100 - 240 VAC

—

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

—

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

—

Gigabit Ethernet (10/100/1000)

10G Ethernet (100/1000/10000)

Power connector

—

DC-in jack

—

SFP module slots quantity

—

SFP+ module slots quantity

—

Performance

Built-in processor

—

Yes

Firmware upgradeable

—

Yes

—

Flash memory

—

64 MB

Mean time between failures (MTBF)

—

859126 h

—

1999946 h

1296949 h

Noise level

—

0 dB

36.6 dB

Certificates

Certification

—

CE, EN, FCC, VCCI

—

Compliance certificates

BSMI, CB, CE, Federal Communications Commission (FCC), ISED, KC, RCM, UKCA, VCCI

BSMI, CE, Federal Communications Commission (FCC), KC, VCCI

—

Weight & dimensions

Depth

169 mm

—

169 mm

345 mm

Height

43 mm

—

43 mm

Weight

1.49 kg

522 g

—

1.62 kg

5.54 kg

Width

328 mm

—

328 mm

440 mm

Design

Form factor

—

Housing material

Metal

—

LED indicators

Activity, Link, Power, Speed

Activity, Link, PoE, Power, Speed, System

—

Activity, Link

—

Number of fans

—

0 fan(s)

—

Product colour

Grey

—

Blue, Grey

Black

Rack mounting

Yes

—

Yes

Stackable

—

Yes

Operational conditions

Heat dissipation

—

2944.6 BTU/h

Non-operating altitude

—

0 - 3000 m

Operating altitude

—

0 - 3000 m

—

0 - 3000 m

Operating relative humidity (H-H)

—

0 - 90%

—

0 - 90%

0 - 95%

Operating temperature (T-T)

0 - 50 °C

0 - 40 °C

—

0 - 45 °C

0 - 50 °C

Storage relative humidity (H-H)

—

0 - 95%

—

0 - 95%

Storage temperature (T-T)

-20 - 70 °C

—

-20 - 70 °C

Data transmission

Jumbo frames

—

9216

—

9000

—

Jumbo frames support

Yes

—

Yes

—

Latency (1 Gbps)

15 µs

—

Latency (10 Gbps)

35 µs

—

4.107 µs

Latency (10-100 Mbps)

30 µs

—

MAC address table

8000 entries

4000 entries

—

16000 entries

Number of queues

—

Number of static routes

—

Packet buffer memory

—

1.5 MB

—

2 MB

16 MB

Packet forwarding rate (1 Gbps)

1488000 pps

—

Static route

—

Yes

Supported data transfer rates

—

10/100/1000 Mbps

—

Switching capacity

32 Gbit/s

—

52 Gbit/s

—

Protocols

Management protocols

—

SNMP v1/v2

—

Multicast features

Multicast support

—

Yes

—

Number of multicast groups filtered

—

128

—

512

—

Power over Ethernet (PoE)

—

Yes

Power over Ethernet plus (PoE+) ports quantity

—

Total Power over Ethernet (PoE) budget

—

62 W

—

380 W

Management features

Quality of Service (QoS) support

Yes

—

Yes

—

Switch layer

—

L2/L3

—

L2+/L3

L2/L3/L4

Switch type

Unmanaged

Managed

—

Managed

System event log

—

Yes

—

Web-based management

—

Yes

—
