Compare Netgear Hubs & Switches
Comparing 5 products side-by-side — specifications, pricing and stock. Showing Netgear products in the Hubs & Switches category.

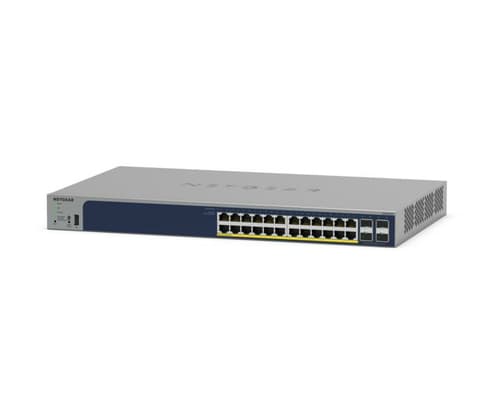

| Specification | Current product Netgear NETGEAR Smart GS728TPP - Switch - L3 Lite - smart - 24 x 10/100/1000 (PoE+) + 4 x SFP - rack-mountable - PoE+ (720 W)GS728TPP-300EUS £356.37 £427.64 inc VAT | Netgear NETGEAR M4350 Series M4350-12X12F - Switch - L3 - Managed - 12 x 1/2.5/5/10GBase-T + 12 x SFP+ - front to back airflow - rack-mountableXSM4324-100NES £2789.35 £3347.22 inc VAT | Netgear NETGEAR M4350-44M4X4V - Switch - L3 - Managed - 44 x 100/1000/2.5G (PoE++) + 4 x 100/1000/2.5/5/10G (PoE++) + 4 x 25 Gigabit SFP28 - front to back airflow - rack-mountable - PoE++ (3314 W)MSM4352-100NES £5070.49 £6084.59 inc VAT | Netgear NETGEAR Smart GS728TP - Switch - L3 Lite - smart - 16 x 10/100/1000 (PoE) + 8 x 10/100/1000 (PoE+) + 4 x SFP - rack-mountable - PoE+ (192 W)GS728TP-300EUS £275.76 £330.91 inc VAT | Netgear NETGEAR 300 Series GS305P - Version 3 - switch - SOHO - unmanaged - 5 x 10/100/1000 (4 PoE+) - desktop, wall-mountable - PoE+ (63 W)GS305P-300EUS £49.39 £59.27 inc VAT |
|---|---|---|---|---|---|
| Power | |||||
| DC input voltage | — | — | — | — | 54 V |
| Input current | — | — | — | — | 1.25 A |
| Power consumption (max) | 427 W | — | 351.5 W | 226 W | 66.78 W |
| Power consumption (typical) | 26 W | 95.8 W | 133.5 W | 24 W | — |
| Power source | AC | AC | AC | AC | DC |
| Power supply included | — | Yes | Yes | — | — |
| Network | |||||
| 10G support | — | Yes | Yes | — | No |
| 6to4 tunnel | — | Yes | Yes | — | — |
| Auto MDI/MDI-X | — | — | — | — | Yes |
| Auto-sensing | — | — | — | — | Yes |
| Broadcast storm control | — | Yes | Yes | — | — |
| Ethernet LAN data rates | — | — | — | — | 10,100,1000 Mbit/s |
| Flow control support | — | Yes | Yes | — | Yes |
| Full duplex | — | Yes | Yes | — | Yes |
| Half duplex | — | — | — | — | Yes |
| IPv4 routes | 32 | 512 | 512 | 32 | — |
| IPv6 routes | 32 | 256 | 256 | 32 | — |
| Link aggregation | — | Yes | Yes | — | — |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ak, IEEE 802.3bz, IEEE 802.3u | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ak, IEEE 802.3bz, IEEE 802.3u | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Number of VLANs | 256 | 4093 | 4093 | 256 | — |
| Policy-based routing | — | Yes | Yes | — | — |
| Port mirroring | — | — | — | Yes | — |
| Rate limiting | — | Yes | Yes | — | — |
| Spanning tree protocol | — | Yes | Yes | — | — |
| Virtual LAN features | — | MAC address-based VLAN, Private VLAN, Voice VLAN | MAC address-based VLAN, Private VLAN, Voice VLAN | — | — |
| VLAN support | Yes | Yes | Yes | Yes | — |
| Ports & interfaces | |||||
| 10G Ethernet (copper) ports quantity | — | 12 | 4 | — | — |
| 2.5G Ethernet (copper) ports quantity | — | — | 44 | — | — |
| Basic switching RJ-45 Ethernet ports quantity | 24 | 12 | 48 | 24 | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) | 10G Ethernet (100/1000/10000) | 2.5G Ethernet (100/1000/2500) | Gigabit Ethernet (10/100/1000) | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 4 | 0 | 0 | 4 | — |
| Installed SFP+ modules quantity | — | 0 | 0 | — | — |
| Power connector | — | AC-in jack | AC-in jack | — | DC-in jack |
| SFP+ module slots quantity | — | 12 | — | — | — |
| SFP28 ports quantity | — | — | 4 | — | — |
| USB Type-A ports quantity | 1 | — | — | 1 | — |
| Security | |||||
| Access Control List (ACL) | Yes | Yes | Yes | Yes | — |
| Access Control List (ACL) egress | — | 1023 | 1023 | — | — |
| Access Control List (ACL) ingress | — | 511 | 511 | — | — |
| Access Control List (ACL) IPv4 entries | 100 | — | — | 100 | — |
| Authentication | — | Guest VLAN, MAC-based authentication | Guest VLAN, MAC-based authentication | — | — |
| Authentication type | — | RADIUS, TACACS+ | RADIUS, TACACS+ | — | — |
| BPDU filtering/protection | — | Yes | Yes | — | — |
| DHCP features | DHCP snooping, DHCPv6 client | DHCP Option 150, DHCP Option 66, DHCP Option 67, DHCP relay, DHCP server, DHCP snooping | DHCP Option 150, DHCP Option 66, DHCP Option 67, DHCP relay, DHCP server, DHCP snooping | DHCP snooping, DHCPv6 client | — |
| DoS attack prevention | — | Yes | Yes | — | — |
| IGMP proxy | — | Yes | Yes | — | — |
| IGMP snooping | — | Yes | Yes | — | — |
| Loop protection | — | Yes | Yes | — | — |
| MAC address filtering | — | Yes | Yes | — | — |
| Password protection | — | Yes | Yes | — | — |
| Queue scheduling algorithms | — | Strict Priority Queue (SPQ), Weighted random early detection (WRED) | Strict Priority Queue (SPQ), Weighted random early detection (WRED) | — | — |
| Root protection | — | Yes | Yes | — | — |
| Static port security | — | Yes | Yes | — | — |
| Design | |||||
| Airflow direction | — | Front-to-back airflow | Front-to-back airflow | — | — |
| Form factor | — | 1U | 1U | — | — |
| LED indicators | — | Yes | Yes | — | Yes |
| Number of fans | 2 fan(s) | — | — | 2 fan(s) | — |
| Product colour | Grey | Black | Black | Grey | Black |
| Rack mounting | Yes | Yes | Yes | Yes | No |
| Redundant fans support | Yes | — | — | Yes | — |
| Stackable | — | Yes | Yes | — | No |
| Wall mountable | — | — | — | — | Yes |
| Management features | |||||
| ARP inspection | Yes | Yes | Yes | Yes | — |
| Quality of Service (QoS) support | — | Yes | Yes | — | Yes |
| Switch layer | L2/L3/L4 | L3 | L3 | L2/L3/L4 | — |
| Switch type | Managed | Managed | Managed | Managed | Unmanaged |
| Web-based management | — | Yes | Yes | — | — |
| Performance | |||||
| Built-in processor | Yes | Yes | Yes | Yes | — |
| Flash memory | 64 MB | 512 MB | 512 MB | 64 MB | — |
| Internal memory | 512 MB | 2048 MB | 2048 MB | 512 MB | — |
| Mean time between failures (MTBF) | 1252990 h | — | — | 1751613 h | 4113947 h |
| Memory type | — | DDR4-SDRAM | DDR4-SDRAM | — | — |
| Noise level | 33.3 dB | — | — | 26.8 dB | — |
| Processor frequency | 800 MHz | 1800 MHz | 1800 MHz | 800 MHz | — |
| Processor manufacturer | ARM | — | — | ARM | — |
| Processor model | ARM Cortex-A55 | ARM Cortex-A57 | ARM Cortex-A57 | ARM Cortex-A55 | — |
| sFlow | — | Yes | Yes | — | — |
| Packaging content | |||||
| Cables included | — | AC, USB Type-C | AC, USB Type-C | — | — |
| Quick start guide | — | Yes | Yes | — | — |
| Rack mount kit | — | Yes | Yes | — | — |
| Certificates | |||||
| Certification | CE, FCC Class A, RCM, ICES Class A, VCCI, KC, BSMI, UKCA | — | — | CE, FCC Class A, RCM, ICES Class A, VCCI, KC, BSMI, UKCA | — |
| Compliance certificates | — | BSMI, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD) | BSMI, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD) | — | — |
| Weight & dimensions | |||||
| Depth | 257 mm | 400 mm | 400 mm | 257 mm | 101 mm |
| Height | 432 mm | 43.2 mm | 43.2 mm | 432 mm | 27 mm |
| Weight | 4.11 kg | 4.3 kg | 7.34 kg | 3.78 kg | 400 g |
| Width | 440 mm | 220 mm | 440 mm | 440 mm | 158 mm |
| Protocols | |||||
| GARP VLAN Registration Protocol (GVRP) | — | Yes | Yes | — | — |
| Management protocols | — | SNMP V1, V2, V3 | SNMP V1, V2, V3 | — | — |
| Routing protocols | — | OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2 | OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2 | — | — |
| Operational conditions | |||||
| Heat dissipation | — | — | — | 772.9 BTU/h | 228.38 BTU/h |
| Non-operating altitude | — | 0 - 3000 m | 0 - 3000 m | — | — |
| Operating altitude | — | 0 - 3000 m | 0 - 3000 m | — | 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 90% | 0 - 90% | 0 - 90% | 0 - 90% | 0 - 90% |
| Operating temperature (T-T) | 0 - 50 °C | 0 - 50 °C | 0 - 45 °C | 0 - 50 °C | 0 - 40 °C |
| Storage relative humidity (H-H) | 0 - 95% | 0 - 95% | 0 - 95% | 0 - 95% | — |
| Storage temperature (T-T) | -20 - 70 °C | -20 - 70 °C | -20 - 70 °C | -20 - 70 °C | — |
| Packaging data | |||||
| Included power plug types | — | EU, UK, NA | EU, UK, NA | — | — |
| Data transmission | |||||
| Jumbo frames | — | 12000 | 12000 | — | 9216 |
| Jumbo frames support | — | Yes | Yes | — | Yes |
| Latency (1 Gbps) | 4.701 µs | 2.14 µs | — | 4.691 µs | — |
| Latency (10 Gbps) | — | 2.29 µs | 2.27 µs | — | — |
| Latency (10-100 Mbps) | 8.871 µs | — | — | 8.864 µs | — |
| MAC address table | 16000 entries | 16000 entries | 16000 entries | 16000 entries | 2000 entries |
| Packet buffer memory | 1.5 MB | 32 MB | 32 MB | 1.5 MB | 0.128 MB |
| Packet forwarding rate (1 Gbps) | — | — | — | — | 1448000 pps |
| Store-and-forward | — | Yes | Yes | — | — |
| Switching capacity | 56 Gbit/s | 480 Gbit/s | 500 Gbit/s | 56 Gbit/s | 10 Gbit/s |
| Throughput | — | 357.12 Mpps | 372 Mpps | — | — |
| Multicast features | |||||
| Multicast Listener Discovery (MLD) snooping | — | Y | Y | — | — |
| Multicast support | Yes | Yes | Yes | Yes | — |
| Number of multicast groups filtered | 512 | — | — | 512 | — |
| Power over Ethernet (PoE) | |||||
| Power over Ethernet (PoE) | Yes | No | Yes | Yes | Yes |
| Power over Ethernet (PoE) power per port | 380 W | — | 90 W | 190 W | 30 W |
| Power over Ethernet 4PPoE (PoE++) ports quantity | — | — | 48 | — | — |
| Power over Ethernet plus (PoE+) ports quantity | 24 | — | — | 24 | — |
| Total Power over Ethernet (PoE) budget | — | — | 3314 W | — | 63 W |
| Other features | |||||
| Power supply | — | 240 W | 550 W | — | — |
| Sustainability | |||||
| Sustainability compliance | — | Yes | Yes | — | — |
