Technical Specifications

General
API Supported
DirectX 12, Shader Model 6.6, OpenGL 4.63, Vulkan 1.3, CUDA 11.6, OpenCL 3.0, DirectCompute
Bus Type
PCI Express 5.0 x16
CUDA Cores
24064
Device Type
Graphics card
Features
5th gen Tensor Cores, 4th gen Ray Tracing Cores, 110 Tflops peak single-precision performance, 333 Tflops peak RT Core performance, Multi-Instance GPU (MIG) technology, NVIDIA DLSS 4, Enhanced Streaming Multiprocessors (SMs), Active Thermal Solution, full-height dual-slot, Error Correcting Codes (ECC) Memory
Graphics Engine

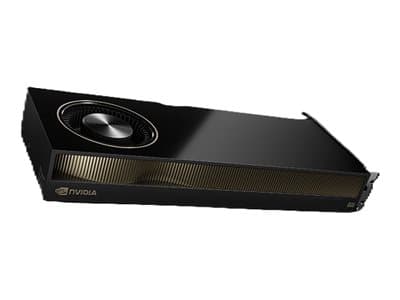

NVIDIA RTX PRO 6000 Blackwell Max-Q
Interfaces Details
4 x DisplayPort
Localisation
Region: United Kingdom
Max Monitors Supported
4
Max Resolution
7680 x 4320 at 100 Hz
Max Resolution Details
DisplayPort: 7680 x 4320 at 100 Hz (dual displays) / 3840 x 2160 at 165 Hz (four displays)
Product Form Factor
Mini PC
Type
Personal computer
Memory
Bandwidth
1792 GBps
Bus Width
512-bit
Size
96 GB
Technology
GDDR7 SDRAM
Power
Device Type
Power supply
RAM
Configuration Features
Unified memory
Installed Size
128 GB
Technology
LPDDR5X SDRAM
Hard Drive
Capacity
1 x 4 TB
Features
NVM Express (NVMe) self-encrypting
Type
SSD - M.2
Miscellaneous
Cables Included
16-pin PCIe 5.0 cable
Compliant Standards
DisplayPort 2.1
Depth
26.7 cm
Height
11.2 cm
Package Type
Bulk
Power Consumption Operational
300 Watt
System requirements
Additional Requirements
16 pin PCI Express power connector
Processor / Chipset
CPU
ARM Cortex-A725 + Cortex-X925
CPU Qty
2
Number of Cores
20-core
Networking
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, Bluetooth 5.3 LE, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n
Ethernet Controller
Mellanox ConnectX-7
Wireless LAN Supported
Yes
Weight & Dimensions
Depth
15 cm
Height
5.05 cm
Weight
1.2 kg
Width
15 cm
Graphics Controller
Floating Point Performance
1000 TFLOPS
Graphics Processor
NVIDIA Blackwell Tensor Core
Video Interfaces
HDMI
Connections & Expansion
Interfaces
1 x HDMI, 1 x 10 Gigabit Ethernet - RJ-45, 4 x USB - Type C
Monitor
Monitor Type
None.
Performance
NPU Performance Up To (TOPS)
3511 TOPS
Operating System / Software
OS Provided
Ubuntu
Software
NVIDIA DGX OS
Optical Storage
Type
No optical drive
