Product Comparison

Technical Specifications

Only show the difference

Feature

Brand: Sonicwall|SKU: 02-SSC-8376

SonicWall Switch SWS14-24FPOE - Switch - Managed - 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ - rack-mountable - PoE+ (410 W) - with 3 years 24x7 Support

£1089.02

Stock: 1

Brand: Sonicwall|SKU: 02-SSC-4866

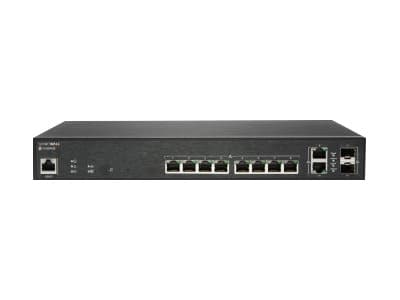

SonicWall Switch SWS12-10FPOE

£237.49

Stock: 4

Brand: Sonicwall|SKU: 02-SSC-2466

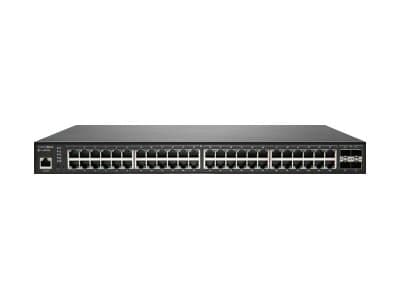

Sonicwall Switches SONICWALL SWITCH SWS14-48FPOE

£1396.88

Stock: 1

General

Authentication Method

—

RADIUS

Capacity

—

Virtual interfaces (VLANs): 4096

Compliant Standards

—

IEEE 802.1p, IEEE 802.3af, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3at

Device Type

—

Switch - 12 ports - Managed

Switch - 52 ports - Managed

Enclosure Type

—

Desktop

Rack-mountable 1U

Features

—

Flow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, firmware upgradable, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, RADIUS support, Jumbo Frames support, STP Root Guard, DHCP relay, LACP, DHCP client, 512KB packet buffer, Storm Control, Back Pressure Support, LLDP-MED, STP BPDU Guard, EEE, VLAN Tagging, daisy-chaining support, LAG, DSCP based QoS, zero-touch configuration

Flow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, firmware upgradable, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, RADIUS support, Jumbo Frames support, STP Root Guard, DHCP relay, LACP, DHCP client, 2MB packet buffer, Storm Control, Back Pressure Support, LLDP-MED, STP BPDU Guard, EEE, VLAN Tagging, daisy-chaining support, LAG, DSCP based QoS, zero-touch configuration

Flash Memory

—

32 MB

128 MB

MAC Address Table Size

—

8K entries

32K entries

Performance

—

Switching capacity: 24 Gbps

Switching capacity: 176 Gbps

PoE Budget

—

130 W

740 W

Ports

—

10 x 10/100/1000 (PoE+) + 2 x Gigabit SFP

48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+

Power Over Ethernet (PoE)

—

PoE+

RAM

—

256 MB

512 MB

Remote Management Protocol

—

SNMP 1, SNMP 3, SNMP 2c, HTTPS, SSH, CLI

Routing Protocol

—

Static IP routing

Status Indicators

—

Power, PoE, fault

PoE, LAN

Subtype

—

Gigabit Ethernet

10 Gigabit Ethernet

Power

Power Consumption Operational

—

152.8 Watt

530 Watt

Power Device

—

Internal power supply

Power Provided

—

180 Watt

900 Watt

Voltage Required

—

AC 120/230 V (50/60 Hz)

Miscellaneous

Compliant Standards

—

FCC Class A certified, UL, TUV GS, C-Tick, BSMI, cUL, CB, RoHS, KCC, WEEE, ANATEL, REACH, ICES Class A, LVD, EMC Class A, VCCI Class A, MSIP

MTBF

—

180,837 hours

100,645 hours

Pricing Type

—

Not for resale, demo

—

Weight & Dimensions

Depth

—

23 cm

—

Height

—

4.4 cm

—

Weight

—

2.5 kg

—

Width

—

33 cm

—

Environmental Parameters

Humidity Range Operating

—

10 - 95%

—

Max Operating Temperature

—

40 °C

—

Max Storage Temperature

—

70 °C

—

Min Operating Temperature

—

0 °C

—

Min Storage Temperature

—

-40 °C

—

Connections & Expansion

Interfaces

—

10 x 1000Base-T RJ-45 PoE+ 2 x 1000Base-X SFP 1 x console RJ-45

48 x 1000Base-T RJ-45 PoE+ 4 x 10GBase-X SFP+ 1 x console RJ-45
