Compare STARTECH Display Cables & Adapters
Comparing 5 products side-by-side — specifications, pricing and stock. Showing STARTECH products in the Display Cables & Adapters category.

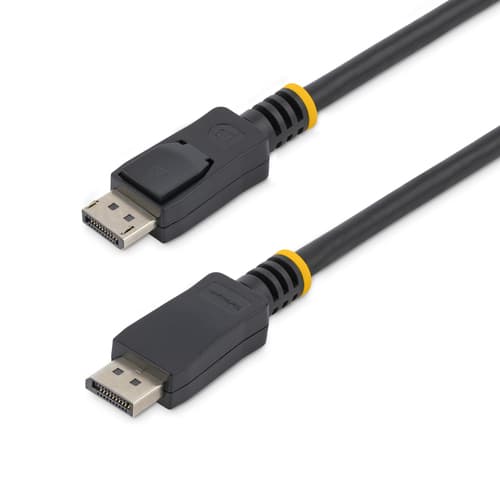

| Specification | Current product STARTECH StarTech.com 7m DisplayPort Cable with Latches M/M - DisplayPort cable - DisplayPort (M) to DisplayPort (M) - 7 m - latched - blackDISPL7M £8.63 £10.36 inc VAT | ||||
|---|---|---|---|---|---|
| Features | |||||
| AWG wire size | 26 | — | 28 | 34 | — |
| Bandwidth | 21600 MB/s | — | 21600 MB/s | 32400 MB/s | — |
| Cable length | 7 m | 0.1 m | 2 m | 1 m | — |
| Cable rating | CMG (CM) | — | CMG (CM) | — | — |
| Cable shielding | Aluminum mylar foil | — | Aluminum mylar foil | Aluminum mylar foil | — |
| Chipset | — | Analogic ANX9833 | — | — | PERICOM PI7C9X110BNBE |
| Connector 1 | DisplayPort | DisplayPort | DisplayPort | DisplayPort | — |
| Connector 1 form factor | Straight | Straight | Straight | Straight | — |
| Connector 1 gender | Male | Male | Male | Male | — |
| Connector 2 | DisplayPort | VGA (D-Sub) | DisplayPort | DisplayPort | — |
| Connector 2 form factor | Straight | Straight | Straight | Straight | — |
| Connector 2 gender | Male | Female | Male | Male | — |
| Connector contacts plating | Nickel | — | Nickel | Gold | — |
| Converter type | — | Active video converter | — | — | — |
| DisplayPort Content Protection (DPCP) | Yes | — | Yes | — | — |
| DisplayPort version | 1.2 | 1.2 | 1.2 | 1.4 | — |
| Fire-resistance rating | — | — | — | VW-1 | — |
| HBR3 support | — | — | — | Yes | — |
| HDCP | Yes | — | Yes | Yes | — |
| High Dynamic Range (HDR) supported | — | — | — | Yes | — |
| Jacket material | Polyvinyl chloride (PVC) | — | Polyvinyl chloride (PVC) | Polyvinyl chloride (PVC) | — |
| Latching connectors | Yes | — | Yes | Yes | — |
| Maximum refresh rate | 60 Hz | — | 60 Hz | 120 Hz | — |
| Maximum resolution | 3840 x 2400 pixels | 2048 x 1152 pixels | 3840 x 2400 pixels | 7680 x 4320 pixels | — |
| Multi-Stream Transport (MST) | Yes | — | Yes | Yes | — |
| Number of conductors | 19 | — | 19 | 19 | — |
| Plug and Play | Yes | Yes | Yes | Yes | — |
| Product colour | Black | Black | Black | Black | — |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2400, 2560 x 1600 (WQXGA) | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1152 | 1920 x 1080 (HD 1080), 3840 x 2400, 2560 x 1600 (WQXGA) | 3840 x 2160, 7680 x 4320 | — |
| Supported video modes | — | 720p, 1080p | — | — | — |
| Weight & dimensions | |||||
| Cable diameter | 7.3 mm | — | 7.3 mm | — | — |
| Depth | — | 230 mm | — | — | 135 mm |
| Height | — | 14 mm | — | — | 20 mm |
| Weight | 578 g | 32 g | 153.6 g | 59 g | 52 g |
| Width | — | 37 mm | — | — | 70 mm |
| Certificates | |||||
| Certification | — | CE, FCC, RoHS | — | CE, REACH | — |
| Compliance certificates | RoHS, CE | CE, RoHS | RoHS, CE | RoHS | — |
| Design | |||||
| Certification | — | — | — | — | CE, FC, ROHS |
| Product colour | — | — | — | — | Red |
| Other features | |||||
| Compatible operating systems | — | — | — | — | Windows 2000/XP/Vista |
| Connectivity technology | — | — | — | — | Wired |
| Form factor | — | — | — | — | LP/ST |
| I/O ports | — | — | — | — | 1x PCI 32-bit |
| Mac compatibility | — | — | — | — | No |
| Platform | — | — | — | — | PC |
| Ports quantity | — | — | — | — | 1 |
| Power requirements | — | — | — | — | 3.3V |
| Logistics data | |||||
| Harmonized System (HS) code | 84733080 | 84733080 | 84733080 | 84733080 | 84733020 |
| Master (outer) case height | 280 mm | 210 mm | 280 mm | 265 mm | — |
| Master (outer) case length | 500 mm | 502 mm | 500 mm | 400 mm | — |
| Master (outer) case width | 330 mm | 330 mm | 330 mm | 335 mm | — |
| Products per master (outer) case | 20 pc(s) | 150 pc(s) | 70 pc(s) | 120 pc(s) | — |
| Ports & interfaces | |||||
| Host interface | — | — | — | — | PCIe |
| Output interface | — | — | — | — | PCI 32-bit |
| Operational conditions | |||||
| Operating relative humidity (H-H) | — | 10 - 85% | — | — | — |
| Operating temperature (T-T) | — | 0 - 45 °C | — | — | 0 - 85 °C |
| Storage relative humidity (H-H) | — | 10 - 85% | — | — | — |
| Storage temperature (T-T) | — | -10 - 70 °C | — | — | — |
| Packaging data | |||||
| Package depth | 330 mm | 220 mm | 220 mm | 220 mm | 144 mm |
| Package height | 53 mm | 18 mm | 32 mm | — | 32 mm |
| Package weight | 580 g | 41 g | 151 g | 69 g | 121 g |
| Package width | 255 mm | 200 mm | 200 mm | 200 mm | 175 mm |
| Packaging content | |||||
| Quantity per pack | 1 pc(s) | — | 1 pc(s) | 1 pc(s) | — |
