Product Comparison

Technical Specifications

Only show the difference

Feature

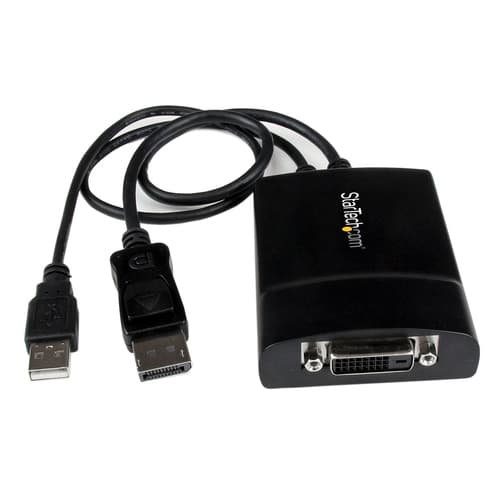

Brand: STARTECH|SKU: DP2DVID2

StarTech.com DisplayPort to DVI Adapter - Dual-Link - Active DVI-D Adapter for Your Monitor / Display - USB Powered - 2560x1600 (DP2DVID2) - DisplayPort / DVI adapter - DisplayPort, USB (power only) (M) to DVI-D (F) latched - USB 2.0 / DisplayPort 1.2 - 37 cm - active, USB power, 2560 x 1600 (WQXGA) support - black

£43.14

Stock: 16

Brand: STARTECH|SKU: DP2DVI2

StarTech.com DisplayPort to DVI-D Adapter - 1920x1200 - Passive DVI Video Converter with Latching DP Connector (DP2DVI2) - DisplayPort adapter - DisplayPort (M) to DVI-I (F) - 15.2 cm - black - for P/N: DK30C2DPEPUE, DK30C2DPPD, DK30C2DPPDUE, DK31C3HDPD, DK31C3HDPDUE, MST14DP123DP

£8.24

Stock: 24

Brand: STARTECH|SKU: DP21-2M-DP40-CABLE

StarTech.com 2m DisplayPort 2.1 Cable, VESA-Certified, DP40 DP 2.1 Cable - DisplayPort cable - DisplayPort (M) latched to DisplayPort (M) latched - DisplayPort 2.1 - 2 m - 8K60Hz support, 4K144Hz support, 1440p support 240Hz, UHBR10, HDR support, up to 40 Gbps data transfer rate, passive - black

£12.58

Stock: 46

Brand: STARTECH|SKU: MXTMMHQ1M

StarTech.com 1m Coax High Resolution Monitor VGA Cable HD15 M/M - VGA cable - HD-15 (VGA) (M) to HD-15 (VGA) (M) - 1 m - molded, thumbscrews - black

£4.61

Stock: 16

Brand: STARTECH|SKU: DP2VGA3

StarTech.com DisplayPort to VGA Display Adapter - 1080p 1920x1200 - Active DP to VGA (Male to Female) HD Video Converter for laptop/PC/Monitor (DP2VGA3) - Display adapter - DisplayPort (M) to HD-15 (VGA) (F) - 10 cm - active - black - for P/N: DK31C3HDPD, DK31C3HDPDUE, DKM30CHDPD, DKM30CHDPDUE, SV231QDPU34K, TB32DP14

£16.40

Stock: 165

Features

AWG wire size

—

Cable length

0.37 m

0.152 m

2 m

1 m

0.1 m

Cable material

—

Copper

—

Cable shielding

—

Aluminum mylar foil

—

Channels quantity

—

32 channels

—

Chipset

—

Analogic ANX9833

Connector 1

DisplayPort

VGA (D-Sub)

DisplayPort

Connector 1 form factor

Straight

—

Straight

Connector 1 gender

Male

Connector 2

DVI-D

DVI-I

DisplayPort

VGA (D-Sub)

Connector 2 form factor

Straight

—

Straight

Connector 2 gender

Female

Male

Female

Connector contacts plating

—

Nickel

—

Converter type

Active video converter

Passive video converter

—

Active video converter

Data transfer rate

—

40 Gbit/s

—

Display Stream Compression (DSC)

—

Yes

—

Display Stream Compression (DSC) version

—

1.2a

—

DisplayPort version

1.2

2.1

—

1.2

Dual Link DVI

Yes

—

Fire-resistance rating

—

VW-1

—

HBR2 support

Yes

—

HDCP

Yes

—

HDCP version

—

1.4

2.2

—

High Dynamic Range (HDR) supported

—

Yes

—

Jacket material

—

Thermoplastic elastomer (TPE)

—

Maximum refresh rate

120 Hz

60 Hz

144 Hz

—

Maximum resolution

2560 x 1600 pixels

1920 x 1200 pixels

7680 x 4320 pixels

1920 x 1200 pixels

2048 x 1152 pixels

Plug and Play

—

Yes

—

Yes

Power source

USB

—

Product colour

Black

Supported graphics resolutions

1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA)

640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900, 1600 x 600, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)

—

1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1152

Supported video modes

—

480p, 720p, 1080p

—

720p, 1080p

Weight & Dimensions

Cable diameter

—

6.5 mm

—

Depth

549 mm

254 mm

—

230 mm

Height

22 mm

17 mm

—

14 mm

Weight

160 g

43 g

106 g

195 g

32 g

Width

64 mm

42 mm

—

37 mm

Certificates

Certification

RoHS

CE, FCC, REACH

—

CE, FCC, RoHS

Compliance certificates

CE, RoHS

RoHS

—

CE, RoHS

Logistics data

Harmonized System (HS) code

84733080

—

84733080

Master (outer) case height

220 mm

—

210 mm

Master (outer) case length

497 mm

500 mm

—

502 mm

Master (outer) case width

337 mm

325 mm

—

330 mm

Products per master (outer) case

28 pc(s)

140 pc(s)

—

150 pc(s)

Operational conditions

Operating relative humidity (H-H)

—

5 - 90%

10 - 85%

0 - 80%

10 - 85%

Operating temperature (T-T)

0 - 45 °C

0 - 70 °C

0 - 45 °C

0 - 60 °C

0 - 45 °C

Storage relative humidity (H-H)

—

10 - 85%

Storage temperature (T-T)

-20 - 70 °C

-10 - 80 °C

-20 - 70 °C

-20 - 80 °C

-10 - 70 °C

Packaging data

Package depth

143 mm

220 mm

—

220 mm

Package height

35 mm

19 mm

—

17 mm

18 mm

Package weight

232 g

52 g

120 g

204 g

41 g

Package width

174 mm

200 mm

—

200 mm

Packaging content

Quantity per pack

—

1 pc(s)

—

Sustainability

Sustainability compliance

—

Yes

—
