Compare STARTECH LFD/LED Mounts
Comparing 5 products side-by-side — specifications, pricing and stock. Showing STARTECH products in the LFD/LED Mounts category.

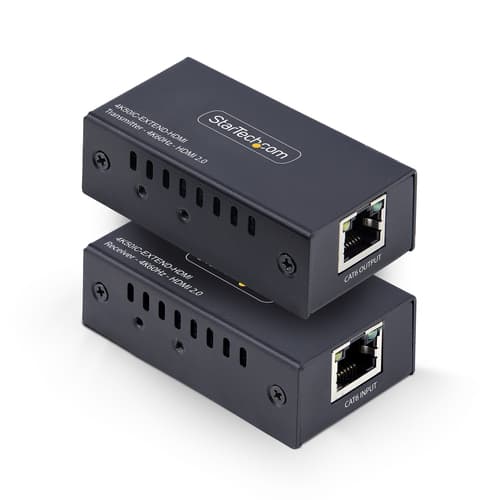

| Specification | Current product STARTECH StarTech.com HDMI Extender Over CAT5e/6 Kit, 4K 60Hz, Up to 200ft (60m) - Video/audio extender - HDMI - over CAT 5/5e/6 - up to 60 km4K50IC-EXTEND-HDMI £103.25 £123.90 inc VAT | ||||
|---|---|---|---|---|---|
| Power | |||||
| AC input voltage | 100 - 240 V | — | — | — | — |
| External power adapter | Yes | — | — | — | — |
| Input current | 0.3 A | — | — | — | — |
| Operating voltage (receiver) | 5 V | — | — | — | — |
| Operating voltage (transmitter) | 5 V | — | — | — | — |
| Output current | 2 A | — | — | — | — |
| Power consumption (typical) | 10 W | — | — | — | — |
| Power source type | USB | — | — | — | — |
| USB Power Delivery (USB PD) | Yes | — | — | — | — |
| Packaging content | |||||
| AC adapter included | Yes | — | — | — | — |
| Adapter bracket included | — | Yes | — | — | — |
| Anchors included | — | Yes | — | — | Yes |
| Decorative cover included | — | — | — | — | Yes |
| Included power plug types | ANZ, EU, NA, UK | — | — | — | — |
| Manual | — | Yes | — | Yes | Yes |
| Mounting brackets included | Yes | — | — | — | — |
| Mounting kit | — | Yes | — | — | — |
| Mounting plate included | — | — | — | Yes | — |
| Number of adapter brackets included | — | 2 | — | — | — |
| Number of anchors included | — | 6 | — | — | 6 |
| Number of decorative covers included | — | — | — | — | 2 pc(s) |
| Number of screws | — | 26 | — | 33 | 30 |
| Number of spacers included | — | 16 | — | 16 | 16 |
| Number of washers included | — | 10 | — | 13 | 10 |
| Quick start guide | Yes | — | Yes | — | — |
| Screws included | — | Yes | — | Yes | Yes |
| Spacer included | — | Yes | — | — | Yes |
| Washers included | — | Yes | — | — | Yes |
| Wrench included | — | Yes | — | Yes | — |
| Wrench type | — | Hexagonal wrench | — | Hexagonal wrench | — |
| Ergonomics | |||||
| Angle of rotation | — | — | — | 3° | — |
| Built-in spirit level | — | — | — | — | Yes |
| Cable management | — | Yes | — | Yes | No |
| Distance to the wall (max) | — | — | — | 59.5 cm | — |
| Distance to the wall (min) | — | 8.3 cm | — | 5.8 cm | 2.2 cm |
| Height adjustment | — | — | — | Yes | — |
| Rotating | — | — | — | Yes | — |
| Swivel angle | — | — | — | 180° | — |
| Tilt angle range | — | -15 - 15° | — | -15 - 8° | — |
| Design | |||||
| Anti-theft function | — | — | — | No | Yes |
| Certification | — | — | — | — | CE, FCC |
| Housing material | — | — | — | Aluminium, Steel | Plastic, Steel |
| Product colour | — | Black | — | Black, Silver | Black |
| Features | |||||
| Audio output channels | 7.1 channels | — | — | — | — |
| Cable types supported | Cat5e, Cat6 | — | — | — | — |
| Certification | — | — | RoHS, TAA, REACH, CE | — | — |
| HDCP | Yes | — | — | — | — |
| HDCP version | 2.2 | — | — | — | — |
| Height adjustment | — | — | Yes | — | — |
| Material | Metal | — | Aluminium, Plastic | — | — |
| Maximum refresh rate | 60 Hz | — | — | — | — |
| Maximum resolution | 3840 x 2160 pixels | — | — | — | — |
| Maximum transfer distance | 60 m | — | — | — | — |
| Non-slip base | — | — | Yes | — | — |
| Product colour | Black | — | Black | — | — |
| Rack mounting | No | — | — | — | — |
| Supported graphics resolutions | 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1440 x 900, 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 1920 x 1440, 2048 x 1152, 2048 x 1536 (QXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 2560 x 1920, 2560 x 2048 | — | — | — | — |
| Tilt angle range | — | — | -30 - 0° | — | — |
| Type | AV transmitter & receiver | — | — | — | — |
| Technical details | |||||
| Compliance certificates | Federal Communications Commission (FCC), RoHS | RoHS | — | — | RoHS |
| Country of origin | — | — | — | China | — |
| Sustainability certificates | — | — | — | — | RoHS |
| VESA mount included | — | — | — | Yes | — |
| Ports & interfaces | |||||
| Connectivity technology | Wired | — | — | — | — |
| HDMI in | 1 | — | — | — | — |
| HDMI version | 2.0 | — | — | — | — |
| Number of HDMI outputs | 1 | — | — | — | — |
| RJ-45 input ports | 1 | — | — | — | — |
| RJ-45 output ports | 1 | — | — | — | — |
| USB connector type | USB Type-C | — | — | — | — |
| USB ports quantity | 1 | — | — | — | — |
| Weight & dimensions | |||||
| Depth | — | 810 mm | 505 mm | 595 mm | — |
| Depth (max) | — | 81 cm | — | — | 89.8 cm |
| Height | — | 500 mm | 95 mm | 450 mm | 440 mm |
| Height (max) | — | — | 12.3 cm | — | — |
| Height (min) | — | — | 9.5 cm | — | — |
| Platform depth | — | — | 35 cm | — | — |
| Platform width | — | — | 45 cm | — | — |
| Receiver dimensions (WxDxH) | 40 x 67 x 23 mm | — | — | — | — |
| Receiver weight | 92 g | — | — | — | — |
| Transmitter dimensions (WxDxH) | 40 x 67 x 23 mm | — | — | — | — |
| Transmitter weight | 92 g | — | — | — | — |
| Weight | — | 3.8 kg | 3 kg | 6 kg | 2.9 kg |
| Width | — | 83 mm | 360 mm | 450 mm | 29 mm |
| Logistics data | |||||
| Harmonized System (HS) code | — | 85299097 | — | — | 85299097 |
| Master (outer) case height | 380 mm | 254 mm | — | 305 mm | 137 mm |
| Master (outer) case length | 330 mm | 853 mm | — | 460 mm | 1003 mm |
| Master (outer) case width | 430 mm | 280 mm | — | 605 mm | 254 mm |
| Products per master (outer) case | 30 pc(s) | 3 pc(s) | — | 1 pc(s) | 3 pc(s) |
| Mounting | |||||
| Maximum screen size | — | 190.5 cm (75") | — | 139.7 cm (55") | 190.5 cm (75") |
| Maximum VESA mount | — | 600 x 400 mm | — | 400 x 400 mm | 800 x 400 mm |
| Maximum weight capacity | — | 75 kg | — | 30 kg | 40 kg |
| Minimum screen size | — | 81.3 cm (32") | — | 58.4 cm (23") | 94 cm (37") |
| Minimum VESA mount | — | 75 x 75 mm | — | 75 x 75 mm | 300 x 200 mm |
| Mounting type | — | Wall | — | Wall | Wall |
| Number of displays supported | — | 1 | — | 1 | 1 |
| Panel mounting interface | — | 75 x 75,100 x 100,100 x 200,200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 200,600 x 300,600 x 400 | — | 75 x 75,100 x 100,200 x 100,200 x 200,300 x 300,400 x 200,400 x 400 | 300 x 200,300 x 300,400 x 200,400 x 400,600 x 400,800 x 400 |
| Operational conditions | |||||
| Operating relative humidity (H-H) | 0 - 90% | — | — | — | — |
| Operating temperature (T-T) | -20 - 60 °C | — | — | — | — |
| Storage temperature (T-T) | -30 - 70 °C | — | — | — | — |
| Packaging data | |||||
| Package depth | 117 mm | 835 mm | 505 mm | 440 mm | 978 mm |
| Package height | 77 mm | 89 mm | 100 mm | 95 mm | 49 mm |
| Package weight | 364 g | 4.9 kg | 3 kg | 6.1 kg | 3.9 kg |
| Package width | 150 mm | 238 mm | 360 mm | 585 mm | 235 mm |
