Product Comparison

Technical Specifications

Only show the difference

Feature

Brand: Western Digital|SKU: 0F38785

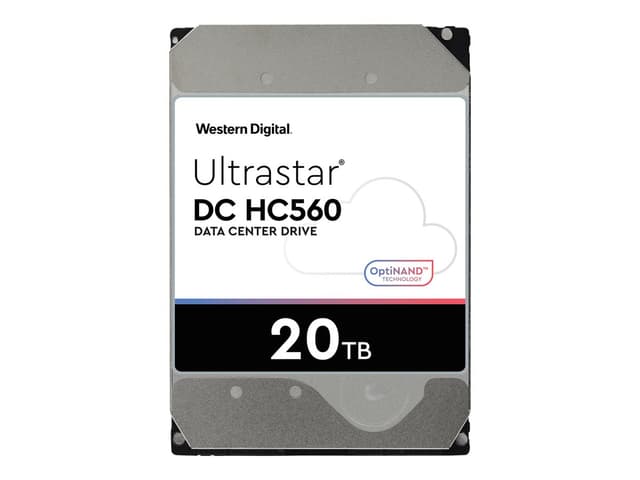

WD Ultrastar DC HC560 - hard drive - 20 TB - SATA 6Gb/s

£427.13

Stock: 2

Brand: Western Digital|SKU: WD6004FRYZ

WD Gold WD6004FRYZ - hard drive - Enterprise - 6 TB - SATA 6Gb/s

£178.68

Stock: 7

Brand: Western Digital|SKU: 0B47743

WD Ultrastar DC HC555 - Hard drive - Data Centre - 14 TB - internal - 3.5" - SAS 12Gb/s - 7200 rpm - buffer: 512 MB

£341.81

Stock: 1

Brand: Western Digital|SKU: WD100EAGZ

WD Blue - hard drive - 10 TB - SATA 6Gb/s

£235.79

Stock: 2

Brand: Western Digital|SKU: 0F48155

WD Ultrastar DC HC570 - Hard drive - 22 TB - internal - 3.5" - SATA 6Gb/s - 7200 rpm - buffer: 512 MB - for Intel Next Unit of Computing 13 Extreme Kit - NUC13RNGi7

£468.56

Stock: 2

General

Buffer Size

512 MB

256 MB

—

512 MB

—

Bytes per Sector

—

512

—

Capacity

20 TB

6 TB

—

10 TB

—

Depth

147 mm

—

147 mm

—

Device Type

Hard drive - internal

—

Hard drive - internal

—

Features

OptiNAND technology, HelioSeal, 24x7 availability, Energy-Assisted Magnetic Recording (EAMR), Triple State Actuator (TSA)

Enterprise Class Reliability, HelioSeal, advanced format 512e, vibration sensor, ArmorCache Technology

—

Conventional magnetic recording (CMR), Low Power Management, NoTouch ramp load technology, Advanced Format technology

—

Form Factor

3.5"

—

3.5"

—

Height

26.1 mm

—

26.1 mm

—

Interface

SATA 6Gb/s

—

SATA 6Gb/s

—

Weight

690 g

715 g

—

750 g

—

Width

101.6 mm

—

101.6 mm

—

Power

Power Consumption

—

6.8 Watt (active), 5.5 Watt (idle)

—

8.8 Watt (read/write), 6.1 Watt (idle), 0.3 Watt (standby), 0.3 Watt (sleep)

—

Miscellaneous

Compliant Standards

RoHS 2011/65/EU, RoHS 2015/863/EU, BSMI, ICES-003, NMB-003, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB Scheme, TUV, UL

ROHS Directive 2015/863/EU, ROHS Directive 2011/65/EU

—

BSMI, ICES-003, FCC, Maghreb, RCM, UKCA, VCCI, TUV, UL, CB Scheme, NMB-003

—

Reliability

24x7 Operation

Yes

—

Load / Unload Cycles

600,000

—

300,000

—

MTBF

2,500,000 hours

2,000,000 hours

—

Non-Recoverable Errors

1 per 10^15

—

1 per 10^14

—

Performance

Average Latency

4.16 ms

—

Drive Class

—

Enterprise

—

Drive Transfer Rate

600 MBps (external)

—

600 MBps (external)

—

Internal Data Rate

269 MBps

267 MBps

—

260 MBps

—

Spindle Speed

7200 rpm

—

7200 rpm

—

Connections & Expansion

Compatible Bay

3.5"

—

3.5"

—

Interfaces

1 x SATA 6 Gb/s

—

1 x SATA 6 Gb/s

—

Environmental Parameters

Max Operating Temperature

60 °C

—

60 °C

—

Max Storage Temperature

—

70 °C

—

70 °C

—

Min Operating Temperature

5 °C

—

0 °C

—

Min Storage Temperature

—

-40 °C

—

-40 °C

—

Shock Tolerance (non-operating)

50 g @ 2 ms half-sine wave

300 g @ 2 ms half-sine wave

—

250 g @ 2 ms

—

Shock Tolerance (operating)

250 g @ 2 ms half-sine wave

70 g @ 2 ms half-sine wave

—

70 g @ 2 ms

—

Sound Emission

32 dB

29 dBA

—

34 dBA

—

Vibration Tolerance (non-operating)

1.04 gRMS @ 2-200 Hz

—

Vibration Tolerance (operating)

0.7 gRMS @ 5-500 Hz

—

Software / System Requirements

OS Required

Linux, Microsoft Windows Server, Microsoft Windows

—

Software Included

—

Acronis True Image WD Edition

—

Manufacturer Warranty

Service & Support

Limited warranty - 5 years

—

Limited warranty - 2 years

—
