This product is out of stock
We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

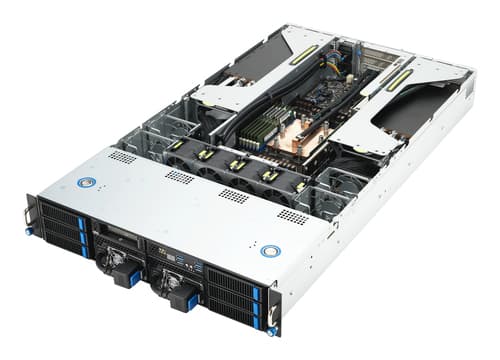

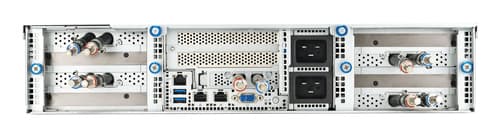

ESC4000A-E12-SKU1/1G/2600W 1+1
- Flexible networking module design: Optional OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
- Scale-up storage and expansion design: A total of six bays in combination of Tri-Mode NVMe/SATA/SAS drives on the front panel and eight PCIe 5.0 slots for higher bandwidth and system upgrade
- Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
- Powerful performance: Powered by AMD EPYC 9004 processors with 128 Zen 4c cores, 12-channel, up to 4800 MHz DDR5 and support for a maximum TDP of up to 400 watts per socket

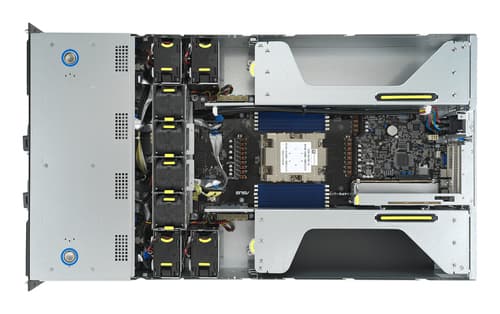

- Power-efficient system design: Independent CPU and GPU airflow tunnels for thermal optimization and support for up to two 2600W Titanium redundant power supplies for uninterrupted operation
- AI and HPC workloads ready: Up to four dual-slot active or passive GPUs, NVIDIA NVLink® bridge, and NVIDIA Bluefield DPU support to enable performance scaling

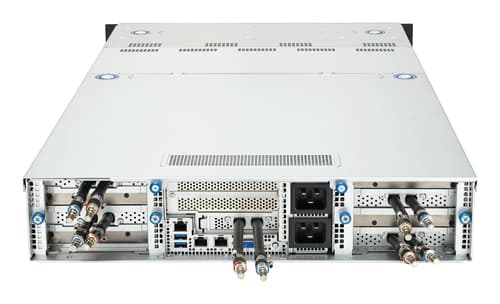

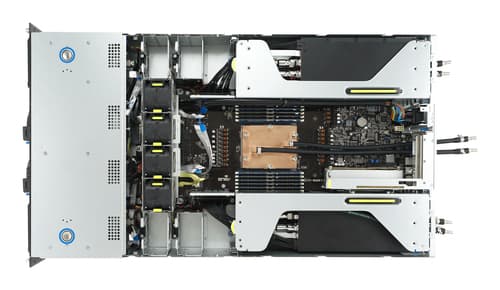

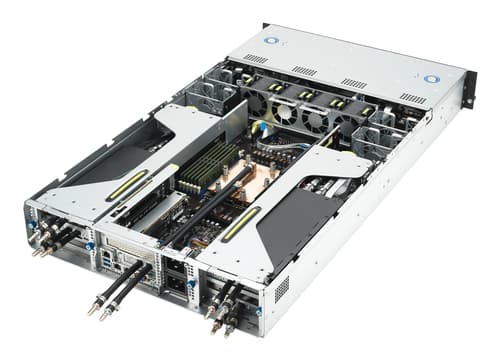

- Comprehensive cooling solutions: Designed for both liquid cooling and enhanced air cooling based on CPU TDP for versatile workloads
Overview
ASUS ESC4000A-E12, Socket SP5, 1152 MB, AMD EPYC 9004, DDR5-SDRAM, 256GB, 16GB, 32GB, 64GB, 128GB, 3 TB
Specifications
Processor
- Processor socket
- Socket SP5
- Built-in processor
- No
- Processor model
- 9004
- Number of processors supported
- 1
- Maximum cache
- 1152 MB MB
- Compatible processor series
- AMD EPYC 9004
Packaging data
- Package weight
- 34.8 kg kg
Storage
- Number of 2.5" bays
- 4
- Number of storage drives supported
- 12
- Hot-swap HDD bays
- Yes
- Number of 3.5" bays
- 8
- Storage drive sizes supported
- 2.5,3.5" "
- Supported storage drive types
- HDD & SSD
- Supported storage drive interfaces
- Serial ATA, Serial Attached SCSI (SAS)
Network
- Ethernet LAN
- Yes
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN data rates
- 10,100,1000 Mbit/s Mbit/s
- LAN controller
- Intel® I350

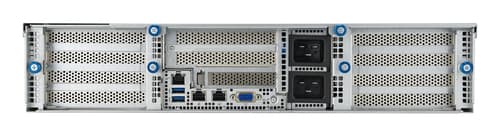

Ports & interfaces
- IPMI LAN (RJ-45) port
- Yes
- VGA (D-Sub) ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 6
- USB 2.0 ports quantity
- 0
Expansion slots
- PCI Express x8 slots
- 2
- PCI Express x16 slots
- 14
Memory
- Number of DIMM slots
- 12
- Supported RDIMM clock speeds
- 4400,4800 MHz MHz
- Supported memory types
- DDR5-SDRAM
- Supported DIMM module capacities
- 256GB, 16GB, 32GB, 64GB, 128GB
- Maximum internal memory
- 3 TB TB
Features
- Trusted Platform Module (TPM) version
- 2.0
- Integrated BMC with IPMI
- Yes
- Trusted Platform Module (TPM)
- Yes
Technical details
- Sustainability compliance
- Yes
- Sustainability certificates
- TCO
Design
- Product colour
- Silver
- Chassis type
- Rack (2U)
Power
- Number of main power supplies
- 2
- Power supply
- 2600 W W
- 80 PLUS certification
- 80 PLUS Titanium
Operational conditions
- Operating temperature (T-T)
- 10 - 35 °C °C
- Storage temperature (T-T)
- -40 - 70 °C °C
- Storage relative humidity (H-H)
- 20 - 90% %
Weight & dimensions
- Width
- 800 mm mm
- Depth
- 439.5 mm mm
- Height
- 88.9 mm mm
- Weight
- 24 kg kg
