Open frame brackets
This open frame monitor can be equipped with optional external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and In-store Retail.
Authorised Technology Partners
All Verified
Authorised Reseller of
Dell TechnologiesLenovoIntelHPEIiyama+ more
Next Working Day
On qualifying orders
UK Dispatched
Fast & reliable nationwide
Expert Support
Mon–Fri, 8 am – 6 pm
Genuine Brands
Authorised reseller
Next-working-day delivery. Order before 17:30 (England & Wales) or 16:00 (Northern Ireland, Republic of Ireland, Scotland) to receive next-working-day delivery. Orders placed before 17:30 Friday are delivered Monday; after 17:30 Friday arrive Tuesday. Upgrades — pre-9, pre-10:30, pre-noon, special and secure bulk — available at extra cost.
Orders over £100 (ex VAT) receive FREE next-working-day delivery across the UK.
Instant digital delivery. Software licences, subscriptions, warranties & insurance, and electronic copies are delivered the same day via email — provided a valid email address is entered at checkout.
Currently Unavailable
This product is out of stock
We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

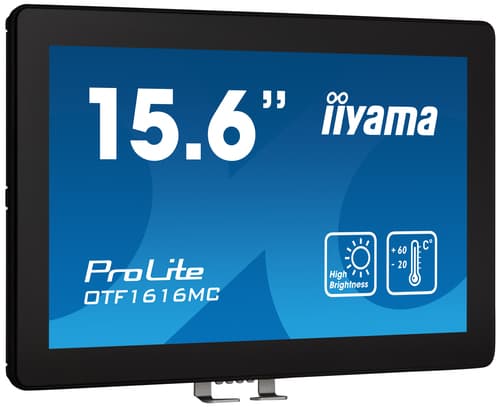

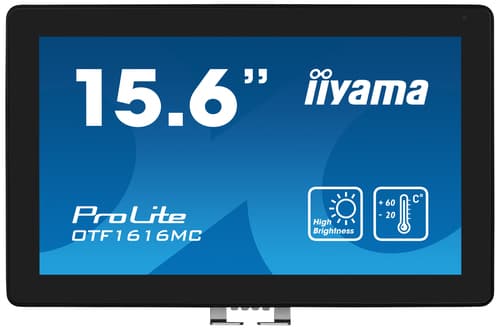

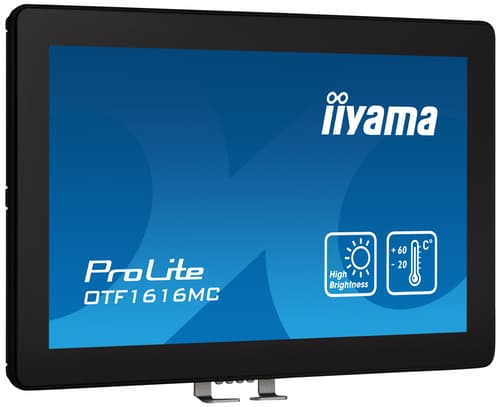

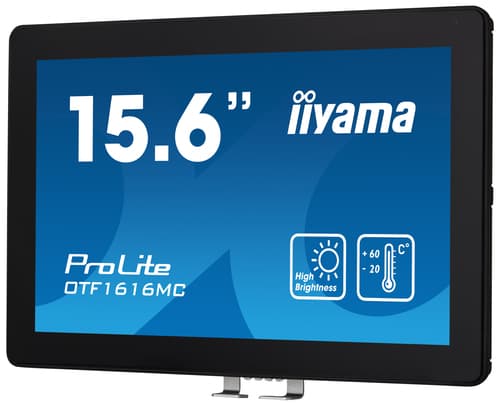

iiyama ProLite OTF1616MC-B1 - LED monitor - 15.6" - open frame - touchscreen - 1920 x 1080 Full HD (1080p) @ 60 Hz - VA - 1100 cd/m� - 800:1 - 25 ms - HDMI, VGA, DisplayPort - black
iiyama ProLite OTF1616MC-B1 - LED monitor - 15.6" - open frame - touchscreen - 1920 x 1080 Full HD (1080p) @ 60 Hz - VA - 1100 cd/m� - 800:1 - 25 ms - HDMI, VGA, DisplayPort - black
Overview
iiyama OTF1616MC-B1, 39.6 cm (15.6"), 1920 x 1080 pixels, Full HD, LCD, 25 ms, Black
Specifications
Display
- Touch technology
- Multi-touch
- Display resolution
- 1920 x 1080 pixels pixels
- Display technology
- LCD
- HD type
- Full HD
- Number of simultaneous touchpoints
- 10
- Display brightness (peak)
- 1100 cd/m² cd/m²
- Display brightness
- 935 cd/m² cd/m²
- Display brightness (typical)
- 1100 cd/m² cd/m²
- Touchscreen
- Yes
- Touchscreen technology
- Projected capacitive system
- Viewable size, horizontal
- 34.5 cm cm
- Surface hardness
- 7H
- Panel type
- VA
- Display number of colours
- 16.2 million colours
- Display diagonal (metric)
- 39.5 cm cm
- Screen shape
- Flat
- Viewing angle, horizontal
- 178° °
- Horizontal scan range
- 31.5 - 67.5 kHz kHz
- Contrast ratio (typical)
- 800:1
- Response time
- 25 ms ms
- Maximum refresh rate
- 60 Hz Hz
- Pixel pitch
- 0.179 x 0.179 mm mm
- Native aspect ratio
- 16:9
- Display diagonal
- 39.6 cm (15.6") cm
- Viewable size, vertical
- 19.5 cm cm
- Viewing angle, vertical
- 178° °
- Digital horizontal frequency
- 31.5 - 67.5 kHz kHz
Design
- Product colour
- Black
- Market positioning
- Office
- Glass thickness
- 3.15 mm mm
- Front bezel colour
- Black
Weight & dimensions
- Weight (with stand)
- 3 kg kg
- Depth (with stand)
- 42 mm mm
- Height (with stand)
- 246 mm mm
- Depth (without stand)
- 42 mm mm
- Width (with stand)
- 398.5 mm mm
- Height (without stand)
- 246 mm mm
- Width (without stand)
- 398.5 mm mm
- Weight (without stand)
- 3 kg kg
Other features
- Packaging content

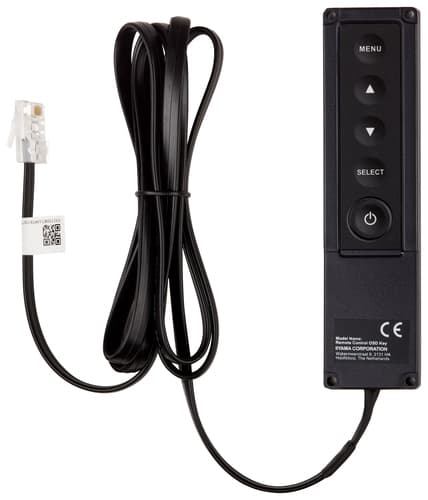

- AC adapter, External control pad (remote)
- Placement supported
- Indoor
- Brightness
- 935 cd/m² cd/m²
- International Protection (IP) code
- IP65
- Compatible operating systems
- All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
- Active display area (W x H)
- 345.2 x 194.6 mm mm
- User controls
- picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H. position, OSD V. position, touch switch, factory), option (reset, language, source select, display mode, fan control, presence sensor, ambient light sensor)
- Control panel
- Menu, Scroll up / Brightness, Scroll down / Contrast, Select, Power
- AC adapter included
- Yes
- Weight
- 3 kg kg
- Height
- 246 mm mm
- Touch method
- finger, glove (latex)
- Width
- 398.5 mm mm
- Depth
- 42 mm mm
- Compliance certificates
- CE, cULus, EAC, REACH, RoHS, UKCA, WEEE
- Mean time between failures (MTBF)
- 60000 h h
- Ethernet LAN (RJ-45) ports
- 1
- Certification
- CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA
Packaging content
- Cables included
- AC, USB, HDMI, DisplayPort
- Remote control included
- Yes
- Quick start guide
- Yes
Ports & interfaces
- Headphone out
- Yes
- VGA (D-Sub) ports quantity
- 1
- USB Touch port
- Yes
- DVI port
- No
- HDMI ports quantity
- 1
- HDMI
- Yes
- DisplayPorts quantity
- 1
- HDCP
- Yes
Network
- Ethernet LAN
- Yes
Ergonomics
- On Screen Display (OSD)
- Yes
- VESA mounting
- Yes
- Panel mounting interface
- 100 x 100 mm mm
- On Screen Display (OSD) languages
- Traditional Chinese, German, English, Spanish, French, Italian, Japanese
- Number of OSD languages
- 7
Packaging data
- Package width
- 485 mm mm
- Package depth
- 150 mm mm
- Package weight
- 4.62 kg kg
- Package height
- 370 mm mm
Power
- Energy consumption (SDR) per 1000 hours
- 10.5 kWh kWh
- Power consumption (standby)
- 0.6 W W
- Power consumption (off)
- 0.3 W W
- Power supply type
- External
- Energy efficiency scale
- A to G
- Energy efficiency class (SDR)
- E
- Energy efficiency class (HDR)
- Not available
- Power consumption (typical)
- 24 W W
- AC adapter output voltage
- 12 V V
Sustainability
- Sustainability certificates
- ErP
Operational conditions
- Operating temperature (T-T)
- -20 - 60 °C °C
Performance
- Palm rejection
- Yes
High-brightness
The display offers a brightness of up to 935 cd/m², so that the content displayed on the screen is clearly visible even in very bright environments.
Smart sensors
A proximity sensor turns the screen off after a while when it detects no one in the environment, an ambient light sensor adjusts the screen brightness when ambient light changes, and a temperature sensor linearly controls the fan speed, cooling the monitor when the temperature rises, resulting in energy savings and extends the durability of the product.
Environmental resistance
The monitor offers comprehensive protection against various ambient conditions. With UV resistance and IP65 protection, it is safeguarded against sunlight and resulting in dust and water resistance from the front. Additionally, it can operate reliably in temperatures ranging from -20˚C to 60˚C, making it capable of withstanding large temperature variations.
Anti-fingerprint coating
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.
