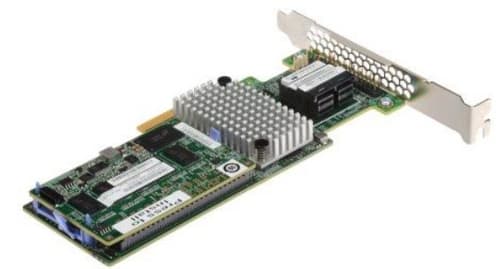

Lenovo ServeRAID M5210 - Storage controller (RAID) - 8 Channel - SATA 6Gb/s / SAS 12Gb/s - low profile - RAID 0, 1, 10 - PCIe 3.0 x8 - for System x3250 M6, x3300 M4, x35XX M4, x3650 M4, x3650 M4 HD, x3850 X6, x3950 X6
- Supported storage drive interfaces: SAS, Serial ATA
- Host interface: PCI Express x8
- RAID levels: 0, 1, 10
- 12 Gbit/s
- SSD support
Overview
Lenovo 46C9110 RAID controller PCI Express x8 3.0 12 Gbit/s
Specifications
System requirements
- Mac operating systems supported
- Yes
- Windows operating systems supported
- Yes
Operational conditions
- Operating relative humidity (H-H)
- 8 - 93% %
- Operating temperature (T-T)
- 5 - 40 °C °C
Weight & dimensions
- Width
- 69 mm mm
- Height
- 15 mm mm
- Package dimensions (WxDxH)
- 143 x 238 x 51 mm mm
- Depth
- 168 mm mm
- Package weight
- 320 g g
- Weight
- 99 g g
Ports & interfaces
- Host interface
- PCI Express x8
- PCI Express slots version
- 3.0
- Internal mini-SAS ports
- 2
- Supported storage drive interfaces
- SAS, Serial ATA
Performance
- Data transfer rate
- 12 Gbit/s Gbit/s
- RAID levels
- 0, 1, 10
- S.M.A.R.T. support
- Yes
- Certification
- UL, cUL, IEC60950, EMC, FCC, TUV, CE, VCCI, BSMI, C-tick, KC
- Compatible products
- Microsoft Windows Server 2008 R2 Microsoft Windows Server 2008, Datacenter x64 Edition Microsoft Windows Server 2008, Datacenter x86 Edition Microsoft Windows Server 2008, Enterprise x64 Edition Microsoft Windows Server 2008, Enterprise x86 Edition Microsoft Windows Server 2008, Web x64 Edition Microsoft Windows Server 2012 Microsoft Windows Server 2012 R2 Microsoft Windows Server 2016 Red Hat Enterprise Linux 5 Server with Xen x64 Edition Red Hat Enterprise Linux 5 Server x64 Edition Red Hat Enterprise Linux 6 Server Edition Red Hat Enterprise Linux 6 Server x64 Edition Red Hat Enterprise Linux 7 SUSE Enterprise Linux Server (SLES) 12 SUSE LINUX Enterprise Server 11 for AMD64/EM64T SUSE LINUX Enterprise Server 11 for x86 VMware vSphere 5.0 (ESXi) VMware vSphere 5.1 (ESXi) VMware vSphere 5.5 (ESXi) VMware vSphere 6.0 (ESXi)
- Memory clock speed
- 1866 MHz MHz
- SSD support
- Yes
- Internal memory type
- DDR3
Logistics data
- Harmonized System (HS) code
- 84733080
Other features
- PCI Card form factor
- Half-height (low-profile)
