Lenovo ThinkSmart Tiny Kit MTR
Manuf P/N: 12XH0008UK
APAXON#: 10450423
EAN: 198155216312
Lenovo ThinkSmart Tiny Kit W11IoT
Microsoft Teams
1Yr Premier Support Onsite
Weight: 5.12 KG
Microsoft Teams
1Yr Premier Support Onsite
Weight: 5.12 KG
- 10.1-inch touchscreen for easy navigation
- Image brightness of 340 cd/m² for clear visuals
- Anti-glare and anti-fingerprint features for a pristine display
- Multiple connectivity options including USB-C and HDMI
- Supports advanced networking standards like Wi-Fi 6E and Bluetooth 5.3
Stock1
Price £988.90
Quantity
|
Similar Products
Product Summary

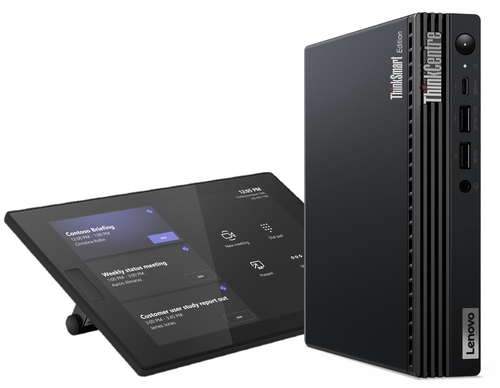

The Lenovo ThinkSmart Tiny Kit is designed for seamless video conferencing with a 10.1-inch touchscreen console featuring a native resolution of 1280 x 800. Enjoy crisp visuals with an image brightness of 340 cd/m² and an anti-glare screen that reduces reflections, making it suitable for various lighting conditions. The 10-point multi-touch capability allows for interactive engagement during meetings, while anti-fingerprint properties ensure a clean display at all times. This compact kit enhances productivity in modern workspaces.
Extended Specification
Processor
Processor family
Intel® Core™ i3
Processor manufacturer
Intel
Processor model
i3-13100T
Processor generation
Intel Core i3-13xxx
Processor cores
4
Processor threads
8
Processor boost frequency
4.2 GHz GHz
Performance cores
4
Efficient cores
0
Performance-core Max Turbo Frequency
4.2 GHz GHz
Performance-core base frequency
2.5 GHz GHz
Processor cache
12 MB MB
Processor cache type
Smart Cache
Processor base power
35 W W
Maximum turbo power
69 W W
Memory
Internal memory
16 GB GB
Maximum internal memory
16 GB GB
Internal memory type
DDR4-SDRAM
Memory layout (slots x size)
2 x 8 GB GB
Memory slots
2x SO-DIMM
Memory clock speed
3200 MHz MHz
Memory channels
Dual-channel
Storage
Total storage capacity
256 GB GB
Optical drive type
No
Storage media
SSD
Number of storage drives installed
1
Total SSDs capacity
256 GB GB
Number of SSDs installed
1
SSD capacity
256 GB GB
SSD interface
PCI Express 4.0
NVMe
Yes
SSD form factor
M.2
Graphics
Discrete graphics card
No
On-board graphics card
Yes
Discrete graphics card model
Not available
On-board graphics card model
Intel UHD Graphics 730
On-board GPU manufacturer
Intel
On-board graphics card family
Intel® UHD Graphics
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Ethernet LAN data rates
100,1000 Mbit/s Mbit/s
Cabling technology
10/100/1000Base-T(X)
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi standards
Wi-Fi 6E (802.11ax)
WLAN controller manufacturer
Intel
WLAN controller model
Intel Wi-Fi 6E AX211
Antenna type
2x2
Bluetooth
Yes
Bluetooth version
5.3

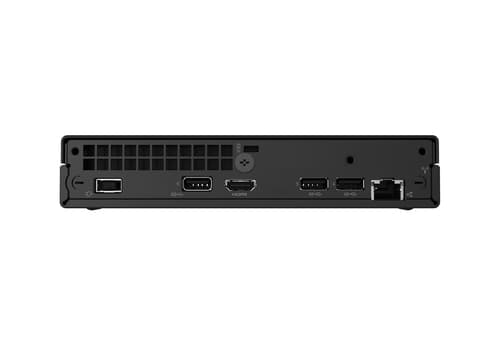

Ports & interfaces
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Thunderbolt 3 ports quantity
0
HDMI ports quantity
1
HDMI version
2.1
Ethernet LAN (RJ-45) ports
1
Combo headphone/mic port
Yes
Design
Chassis type
Mini PC
Product colour
Black
Colour name
Black
VESA mounting
Yes
Cable lock slot
Yes
Cable lock slot type
Kensington
Performance
Product type
Mini PC
Motherboard chipset
Intel Q670
Audio chip
Realtek ALC256-VB
Audio system
High Definition Audio
Password protection
Yes
Password protection type
BIOS, HDD, Power on, Supervisor
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2.0
Software
Operating system installed
Windows 11 IoT Enterprise
Operating system architecture
64-bit
Operating system language
English
Power
Power supply
90 W W
Power supply input voltage
100 - 240 V V
Power supply input frequency
50/60 Hz Hz
Operational conditions
Operating temperature (T-T)
5 - 35 °C °C
Storage temperature (T-T)
-40 - 60 °C °C
Operating relative humidity (H-H)
20 - 80% %
Storage relative humidity (H-H)
10 - 90% %
Operating altitude
0 - 3048 m m
Non-operating altitude
0 - 12192 m m
Weight & dimensions
Width
179 mm mm
Depth
182.9 mm mm
Height
36.5 mm mm
Weight
2.65 kg kg
Package width
313 mm mm
Package depth
242 mm mm
Package height
327 mm mm
Package weight
4.9 kg kg
Technical details
Box contents
HDMI Ingest Dongle
General
Localisation
English / United Kingdom
Device Type
Video conferencing kit
Enclosure Colour
Raven black
Kit Content
Touchscreen console, compute system
Display
Display included
Yes
Display diagonal
25.6 cm (10.1") cm
Display resolution
1280 x 800 pixels pixels
Native aspect ratio
16:10
Display brightness
340 cd/m² cd/m²
