This product is out of stock
We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

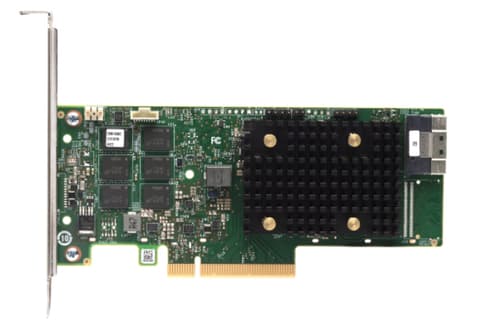

Lenovo ThinkSystem 940-16i - Storage controller (RAID) - 16 Channel - SATA / SAS 12Gb/s - RAID RAID 0, 1, 5, 6, 10, 50, JBOD, 60 - PCIe 4.0 x8 - for ThinkSystem SR630 V2, SR645, SR650 V2, SR665, ST650 V2
- Supported storage drive interfaces: SAS
- Host interface: PCI Express x8
- RAID levels: 0, 1, 5, 6, 10, 50, 60, JBOD
- 12 Gbit/s
- SSD support
- Number of devices supported: 16
Overview
Lenovo ThinkSystem RAID 940-16i RAID controller PCI Express x8 4.0 12 Gbit/s
Specifications
Ports & interfaces
- Supported storage drive interfaces
- SAS
- Host interface
- PCI Express x8
- PCI Express slots version
- 4.0
Performance
- RAID levels
- 0, 1, 5, 6, 10, 50, 60, JBOD
- RAID Level Migration
- Yes
- Data transfer rate
- 12 Gbit/s
- SSD support
- Yes
- Internal memory
- 8000 MB
- Number of devices supported
- 16
- Hot-swap
- Yes
- Certification
- USA (FCC 47 CFR part 15 Subpart B, class B) Canada (ICES -003, Class B) Taiwan (CNS 13438) Japan (VCCI V-3) Australia/New Zealand (AS/NZS CISPR 22) Korea (RRA no 2013-24 & 25) Europe (EN55022/EN55024) Safety: EN/ IEC/ UL 60950 RoHS WEEE
- Compatible products
- SR665 (7D2W/7D2V), SR645 (7D2Y/7D2X)
System requirements
- Compatible operating systems
- Microsoft Windows Server 2016 Microsoft Windows Server 2019 Red Hat Enterprise Linux 8.1 SUSE Linux Enterprise Server 12 SP5 SUSE Linux Enterprise Server 12 SP5 with Xen SUSE Linux Enterprise Server 15 SP1 SUSE Linux Enterprise Server 15 SP1 with Xen VMware vSphere Hypervisor (ESXi) 6.7 U3 VMware vSphere Hypervisor (ESXi) 7.0
Operational conditions
- Operating temperature (T-T)
- 10 - 55 °C
- Operating relative humidity (H-H)
- 20 - 80%
- Storage relative humidity (H-H)
- 5 - 95%
Logistics data
- Harmonized System (HS) code
- 84733080
