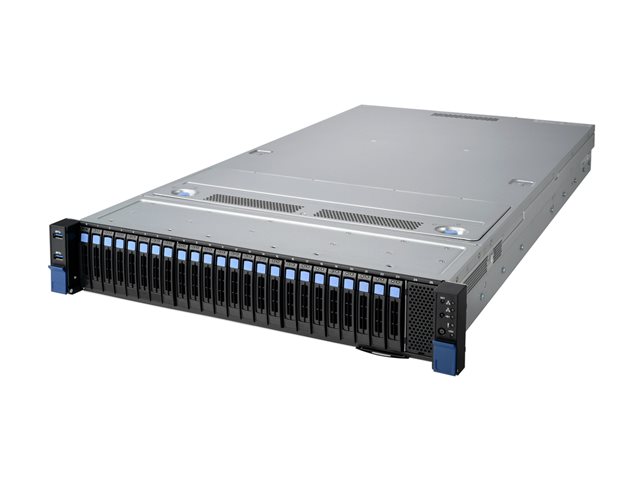

MiTAC B8261T85E24HR-2T - rack-mountable no CPU - SSD
Server
rack-mountable 2U
2-way
no CPU
NVMe
hot-swap 2.5" bay(s)
SSD
AST2600
Gigabit Ethernet, 10 Gigabit Ethernet
no OS
monitor: none
Weight: 33.22 KG
- Hot-swap design for all 24 server storage bays
- High-performance NVMe interface for speedy data access
- 2700 W power supply with redundancy for reliability
- Support for up to 2 processors for enhanced scalability
- Advanced remote management features with IPMI 2.0
Overview
The Mio MiTAC B8261T85E24HR-2T is a rack-mountable server designed for data centers with demands for performance and reliability. Featuring 24 hot-swap bays, this server allows for easy maintenance and upgrades, ensuring minimal downtime. It supports PCIe NVMe SSDs, enabling fast data access and transfer speeds. With a robust power supply of 2700 W and built-in redundancy, the server ensures continuous operation even in the event of power supply failure. Operating within a temperature range of 10°C to 35°C and capable of handling high humidity levels, this server is engineered to operate in various environments. It comes equipped with essential connectivity options, including dual 10 Gigabit Ethernet ports and multiple USB interfaces. The motherboard is designed for scalability, supporting up to two processors, while the DDR5 SDRAM technology allows for memory speeds of up to 6000 MHz, meeting the needs of demanding applications.
Main Specifications
- Product Description
- MiTAC B8261T85E24HR-2T - rack-mountable no CPU - SSD
- Type
- Server - rack-mountable
- Height (Rack Units)
- 2U
- Server Scalability
- 2-way
- Processor
- No CPU
- Processor Socket
- Socket SP5
- RAM
- 6144 GB (max) - DDR5 SDRAM
- Server Storage Bays
- Hot-swap 2.5"
- Hard Drive
- SSD (hot-swap) - PCI Express (NVMe) / U.2
- Optical Storage
- No optical drive
- Graphics Controller
- ASPEED AST2600
- Networking
- 10GbE, 1GbE
- Power Redundancy
- Yes
- OS Provided
- No operating system
- Dimensions (WxDxH)
- 44.8 cm x 85 cm x 8.7 cm
Associated Documents
Product Features
Efficient rack-mountable design
The Mio MiTAC B8261T85E24HR-2T features a rack-mountable chassis that optimizes space in server rooms, allowing for organized installations.
Robust memory capabilities
Equipped with 24 DDR5 SDRAM slots, this server supports high-speed memory of up to 6000 MHz, providing efficient performance for demanding tasks.
Comprehensive connectivity options
Dual 10 Gigabit Ethernet ports alongside multiple USB and VGA connections ensure flexible connectivity for various networking and peripheral needs.
Advanced temperature management
Temperature and voltage sensors monitor system health to maintain performance, helping to prevent overheating and hardware failure.
Future-ready storage flexibility
Supporting SSDs with PCIe NVMe interface allows for quick data handling, making this server suitable for enterprise applications that require swift data processing.
Specifications
General
- Sensors
- Temperature sensor, voltage sensor
- Built-in Devices
- 6 x hot-swap fans
- Type
- Server
- Internal Bays Qty
- 24
- Front Accessible Bays Qty
- 24
- Hot-Swap Bays Qty
- 24
- Server Scalability
- 2-way
- Product Form Factor
- Rack-mountable - 2U
Connections & Expansion
- Slots
- 4 PCIe 5.0 x16
- Interfaces
- 4 x USB 3.2 Gen 1 (2 front, 2 rear), 1 x VGA - DB-15, 2 x LAN (10Gigabit Ethernet) - RJ-45, 1 x LAN (Gigabit Ethernet) - RJ-45
RAM
- Effective Memory Speed
- 6000 MHz
- Rated Memory Speed
- 6000 MHz
- Slots
- 24 (Total) / 24 (empty)
- Technology
- DDR5 SDRAM
- Installed Size
- 6144 GB (max)
Networking
- Remote Management Protocol
- IPMI 2.0
- Ethernet Ports
- 2 x 10 Gigabit Ethernet, 1 x Gigabit Ethernet
- Remote Management Controller
- Aspeed AST2600
- Ethernet Controller
- Realtek RTL8211F
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Miscellaneous
- Compliant Standards
- FCC SDOC Class A, DOC-A, RoHS
Power
- Device Type
- Power supply
- Power Redundancy
- Yes
- Voltage Required
- AC 100-127/200-240 V
- Power Provided
- 2700 Watt
- Power Redundancy Scheme
- 1+1
- 80 PLUS Certification
- 80 PLUS Titanium
Environmental Parameters
- Min Operating Temperature
- 10 °C
- Max Operating Temperature
- 35 °C
- Humidity Range Operating
- 90% (non-condensing)
Optical Storage
- Type
- No optical drive
Operating System / Software
- OS Provided
- No operating system
Monitor
- Monitor Type
- None.
Graphics Controller
- Video Interfaces
- VGA
- Graphics Processor
- ASPEED AST2600
Hard drive
- Type
- SSD - hot-swap
- Interface Type
- PCI Express (NVMe) / U.2
Weight & dimensions
- Width
- 44.8 cm
- Height
- 8.7 cm
- Depth
- 85 cm
Processor / Chipset
- Max CPU Qty
- 2
- CPU Upgradability
- Upgradable
- CPU
- No CPU
- CPU Socket
- Socket SP5
- Motherboard Name
- Tyan S8261GM2NE-2T
